SDO HMI 2011-08-31 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.64 | 282.57 | 21.34 | 141.55 | 13.93 | 291.45 | -5.15 | 36.20 | 0.1477 | -510.1 | -318.1 | |
|
previous
or next observation for the same group /

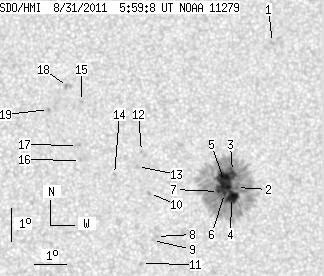

back to the solar disc SDO HMI 2011-08-31 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.06 | 0.00 | 1.04 | 18.24 | 293.05 | -3.55 | 17.03 | 0.2018 | 848.0 | 694.7 | |
| 1.34 | 261.17 | 0.67 | 130.71 | 13.79 | 292.00 | -4.60 | 33.99 | 0.1399 | -819.9 | -417.2 | |
| 3.76 | -2.00 | 1.88 | -2.00 | 14.27 | 291.87 | -4.73 | 32.84 | 0.1481 | -1128.2 | 999999 | |
| 12.01 | -2.00 | 6.00 | -2.00 | 13.48 | 291.85 | -4.75 | 36.15 | 0.1371 | -1396.3 | 999999 | |
| 23.20 | -2.00 | 11.62 | -2.00 | 13.97 | 291.62 | -4.98 | 35.36 | 0.1461 | -1381.2 | 999999 | |
| 1.08 | -2.00 | 0.54 | -2.00 | 13.60 | 291.63 | -4.97 | 36.86 | 0.1410 | -1416.7 | 999999 | |
| 1.25 | -2.00 | 0.63 | -2.00 | 13.66 | 291.44 | -5.16 | 37.62 | 0.1438 | -1251.8 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 12.27 | 289.54 | -7.06 | 53.28 | 0.1505 | 894.0 | 653.1 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 12.14 | 289.42 | -7.18 | 54.41 | 0.1510 | 750.0 | 582.8 | |
| 0.00 | 1.52 | 0.00 | 0.77 | 13.57 | 289.28 | -7.32 | 47.79 | 0.1679 | 944.0 | 747.9 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 11.44 | 289.09 | -7.51 | 59.53 | 0.1492 | 997.0 | 781.6 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 14.85 | 288.99 | -7.61 | 43.59 | 0.1865 | 853.0 | 648.0 | |
| 0.00 | 2.06 | 0.00 | 1.04 | 14.39 | 288.88 | -7.72 | 45.80 | 0.1823 | 829.0 | 595.3 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 14.13 | 288.16 | -8.44 | 49.31 | 0.1885 | 797.0 | 571.5 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 16.34 | 287.02 | -9.58 | 44.79 | 0.2277 | 937.0 | 733.9 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 14.54 | 287.07 | -9.53 | 51.01 | 0.2071 | 894.0 | 723.4 | |
| 0.00 | 2.60 | 0.00 | 1.32 | 14.99 | 286.95 | -9.64 | 49.62 | 0.2134 | 900.0 | 745.6 | |
| 0.00 | 3.94 | 0.00 | 2.01 | 16.79 | 286.55 | -10.05 | 44.71 | 0.2386 | 774.0 | 689.0 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 16.07 | 285.98 | -10.62 | 48.51 | 0.2375 | 717.0 | 636.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
