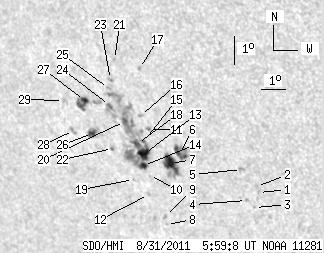

SDO HMI 2011-08-31 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.81 | 207.23 | 40.83 | 149.10 | -20.19 | 258.38 | -38.22 | 126.83 | 0.7277 | 289.9 | -131.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-31 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.98 | -21.50 | 262.78 | -33.82 | 131.63 | 0.6951 | 737.0 | 590.9 | |
| 0.00 | 1.43 | 0.00 | 0.98 | -21.30 | 262.75 | -33.85 | 131.37 | 0.6938 | 186.0 | 160.9 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -22.04 | 262.47 | -34.13 | 132.00 | 0.7020 | 568.0 | 408.7 | |
| 0.00 | 1.34 | 0.00 | 0.93 | -21.82 | 262.22 | -34.38 | 131.54 | 0.7027 | 757.0 | 581.0 | |
| 0.00 | 2.87 | 0.00 | 1.97 | -20.75 | 262.31 | -34.29 | 130.38 | 0.6939 | 812.0 | 623.4 | |
| 7.26 | 14.42 | 5.12 | 10.16 | -20.39 | 259.93 | -36.66 | 128.15 | 0.7140 | 870.2 | 687.8 | |
| 15.95 | 24.82 | 11.37 | 17.70 | -20.77 | 259.46 | -37.14 | 128.25 | 0.7211 | 787.6 | 248.8 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -22.93 | 258.63 | -37.97 | 130.11 | 0.7432 | 554.0 | 495.7 | |
| 0.00 | 1.97 | 0.00 | 1.45 | -22.65 | 258.68 | -37.92 | 129.83 | 0.7408 | 686.0 | 490.6 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -21.26 | 258.45 | -38.15 | 128.10 | 0.7338 | 376.0 | 315.9 | |
| 0.90 | 2.24 | 0.64 | 1.59 | -19.67 | 258.88 | -37.72 | 126.54 | 0.7194 | 631.2 | 551.2 | |
| 0.00 | 1.88 | 0.00 | 1.38 | -21.93 | 258.20 | -38.40 | 128.69 | 0.7404 | 433.0 | 271.6 | |
| 8.87 | 102.94 | 6.40 | 74.15 | -20.51 | 258.47 | -38.13 | 127.25 | 0.7287 | 798.9 | -173.2 | |
| 4.48 | -13.00 | 3.25 | -13.00 | -20.93 | 258.31 | -38.29 | 127.62 | 0.7330 | 560.8 | 999999 | |
| 1.25 | -13.00 | 0.90 | -13.00 | -20.10 | 258.55 | -38.05 | 126.82 | 0.7253 | 563.0 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.21 | -19.21 | 258.68 | -37.92 | 125.87 | 0.7184 | 609.0 | 523.1 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -17.62 | 259.05 | -37.55 | 124.20 | 0.7046 | -737.0 | -642.1 | |
| 4.12 | -13.00 | 2.97 | -13.00 | -20.19 | 258.28 | -38.32 | 126.74 | 0.7285 | 427.8 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -21.46 | 257.73 | -38.87 | 127.82 | 0.7418 | 381.0 | 287.7 | |
| 3.67 | -13.00 | 2.64 | -13.00 | -19.47 | 257.95 | -38.65 | 125.68 | 0.7272 | -448.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -17.40 | 258.10 | -38.50 | 123.28 | 0.7129 | -674.0 | -592.5 | |
| 0.00 | 1.34 | 0.00 | 0.99 | -20.45 | 257.16 | -39.44 | 126.29 | 0.7407 | -382.0 | -523.0 | |
| 0.00 | 1.88 | 0.00 | 1.34 | -18.09 | 257.75 | -38.84 | 123.89 | 0.7206 | -715.0 | -657.4 | |
| 2.60 | 10.93 | 1.87 | 7.89 | -18.98 | 257.47 | -39.13 | 124.77 | 0.7288 | -707.9 | -365.7 | |
| 0.00 | 1.61 | 0.00 | 1.15 | -18.40 | 257.59 | -39.01 | 124.16 | 0.7241 | -843.0 | -747.9 | |
| 4.75 | 8.51 | 3.51 | 6.29 | -20.00 | 256.46 | -40.14 | 125.31 | 0.7447 | -813.2 | -699.5 | |
| 2.96 | 15.59 | 2.16 | 11.41 | -18.90 | 256.45 | -40.15 | 124.01 | 0.7382 | -895.5 | -633.3 | |
| 0.00 | 3.14 | 0.00 | 2.35 | -19.97 | 255.66 | -40.94 | 124.77 | 0.7520 | -394.0 | -476.2 | |
| 0.00 | 1.79 | 0.00 | 1.33 | -18.97 | 255.54 | -41.06 | 123.54 | 0.7475 | -529.0 | -469.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
