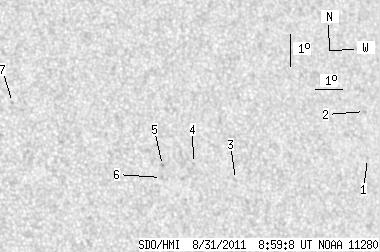

SDO HMI 2011-08-31 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.24 | 0.00 | 4.89 | 17.58 | 327.12 | 32.17 | 291.71 | 0.5467 | 371.6 | 253.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-31 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.51 | 16.97 | 332.54 | 37.58 | 288.47 | 0.6173 | -544.0 | -438.3 | |
| 0.00 | 1.52 | 0.00 | 0.96 | 18.41 | 332.77 | 37.82 | 290.69 | 0.6241 | -587.0 | -480.1 | |
| 0.00 | 1.43 | 0.00 | 0.85 | 16.68 | 327.37 | 32.41 | 289.69 | 0.5474 | 663.0 | 477.2 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 17.26 | 325.91 | 30.96 | 291.37 | 0.5296 | 656.0 | 484.3 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 17.27 | 324.77 | 29.82 | 291.92 | 0.5139 | 827.0 | 686.2 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 16.91 | 324.67 | 29.72 | 291.29 | 0.5110 | 766.0 | 590.5 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 19.50 | 319.76 | 24.81 | 299.57 | 0.4566 | 820.0 | 598.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
