SDO HMI 2011-08-31 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.62 | 154.35 | 12.99 | 78.28 | 18.36 | 299.63 | 5.23 | 335.92 | 0.2145 | -1092.1 | -473.5 | |
|
previous
or next observation for the same group /

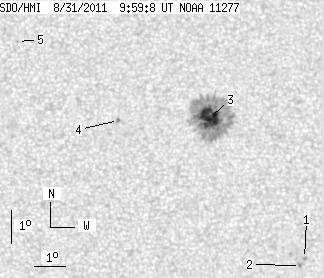

back to the solar disc SDO HMI 2011-08-31 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.81 | 14.10 | 302.50 | 8.09 | 311.73 | 0.1838 | -958.0 | -754.6 | |
| 0.00 | 2.42 | 0.00 | 1.22 | 13.88 | 302.37 | 7.96 | 311.30 | 0.1798 | -1087.0 | -845.6 | |
| 25.62 | 147.54 | 12.99 | 74.84 | 18.46 | 299.63 | 5.23 | 336.24 | 0.2154 | -1266.6 | -467.3 | |
| 0.00 | 1.79 | 0.00 | 0.91 | 18.39 | 296.72 | 2.32 | 348.86 | 0.1993 | -995.0 | -781.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 20.84 | 293.49 | -0.92 | 3.63 | 0.2379 | 939.0 | 677.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
