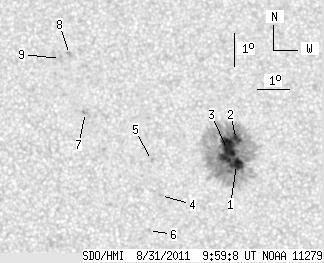

SDO HMI 2011-08-31 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.80 | 267.85 | 21.86 | 133.79 | 13.88 | 291.51 | -2.90 | 22.43 | 0.1279 | -839.4 | -359.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-31 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.03 | 256.47 | 5.00 | 128.05 | 13.43 | 291.87 | -2.53 | 21.50 | 0.1178 | -1340.4 | -417.0 | |
| 6.45 | -1.00 | 3.22 | -1.00 | 14.19 | 291.87 | -2.54 | 19.36 | 0.1303 | -1187.2 | 999999 | |
| 27.32 | -1.00 | 13.64 | -1.00 | 13.88 | 291.59 | -2.82 | 22.19 | 0.1270 | -1324.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 12.47 | 289.52 | -4.88 | 41.87 | 0.1251 | 910.0 | 704.1 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 13.53 | 289.22 | -5.19 | 38.31 | 0.1424 | 829.0 | 663.3 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 11.40 | 289.17 | -5.24 | 50.30 | 0.1168 | 842.0 | 648.0 | |
| 0.00 | 2.33 | 0.00 | 1.17 | 14.96 | 287.11 | -7.30 | 41.94 | 0.1845 | 972.0 | 818.6 | |
| 0.00 | 3.22 | 0.00 | 1.64 | 16.73 | 286.53 | -7.87 | 38.11 | 0.2135 | 833.0 | 716.2 | |
| 0.00 | 2.69 | 0.00 | 1.36 | 16.60 | 286.25 | -8.15 | 39.46 | 0.2148 | 824.0 | 644.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
