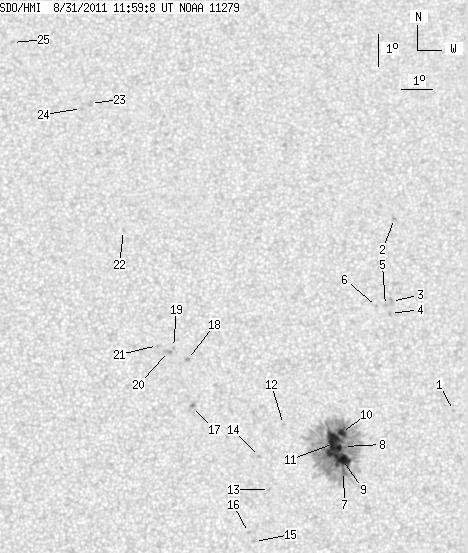

SDO HMI 2011-08-31 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.62 | 291.83 | 24.75 | 145.90 | 14.20 | 291.35 | -1.95 | 11.11 | 0.1286 | -364.5 | -270.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-31 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.58 | 14.92 | 295.33 | 2.02 | 345.81 | 0.1398 | -778.0 | -541.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 20.84 | 293.49 | 0.18 | 359.28 | 0.2374 | 878.0 | 684.5 | |
| 0.00 | 3.31 | 0.00 | 1.67 | 18.26 | 293.39 | 0.08 | 359.59 | 0.1934 | 693.0 | 661.0 | |
| 0.00 | 1.88 | 0.00 | 0.95 | 17.89 | 293.36 | 0.05 | 359.74 | 0.1870 | 823.0 | 757.3 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 18.14 | 293.20 | -0.11 | 0.54 | 0.1912 | 916.0 | 699.3 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 18.11 | 292.91 | -0.39 | 1.97 | 0.1908 | 736.0 | 564.8 | |
| 2.24 | 259.80 | 1.12 | 129.62 | 13.06 | 291.90 | -1.41 | 13.13 | 0.1060 | -805.4 | -407.6 | |
| 0.63 | -7.00 | 0.31 | -7.00 | 13.82 | 291.89 | -1.41 | 11.68 | 0.1189 | -946.7 | 999999 | |
| 15.85 | -7.00 | 7.90 | -7.00 | 13.42 | 291.86 | -1.44 | 12.66 | 0.1123 | -1300.0 | 999999 | |
| 6.27 | -7.00 | 3.13 | -7.00 | 14.25 | 291.83 | -1.48 | 11.47 | 0.1264 | -1121.7 | 999999 | |
| 24.63 | -7.00 | 12.29 | -7.00 | 13.91 | 291.58 | -1.73 | 13.98 | 0.1216 | -1248.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 14.48 | 290.01 | -3.29 | 23.57 | 0.1398 | 713.0 | 409.8 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 12.50 | 289.61 | -3.70 | 34.07 | 0.1130 | 716.0 | 557.7 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 13.50 | 289.28 | -4.03 | 31.69 | 0.1306 | 770.0 | 596.5 | |
| 0.00 | 1.43 | 0.00 | 0.71 | 10.92 | 289.16 | -4.14 | 47.18 | 0.0972 | 843.0 | 627.1 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 11.19 | 288.97 | -4.33 | 46.43 | 0.1028 | 839.0 | 673.5 | |
| 0.00 | 3.40 | 0.00 | 1.71 | 14.97 | 287.11 | -6.19 | 37.36 | 0.1725 | 867.0 | 717.0 | |
| 0.00 | 1.79 | 0.00 | 0.90 | 16.44 | 286.94 | -6.37 | 33.30 | 0.1945 | 952.0 | 762.0 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 16.80 | 286.48 | -6.82 | 34.07 | 0.2040 | 827.0 | 632.3 | |
| 0.00 | 2.15 | 0.00 | 1.09 | 16.68 | 286.33 | -6.98 | 35.02 | 0.2037 | 906.0 | 778.9 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 16.85 | 285.97 | -7.33 | 35.82 | 0.2097 | 595.0 | 504.5 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 20.39 | 284.71 | -8.60 | 31.36 | 0.2705 | 788.0 | 620.7 | |
| 0.00 | 2.42 | 0.00 | 1.27 | 24.35 | 283.35 | -9.96 | 27.94 | 0.3378 | 883.0 | 665.5 | |
| 0.00 | 1.61 | 0.00 | 0.85 | 24.18 | 283.06 | -10.25 | 28.87 | 0.3377 | 820.0 | 638.4 | |
| 0.00 | 1.61 | 0.00 | 0.87 | 26.23 | 280.50 | -12.80 | 31.12 | 0.3863 | 802.0 | 620.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
