SDO HMI 2011-08-31 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.67 | 261.90 | 55.85 | 178.79 | -20.16 | 258.48 | -34.28 | 129.71 | 0.6896 | 60.3 | -136.9 | |
|
previous
or next observation for the same group /

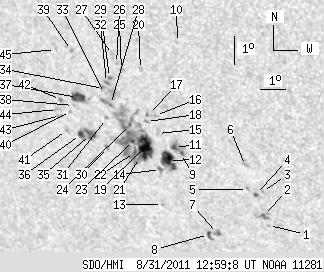

back to the solar disc SDO HMI 2011-08-31 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.30 | -22.75 | 262.79 | -29.96 | 136.38 | 0.6700 | 576.0 | 505.0 | |
| 1.52 | 7.43 | 1.01 | 4.94 | -22.41 | 262.69 | -30.07 | 135.90 | 0.6680 | 714.9 | 555.0 | |
| 0.00 | 1.07 | 0.00 | 0.71 | -21.57 | 262.84 | -29.91 | 135.10 | 0.6593 | 744.0 | 580.1 | |
| 1.43 | 2.15 | 0.95 | 1.42 | -21.69 | 262.55 | -30.21 | 134.97 | 0.6630 | 669.8 | 623.9 | |
| 0.00 | 1.34 | 0.00 | 0.89 | -21.54 | 262.29 | -30.47 | 134.55 | 0.6642 | 661.0 | 484.6 | |
| 0.00 | 2.24 | 0.00 | 1.47 | -20.71 | 262.40 | -30.36 | 133.69 | 0.6561 | 816.0 | 657.2 | |
| 0.00 | 3.31 | 0.00 | 2.27 | -23.17 | 260.73 | -32.03 | 135.00 | 0.6919 | -835.0 | -696.4 | |
| 2.33 | 3.76 | 1.60 | 2.59 | -23.23 | 260.36 | -32.40 | 134.75 | 0.6956 | -550.0 | -445.6 | |
| 1.34 | 12.27 | 0.90 | 8.23 | -20.47 | 260.02 | -32.74 | 131.31 | 0.6768 | 852.3 | 668.6 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -16.71 | 260.68 | -32.08 | 127.23 | 0.6411 | -614.0 | -531.1 | |
| 2.33 | -9.00 | 1.56 | -9.00 | -20.28 | 259.80 | -32.96 | 130.90 | 0.6775 | 947.5 | 999999 | |
| 15.49 | 19.61 | 10.50 | 13.29 | -20.75 | 259.45 | -33.31 | 131.17 | 0.6844 | 766.5 | 497.8 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -22.30 | 258.81 | -33.95 | 132.43 | 0.7023 | 413.0 | 357.3 | |
| 0.81 | 3.04 | 0.55 | 2.08 | -21.09 | 259.05 | -33.70 | 131.23 | 0.6908 | 520.1 | 381.2 | |
| 0.00 | 1.16 | 0.00 | 0.78 | -19.85 | 259.25 | -33.51 | 129.93 | 0.6795 | 715.0 | 615.2 | |
| 0.00 | 1.16 | 0.00 | 0.78 | -19.24 | 259.31 | -33.44 | 129.25 | 0.6743 | 648.0 | 654.9 | |
| 0.00 | 2.51 | 0.00 | 1.68 | -19.22 | 259.05 | -33.71 | 129.02 | 0.6768 | 611.0 | 612.5 | |
| 0.00 | 1.52 | 0.00 | 1.03 | -19.47 | 258.91 | -33.85 | 129.21 | 0.6800 | 683.0 | 519.0 | |
| 28.30 | 121.15 | 19.29 | 82.80 | -20.37 | 258.61 | -34.15 | 130.04 | 0.6896 | 694.0 | -123.9 | |
| 0.00 | 2.51 | 0.00 | 1.66 | -17.72 | 259.08 | -33.68 | 127.19 | 0.6654 | -725.0 | -501.5 | |
| 0.63 | -19.00 | 0.43 | -19.00 | -20.73 | 258.32 | -34.43 | 130.23 | 0.6950 | -113.9 | 999999 | |
| 2.51 | -19.00 | 1.72 | -19.00 | -20.57 | 258.17 | -34.59 | 129.93 | 0.6954 | -331.9 | 999999 | |
| 0.45 | -19.00 | 0.31 | -19.00 | -20.16 | 258.23 | -34.52 | 129.49 | 0.6917 | -199.8 | 999999 | |
| 0.81 | -19.00 | 0.55 | -19.00 | -19.62 | 258.25 | -34.51 | 128.86 | 0.6876 | 331.1 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.02 | -17.78 | 258.33 | -34.42 | 126.68 | 0.6735 | -772.0 | -636.2 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -17.59 | 258.18 | -34.58 | 126.32 | 0.6737 | -849.0 | -659.9 | |
| 0.00 | 1.52 | 0.00 | 1.02 | -17.30 | 258.09 | -34.67 | 125.89 | 0.6726 | -706.0 | -610.4 | |
| 0.90 | 16.48 | 0.61 | 11.20 | -19.00 | 257.62 | -35.14 | 127.62 | 0.6893 | -670.4 | -565.7 | |
| 1.52 | 1.88 | 1.03 | 1.27 | -18.08 | 257.80 | -34.96 | 126.64 | 0.6811 | -772.8 | -627.8 | |
| 0.00 | 2.24 | 0.00 | 1.56 | -20.48 | 257.12 | -35.64 | 129.01 | 0.7047 | -407.0 | -461.4 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -19.49 | 257.34 | -35.41 | 128.00 | 0.6956 | -541.0 | -446.9 | |
| 0.00 | 2.15 | 0.00 | 1.46 | -18.26 | 257.64 | -35.12 | 126.74 | 0.6840 | -739.0 | -693.4 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -18.64 | 257.47 | -35.28 | 127.08 | 0.6883 | -512.0 | -497.6 | |
| 0.00 | 2.06 | 0.00 | 1.40 | -18.47 | 257.47 | -35.28 | 126.87 | 0.6872 | -749.0 | -664.1 | |
| 7.34 | 15.85 | 5.13 | 11.10 | -20.09 | 256.55 | -36.21 | 128.12 | 0.7075 | -879.5 | -627.0 | |
| 3.04 | -35.00 | 2.14 | -35.00 | -20.12 | 256.14 | -36.62 | 127.86 | 0.7117 | -681.9 | 999999 | |
| 9.76 | 14.06 | 6.76 | 9.72 | -18.86 | 256.35 | -36.41 | 126.51 | 0.7011 | -783.5 | -588.1 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -19.15 | 256.12 | -36.64 | 126.68 | 0.7053 | -606.0 | -590.4 | |
| 0.00 | 1.70 | 0.00 | 1.16 | -17.29 | 256.49 | -36.26 | 124.69 | 0.6892 | -809.0 | -586.5 | |
| 0.00 | 1.25 | 0.00 | 0.88 | -19.36 | 255.94 | -36.82 | 126.81 | 0.7085 | -504.0 | -495.3 | |
| 0.00 | 1.52 | 0.00 | 1.08 | -20.03 | 255.60 | -37.16 | 127.36 | 0.7163 | -554.0 | -444.3 | |
| 1.16 | 1.70 | 0.81 | 1.19 | -18.98 | 255.64 | -37.12 | 126.14 | 0.7090 | -466.9 | -511.7 | |
| 0.00 | 2.24 | 0.00 | 1.58 | -19.53 | 255.49 | -37.27 | 126.69 | 0.7140 | -520.0 | -436.1 | |
| 0.00 | 2.78 | 0.00 | 1.96 | -19.34 | 255.42 | -37.33 | 126.41 | 0.7134 | -565.0 | -483.7 | |
| 0.00 | 1.16 | 0.00 | 0.80 | -17.30 | 255.86 | -36.90 | 124.25 | 0.6958 | -526.0 | -456.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
