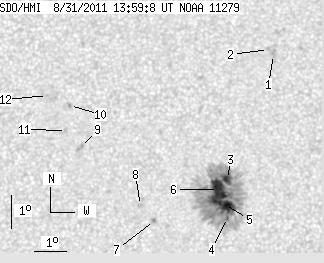

SDO HMI 2011-08-31 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.61 | 252.37 | 21.75 | 125.93 | 13.91 | 291.57 | -0.64 | 5.01 | 0.1192 | -686.0 | -359.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-31 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.04 | 0.00 | 1.54 | 18.04 | 293.34 | 1.13 | 354.31 | 0.1906 | 813.0 | 713.2 | |
| 0.00 | 2.15 | 0.00 | 1.08 | 18.20 | 293.18 | 0.97 | 355.17 | 0.1930 | 789.0 | 599.2 | |
| 6.63 | 235.55 | 3.31 | 117.46 | 14.22 | 291.88 | -0.32 | 2.56 | 0.1234 | -1108.7 | -454.2 | |
| 1.52 | -3.00 | 0.76 | -3.00 | 13.06 | 291.88 | -0.32 | 3.06 | 0.1033 | -817.1 | 999999 | |
| 16.03 | -3.00 | 7.99 | -3.00 | 13.46 | 291.79 | -0.42 | 3.69 | 0.1103 | -1309.8 | 999999 | |
| 19.43 | -3.00 | 9.69 | -3.00 | 13.91 | 291.60 | -0.60 | 4.98 | 0.1185 | -1284.3 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 12.96 | 289.62 | -2.59 | 23.53 | 0.1108 | 1043.0 | 886.4 | |
| 0.00 | 2.42 | 0.00 | 1.21 | 13.42 | 289.18 | -3.03 | 25.24 | 0.1211 | 720.0 | 625.2 | |
| 0.00 | 3.58 | 0.00 | 1.80 | 15.17 | 287.27 | -4.94 | 30.75 | 0.1632 | 978.0 | 779.3 | |
| 0.00 | 1.88 | 0.00 | 0.95 | 16.45 | 286.89 | -5.32 | 28.78 | 0.1855 | 946.0 | 726.9 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 15.68 | 286.81 | -5.39 | 31.33 | 0.1748 | 702.0 | 695.1 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 16.75 | 286.18 | -6.03 | 31.03 | 0.1959 | 802.0 | 674.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
