SDO HMI 2011-08-31 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.54 | 277.06 | 51.91 | 187.78 | -20.24 | 258.60 | -33.61 | 130.34 | 0.6838 | 65.1 | -67.8 | |
|
previous
or next observation for the same group /

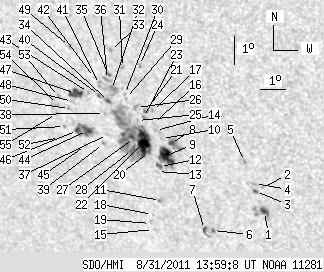

back to the solar disc SDO HMI 2011-08-31 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.74 | 12.35 | 3.13 | 8.16 | -22.40 | 262.78 | -29.42 | 136.50 | 0.6621 | 729.6 | 339.2 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -21.56 | 262.90 | -29.31 | 135.66 | 0.6536 | 639.0 | 537.8 | |
| 1.25 | 1.88 | 0.82 | 1.23 | -21.72 | 262.60 | -29.60 | 135.56 | 0.6577 | 707.6 | 688.3 | |
| 0.00 | 2.15 | 0.00 | 1.41 | -21.45 | 262.63 | -29.58 | 135.27 | 0.6551 | 677.0 | 475.4 | |
| 0.00 | 1.97 | 0.00 | 1.28 | -20.71 | 262.42 | -29.79 | 134.21 | 0.6506 | 789.0 | 639.5 | |
| 0.00 | 1.70 | 0.00 | 1.16 | -23.21 | 260.60 | -31.61 | 135.41 | 0.6885 | -832.0 | -712.6 | |
| 2.06 | 5.91 | 1.41 | 4.04 | -23.20 | 260.29 | -31.92 | 135.13 | 0.6911 | -617.0 | -508.5 | |
| 2.51 | 10.92 | 1.67 | 7.28 | -20.28 | 259.71 | -32.49 | 131.30 | 0.6730 | 864.2 | 824.5 | |
| 14.68 | 24.53 | 9.88 | 16.52 | -20.71 | 259.46 | -32.75 | 131.58 | 0.6788 | 783.1 | 437.9 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -20.13 | 259.40 | -32.80 | 130.86 | 0.6748 | 591.0 | 514.7 | |
| 0.00 | 2.51 | 0.00 | 1.73 | -22.30 | 258.81 | -33.39 | 132.88 | 0.6972 | 509.0 | 310.4 | |
| 2.42 | 2.95 | 1.64 | 2.00 | -21.11 | 259.09 | -33.12 | 131.74 | 0.6854 | 400.5 | 396.7 | |
| 0.00 | 1.34 | 0.00 | 0.91 | -21.29 | 258.96 | -33.24 | 131.85 | 0.6880 | 409.0 | 332.2 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -19.88 | 259.23 | -32.97 | 130.41 | 0.6745 | 740.0 | 629.1 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -23.34 | 258.24 | -33.97 | 133.58 | 0.7104 | 467.0 | 417.6 | |
| 0.00 | 1.43 | 0.00 | 0.96 | -19.64 | 259.21 | -32.99 | 130.11 | 0.6729 | 312.0 | 335.8 | |
| 0.00 | 1.07 | 0.00 | 0.71 | -19.20 | 259.27 | -32.93 | 129.63 | 0.6689 | 759.0 | 629.1 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -22.82 | 258.35 | -33.85 | 133.08 | 0.7053 | 486.0 | 386.3 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -23.14 | 258.18 | -34.03 | 133.31 | 0.7094 | 562.0 | 551.3 | |
| 1.88 | 114.86 | 1.27 | 77.97 | -20.62 | 258.82 | -33.38 | 130.95 | 0.6842 | 609.0 | -68.4 | |
| 0.00 | 2.69 | 0.00 | 1.79 | -19.22 | 259.00 | -33.20 | 129.43 | 0.6718 | 631.0 | 614.9 | |
| 20.05 | -20.00 | 13.57 | -20.00 | -20.32 | 258.66 | -33.54 | 130.47 | 0.6835 | 772.9 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.08 | -19.46 | 258.87 | -33.34 | 129.61 | 0.6749 | 542.0 | 475.1 | |
| 0.00 | 1.79 | 0.00 | 1.18 | -17.71 | 259.10 | -33.10 | 127.65 | 0.6594 | -673.0 | -539.5 | |
| 0.00 | 1.70 | 0.00 | 1.14 | -19.58 | 258.61 | -33.60 | 129.55 | 0.6784 | 136.0 | 93.9 | |
| 0.00 | 3.40 | 0.00 | 2.28 | -19.14 | 258.67 | -33.53 | 129.07 | 0.6744 | 505.0 | 464.7 | |
| 1.43 | -20.00 | 0.97 | -20.00 | -20.22 | 258.30 | -33.91 | 130.05 | 0.6861 | 218.3 | 999999 | |
| 3.49 | -20.00 | 2.38 | -20.00 | -20.60 | 258.16 | -34.04 | 130.39 | 0.6903 | -372.1 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -18.87 | 258.31 | -33.89 | 128.44 | 0.6760 | 187.0 | 147.8 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -18.73 | 258.30 | -33.90 | 128.27 | 0.6751 | 335.0 | 225.2 | |
| 0.00 | 1.70 | 0.00 | 1.13 | -17.83 | 258.43 | -33.78 | 127.25 | 0.6672 | -812.0 | -656.6 | |
| 0.00 | 9.76 | 0.00 | 6.57 | -18.60 | 257.83 | -34.37 | 127.74 | 0.6789 | -662.0 | -550.8 | |
| 0.00 | 1.43 | 0.00 | 0.95 | -17.29 | 258.09 | -34.12 | 126.30 | 0.6669 | -720.0 | -649.4 | |
| 1.97 | 5.37 | 1.33 | 3.64 | -19.02 | 257.62 | -34.59 | 128.08 | 0.6841 | -638.8 | -594.5 | |
| 0.36 | 1.34 | 0.24 | 0.90 | -18.10 | 257.83 | -34.38 | 127.12 | 0.6753 | -833.0 | -771.4 | |
| 0.00 | 4.12 | 0.00 | 2.77 | -18.28 | 257.75 | -34.45 | 127.27 | 0.6774 | -728.0 | -603.4 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -20.16 | 257.30 | -34.91 | 129.18 | 0.6954 | -368.0 | -303.1 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -19.44 | 257.36 | -34.85 | 128.38 | 0.6897 | -612.0 | -497.7 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -20.48 | 257.05 | -35.15 | 129.38 | 0.7001 | -537.0 | -423.0 | |
| 0.90 | -34.00 | 0.61 | -34.00 | -18.84 | 257.31 | -34.90 | 127.62 | 0.6859 | -585.3 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.81 | -18.47 | 257.40 | -34.81 | 127.23 | 0.6823 | -657.0 | -659.7 | |
| 0.00 | 1.07 | 0.00 | 0.73 | -18.25 | 257.25 | -34.95 | 126.85 | 0.6822 | -515.0 | -436.2 | |
| 0.00 | 1.25 | 0.00 | 0.85 | -18.77 | 256.89 | -35.31 | 127.22 | 0.6896 | -746.0 | -609.5 | |
| 6.89 | 19.34 | 4.78 | 13.44 | -20.08 | 256.52 | -35.68 | 128.50 | 0.7023 | -858.3 | -640.8 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -20.60 | 256.30 | -35.90 | 128.95 | 0.7081 | -576.0 | -478.9 | |
| 2.06 | -44.00 | 1.44 | -44.00 | -20.11 | 256.12 | -36.09 | 128.24 | 0.7065 | -709.3 | 999999 | |
| 9.85 | 10.56 | 6.77 | 7.26 | -18.85 | 256.36 | -35.84 | 126.91 | 0.6954 | -762.2 | -583.8 | |
| 0.00 | 1.79 | 0.00 | 1.24 | -19.13 | 256.17 | -36.03 | 127.11 | 0.6992 | -659.0 | -552.4 | |
| 0.00 | 1.61 | 0.00 | 1.09 | -17.28 | 256.50 | -35.71 | 125.08 | 0.6833 | -740.0 | -555.1 | |
| 0.00 | 1.34 | 0.00 | 0.93 | -19.38 | 255.99 | -36.22 | 127.27 | 0.7027 | -573.0 | -488.3 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -20.02 | 255.62 | -36.58 | 127.76 | 0.7106 | -484.0 | -393.2 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -20.41 | 255.31 | -36.90 | 128.00 | 0.7163 | -411.0 | -344.8 | |
| 0.00 | 1.61 | 0.00 | 1.12 | -19.00 | 255.65 | -36.56 | 126.57 | 0.7035 | -633.0 | -480.1 | |
| 0.00 | 1.70 | 0.00 | 1.19 | -19.28 | 255.54 | -36.67 | 126.82 | 0.7065 | -737.0 | -542.5 | |
| 0.00 | 1.34 | 0.00 | 0.94 | -19.59 | 255.41 | -36.79 | 127.11 | 0.7098 | -517.0 | -416.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
