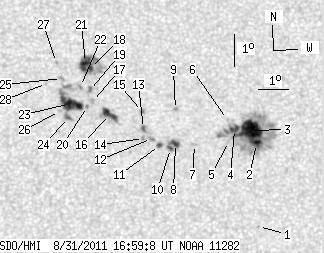

SDO HMI 2011-08-31 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.56 | 276.49 | 48.18 | 145.61 | 24.71 | 299.82 | 9.28 | 334.34 | 0.3405 | -77.0 | -77.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-31 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.47 | 21.22 | 302.20 | 11.66 | 322.48 | 0.3106 | -729.0 | -538.0 | |
| 4.12 | 144.17 | 2.17 | 76.17 | 23.83 | 302.36 | 11.81 | 327.06 | 0.3459 | -1322.1 | -427.1 | |
| 31.77 | -2.00 | 16.79 | -2.00 | 24.24 | 302.16 | 11.62 | 328.19 | 0.3498 | -1241.5 | 999999 | |
| 4.92 | -2.00 | 2.60 | -2.00 | 24.29 | 301.66 | 11.11 | 329.35 | 0.3461 | -1021.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 23.91 | 301.42 | 10.88 | 329.26 | 0.3390 | -623.0 | -431.7 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 24.61 | 301.45 | 10.90 | 330.32 | 0.3488 | 258.0 | 109.5 | |
| 0.00 | 1.97 | 0.00 | 1.03 | 23.84 | 300.27 | 9.73 | 331.82 | 0.3287 | -771.0 | -533.5 | |
| 4.03 | 10.38 | 2.11 | 5.43 | 23.89 | 299.64 | 9.09 | 333.44 | 0.3246 | -950.6 | -824.3 | |
| 0.00 | 1.61 | 0.00 | 0.85 | 24.96 | 299.72 | 9.17 | 334.79 | 0.3408 | -1002.0 | -841.2 | |
| 2.24 | -8.00 | 1.17 | -8.00 | 23.73 | 299.46 | 8.92 | 333.65 | 0.3210 | -1088.2 | 999999 | |
| 1.97 | 2.86 | 1.03 | 1.50 | 23.83 | 299.10 | 8.55 | 334.71 | 0.3199 | -1064.7 | -914.8 | |
| 0.00 | 2.95 | 0.00 | 1.54 | 24.06 | 298.85 | 8.30 | 335.68 | 0.3215 | -857.0 | -622.9 | |
| 1.79 | 4.56 | 0.94 | 2.39 | 24.38 | 298.60 | 8.05 | 336.74 | 0.3246 | 678.0 | 383.6 | |
| 0.00 | 1.88 | 0.00 | 0.98 | 24.06 | 298.58 | 8.03 | 336.37 | 0.3198 | -843.0 | -700.3 | |
| 0.00 | 1.97 | 0.00 | 1.03 | 24.92 | 298.60 | 8.06 | 337.44 | 0.3327 | 950.0 | 767.1 | |
| 8.95 | 15.30 | 4.69 | 8.01 | 24.84 | 297.49 | 6.94 | 340.18 | 0.3249 | 988.6 | 549.9 | |
| 0.00 | 2.77 | 0.00 | 1.45 | 25.26 | 296.94 | 6.39 | 342.07 | 0.3285 | 911.0 | 733.8 | |
| 1.88 | 34.81 | 0.99 | 18.38 | 26.32 | 296.93 | 6.38 | 343.13 | 0.3449 | 1067.5 | 556.8 | |
| 0.00 | 3.76 | 0.00 | 1.97 | 25.61 | 296.86 | 6.31 | 342.64 | 0.3336 | 939.0 | 741.6 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 25.10 | 296.76 | 6.22 | 342.37 | 0.3252 | 862.0 | 729.9 | |
| 10.74 | -18.00 | 5.67 | -18.00 | 26.51 | 296.77 | 6.22 | 343.70 | 0.3472 | 910.1 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.03 | 25.74 | 296.56 | 6.01 | 343.53 | 0.3343 | 781.0 | 727.1 | |
| 19.15 | 31.41 | 10.02 | 16.45 | 25.21 | 296.20 | 5.65 | 343.98 | 0.3241 | 1186.6 | 774.0 | |
| 0.00 | 4.65 | 0.00 | 2.43 | 24.76 | 296.11 | 5.56 | 343.79 | 0.3167 | 994.0 | 805.8 | |
| 0.00 | 2.60 | 0.00 | 1.36 | 26.01 | 295.93 | 5.38 | 345.38 | 0.3356 | 782.0 | 618.9 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 24.96 | 295.82 | 5.27 | 344.77 | 0.3185 | 756.0 | 544.4 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 26.52 | 295.79 | 5.24 | 346.17 | 0.3432 | -757.0 | -660.8 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 25.85 | 295.42 | 4.87 | 346.60 | 0.3311 | 693.0 | 596.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
