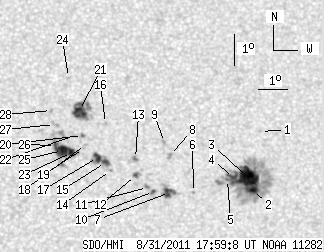

SDO HMI 2011-08-31 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.06 | 269.85 | 52.23 | 142.37 | 24.73 | 299.80 | 9.81 | 333.16 | 0.3447 | -108.4 | -54.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-31 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.57 | 25.68 | 302.89 | 12.89 | 327.87 | 0.3798 | -705.0 | -546.5 | |
| 5.10 | 138.07 | 2.70 | 73.11 | 23.82 | 302.42 | 12.43 | 325.75 | 0.3513 | -1333.6 | -410.3 | |
| 31.05 | -2.00 | 16.45 | -2.00 | 24.23 | 302.29 | 12.30 | 326.72 | 0.3555 | -1249.4 | 999999 | |
| 6.17 | -2.00 | 3.27 | -2.00 | 24.24 | 301.82 | 11.82 | 327.74 | 0.3515 | -1015.0 | 999999 | |
| 0.54 | -2.00 | 0.28 | -2.00 | 24.18 | 301.61 | 11.61 | 328.08 | 0.3489 | -960.8 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 23.80 | 300.43 | 10.43 | 330.09 | 0.3337 | -732.0 | -562.5 | |
| 8.14 | 13.15 | 4.27 | 6.89 | 23.82 | 299.62 | 9.63 | 332.02 | 0.3276 | -1039.3 | -594.8 | |
| 0.00 | 3.13 | 0.00 | 1.65 | 24.99 | 299.72 | 9.72 | 333.54 | 0.3450 | -897.0 | -735.4 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 25.40 | 299.58 | 9.58 | 334.44 | 0.3500 | -808.0 | -585.2 | |
| 1.43 | 2.15 | 0.75 | 1.12 | 23.86 | 299.09 | 9.10 | 333.38 | 0.3241 | -980.2 | -874.1 | |
| 1.16 | 2.68 | 0.61 | 1.41 | 23.99 | 298.90 | 8.90 | 334.05 | 0.3246 | -710.5 | -613.6 | |
| 2.06 | 3.67 | 1.08 | 1.92 | 24.38 | 298.52 | 8.53 | 335.54 | 0.3277 | 771.7 | 696.7 | |
| 1.52 | 1.70 | 0.80 | 0.89 | 24.91 | 298.56 | 8.57 | 336.18 | 0.3359 | 879.1 | 755.0 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 24.55 | 297.70 | 7.70 | 337.86 | 0.3249 | 581.0 | 401.1 | |
| 3.40 | 16.20 | 1.78 | 8.49 | 24.80 | 297.54 | 7.55 | 338.57 | 0.3278 | 994.0 | 738.3 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 26.05 | 297.62 | 7.63 | 339.82 | 0.3472 | 746.0 | 527.4 | |
| 5.28 | -15.00 | 2.77 | -15.00 | 24.97 | 297.28 | 7.29 | 339.43 | 0.3288 | 1043.2 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 25.39 | 296.90 | 6.91 | 340.87 | 0.3331 | 812.0 | 641.3 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 25.26 | 296.83 | 6.84 | 340.92 | 0.3308 | 831.0 | 705.2 | |
| 0.45 | 1.43 | 0.24 | 0.75 | 25.67 | 296.82 | 6.83 | 341.39 | 0.3371 | 826.8 | 726.9 | |
| 15.66 | 29.08 | 8.27 | 15.37 | 26.47 | 296.76 | 6.77 | 342.33 | 0.3492 | 977.1 | 528.0 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 25.68 | 296.55 | 6.56 | 342.08 | 0.3358 | 956.0 | 662.5 | |
| 3.85 | 41.88 | 2.02 | 21.95 | 25.14 | 296.42 | 6.43 | 341.86 | 0.3267 | 1139.2 | 785.7 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 27.54 | 296.45 | 6.46 | 344.04 | 0.3643 | 671.0 | 404.8 | |
| 10.83 | -23.00 | 5.67 | -23.00 | 25.21 | 296.12 | 6.13 | 342.71 | 0.3263 | 1256.6 | 999999 | |
| 2.42 | -23.00 | 1.27 | -23.00 | 25.37 | 295.89 | 5.90 | 343.47 | 0.3277 | 1048.1 | 999999 | |
| 0.00 | 3.13 | 0.00 | 1.65 | 26.04 | 295.89 | 5.90 | 344.09 | 0.3383 | 508.0 | 538.8 | |
| 0.00 | 1.61 | 0.00 | 0.85 | 26.49 | 295.81 | 5.82 | 344.68 | 0.3450 | -895.0 | -658.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
