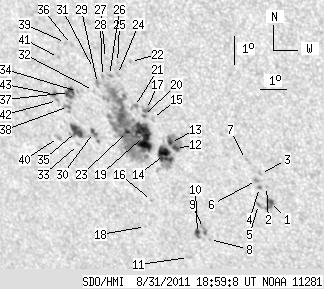

SDO HMI 2011-08-31 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.13 | 323.73 | 50.68 | 212.31 | -20.17 | 258.64 | -30.80 | 132.68 | 0.6562 | 127.2 | -79.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-31 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.31 | 6.71 | 2.11 | 4.29 | -22.05 | 263.04 | -26.40 | 139.13 | 0.6320 | 855.2 | 735.5 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -21.54 | 263.00 | -26.44 | 138.51 | 0.6275 | 767.0 | 612.2 | |
| 0.00 | 1.88 | 0.00 | 1.19 | -21.10 | 262.87 | -26.58 | 137.87 | 0.6244 | 651.0 | 572.0 | |
| 0.00 | 1.52 | 0.00 | 0.97 | -21.59 | 262.73 | -26.71 | 138.29 | 0.6303 | 913.0 | 766.2 | |
| 0.00 | 1.97 | 0.00 | 1.26 | -22.18 | 262.58 | -26.87 | 138.79 | 0.6374 | 565.0 | 455.4 | |
| 0.00 | 2.51 | 0.00 | 1.59 | -21.35 | 262.67 | -26.77 | 137.95 | 0.6286 | 810.0 | 699.2 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -20.65 | 262.41 | -27.03 | 136.87 | 0.6244 | 777.0 | 665.8 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -23.53 | 260.45 | -28.99 | 138.16 | 0.6685 | -730.0 | -582.1 | |
| 0.00 | 5.28 | 0.00 | 3.50 | -23.16 | 260.31 | -29.13 | 137.62 | 0.6663 | -905.0 | -687.1 | |
| 3.67 | 4.74 | 2.44 | 3.16 | -23.35 | 260.04 | -29.40 | 137.58 | 0.6704 | -671.2 | -522.7 | |
| 0.00 | 1.97 | 0.00 | 1.33 | -24.23 | 259.47 | -29.97 | 138.00 | 0.6831 | 693.0 | 472.0 | |
| 3.13 | 52.43 | 2.03 | 34.09 | -20.43 | 259.88 | -29.56 | 134.11 | 0.6462 | 1025.8 | 540.1 | |
| 1.97 | -12.00 | 1.27 | -12.00 | -20.24 | 259.73 | -29.71 | 133.75 | 0.6459 | 1060.3 | 999999 | |
| 14.76 | -12.00 | 9.63 | -12.00 | -20.67 | 259.42 | -30.02 | 133.96 | 0.6526 | 862.1 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.21 | -19.46 | 259.23 | -30.21 | 132.34 | 0.6442 | 866.0 | 636.4 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -22.31 | 258.55 | -30.90 | 135.04 | 0.6746 | 637.0 | 509.5 | |
| 0.00 | 4.74 | 0.00 | 3.06 | -19.17 | 259.06 | -30.38 | 131.84 | 0.6434 | 783.0 | 676.3 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -23.24 | 258.08 | -31.36 | 135.67 | 0.6867 | 554.0 | 454.8 | |
| 24.70 | 162.31 | 16.13 | 106.42 | -20.10 | 258.76 | -30.69 | 132.68 | 0.6542 | 916.9 | -166.1 | |
| 1.25 | 1.70 | 0.81 | 1.10 | -19.38 | 258.91 | -30.53 | 131.95 | 0.6467 | 632.9 | 604.4 | |
| 0.00 | 4.12 | 0.00 | 2.67 | -19.10 | 258.63 | -30.81 | 131.36 | 0.6471 | 567.0 | 465.3 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -17.59 | 258.78 | -30.66 | 129.61 | 0.6332 | -801.0 | -612.8 | |
| 2.42 | -19.00 | 1.59 | -19.00 | -19.97 | 258.18 | -31.26 | 132.01 | 0.6587 | 311.7 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.10 | -18.06 | 258.21 | -31.23 | 129.69 | 0.6429 | -751.0 | -713.3 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -17.66 | 258.29 | -31.15 | 129.25 | 0.6389 | -872.0 | -741.0 | |
| 0.00 | 2.33 | 0.00 | 1.51 | -18.11 | 257.90 | -31.54 | 129.49 | 0.6465 | -907.0 | -700.9 | |
| 0.00 | 1.34 | 0.00 | 0.87 | -17.55 | 257.86 | -31.58 | 128.75 | 0.6425 | -576.0 | -474.7 | |
| 0.00 | 1.25 | 0.00 | 0.81 | -18.17 | 257.63 | -31.81 | 129.32 | 0.6497 | -827.0 | -673.5 | |
| 0.00 | 3.13 | 0.00 | 2.05 | -18.42 | 257.39 | -32.05 | 129.42 | 0.6541 | -849.0 | -709.7 | |
| 3.31 | 6.08 | 2.21 | 4.06 | -20.10 | 256.86 | -32.58 | 131.02 | 0.6725 | -822.7 | -587.5 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -17.92 | 257.34 | -32.10 | 128.76 | 0.6508 | -632.0 | -578.8 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -18.66 | 257.18 | -32.26 | 129.55 | 0.6581 | -511.0 | -455.9 | |
| 0.00 | 1.07 | 0.00 | 0.73 | -20.56 | 256.17 | -33.27 | 130.98 | 0.6827 | -576.0 | -444.8 | |
| 0.00 | 1.25 | 0.00 | 0.83 | -18.74 | 256.56 | -32.88 | 129.12 | 0.6650 | -756.0 | -608.4 | |
| 10.20 | 17.72 | 6.86 | 11.91 | -20.11 | 256.20 | -33.24 | 130.48 | 0.6790 | -883.3 | -599.6 | |
| 0.00 | 1.70 | 0.00 | 1.11 | -17.17 | 256.66 | -32.78 | 127.25 | 0.6521 | -657.0 | -445.4 | |
| 7.16 | 9.04 | 4.76 | 6.00 | -18.80 | 256.24 | -33.20 | 128.93 | 0.6686 | -820.0 | -773.4 | |
| 0.00 | 6.08 | 0.00 | 4.07 | -19.28 | 256.09 | -33.35 | 129.39 | 0.6737 | -799.0 | -591.1 | |
| 0.00 | 1.61 | 0.00 | 1.05 | -17.12 | 256.44 | -33.00 | 127.01 | 0.6540 | -554.0 | -475.4 | |
| 0.00 | 3.31 | 0.00 | 2.25 | -20.37 | 255.44 | -34.00 | 130.17 | 0.6883 | -564.0 | -379.5 | |
| 0.00 | 1.16 | 0.00 | 0.77 | -17.65 | 256.07 | -33.37 | 127.36 | 0.6618 | -605.0 | -500.0 | |
| 0.00 | 1.34 | 0.00 | 0.90 | -19.11 | 255.71 | -33.73 | 128.87 | 0.6763 | -664.0 | -489.7 | |
| 1.25 | 2.68 | 0.84 | 1.80 | -18.91 | 255.64 | -33.80 | 128.57 | 0.6755 | -679.3 | -475.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
