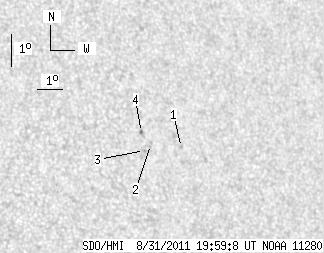

SDO HMI 2011-08-31 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.91 | 0.00 | 3.64 | 17.29 | 324.92 | 36.03 | 289.47 | 0.5979 | 681.0 | 583.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-31 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.84 | 17.09 | 325.93 | 37.04 | 288.82 | 0.6105 | 607.0 | 483.1 | |
| 0.00 | 2.42 | 0.00 | 1.49 | 17.27 | 324.74 | 35.86 | 289.48 | 0.5955 | 472.0 | 533.1 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 17.10 | 324.47 | 35.58 | 289.29 | 0.5914 | 777.0 | 621.2 | |
| 0.00 | 1.34 | 0.00 | 0.82 | 17.66 | 324.48 | 35.59 | 290.21 | 0.5932 | 868.0 | 753.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
