SDO HMI 2011-08-31 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.99 | 237.28 | 22.97 | 118.58 | 13.90 | 291.52 | 3.19 | 334.86 | 0.1312 | -622.6 | -333.6 | |
|
previous
or next observation for the same group /

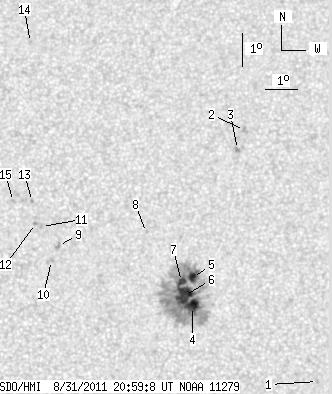

back to the solar disc SDO HMI 2011-08-31 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.72 | 10.96 | 295.68 | 7.35 | 298.02 | 0.1429 | -848.0 | -581.8 | |
| 0.00 | 3.31 | 0.00 | 1.68 | 18.65 | 293.61 | 5.27 | 336.41 | 0.2185 | 885.0 | 743.2 | |
| 0.00 | 2.86 | 0.00 | 1.45 | 18.07 | 293.36 | 5.03 | 336.23 | 0.2077 | 1084.0 | 867.0 | |
| 13.06 | 216.80 | 6.52 | 108.26 | 13.28 | 291.85 | 3.51 | 330.75 | 0.1225 | -1269.4 | -453.1 | |
| 5.91 | -4.00 | 2.95 | -4.00 | 14.16 | 291.86 | 3.52 | 333.91 | 0.1361 | -1218.0 | 999999 | |
| 21.03 | -4.00 | 10.50 | -4.00 | 13.62 | 291.60 | 3.27 | 333.73 | 0.1257 | -1346.3 | 999999 | |
| 5.99 | -4.00 | 3.00 | -4.00 | 14.04 | 291.51 | 3.18 | 335.78 | 0.1317 | -1176.1 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.27 | 15.54 | 290.44 | 2.10 | 346.35 | 0.1504 | 837.0 | 623.2 | |
| 0.00 | 3.13 | 0.00 | 1.57 | 15.15 | 287.67 | -0.66 | 4.59 | 0.1397 | 1084.0 | 835.7 | |
| 0.00 | 1.52 | 0.00 | 0.76 | 14.69 | 287.46 | -0.88 | 6.47 | 0.1321 | 893.0 | 707.0 | |
| 0.00 | 1.70 | 0.00 | 0.85 | 15.73 | 287.14 | -1.20 | 7.70 | 0.1507 | 900.0 | 594.6 | |
| 0.00 | 1.52 | 0.00 | 0.76 | 15.82 | 286.95 | -1.39 | 8.81 | 0.1527 | 1070.0 | 837.4 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 16.50 | 286.85 | -1.49 | 8.73 | 0.1645 | 979.0 | 773.4 | |
| 0.00 | 1.52 | 0.00 | 0.78 | 21.41 | 286.74 | -1.59 | 6.02 | 0.2482 | 598.0 | 519.9 | |
| 0.00 | 1.70 | 0.00 | 0.85 | 16.49 | 286.25 | -2.08 | 12.16 | 0.1663 | 900.0 | 718.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
