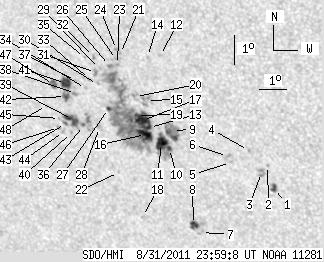

SDO HMI 2011-08-31 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.54 | 342.46 | 44.52 | 218.22 | -20.02 | 258.52 | -28.16 | 135.02 | 0.6296 | -65.3 | -11.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-31 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.31 | 4.56 | 2.06 | 2.84 | -21.94 | 263.18 | -23.50 | 142.22 | 0.6061 | 821.9 | 778.8 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -21.16 | 263.06 | -23.62 | 141.22 | 0.5988 | 856.0 | 684.5 | |
| 0.00 | 4.92 | 0.00 | 3.05 | -21.41 | 262.81 | -23.87 | 141.21 | 0.6037 | 866.0 | 714.7 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -20.68 | 262.47 | -24.21 | 140.00 | 0.5990 | 813.0 | 650.5 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -21.13 | 261.75 | -24.93 | 139.69 | 0.6101 | 637.0 | 545.9 | |
| 0.00 | 2.77 | 0.00 | 1.73 | -20.92 | 261.68 | -25.00 | 139.39 | 0.6087 | 864.0 | 648.5 | |
| 0.00 | 2.06 | 0.00 | 1.34 | -23.64 | 260.19 | -26.49 | 140.78 | 0.6484 | -680.0 | -476.8 | |
| 4.92 | 8.59 | 3.19 | 5.57 | -23.38 | 259.96 | -26.72 | 140.25 | 0.6479 | -760.2 | -493.9 | |
| 0.00 | 19.51 | 0.00 | 12.27 | -20.15 | 259.84 | -26.84 | 136.50 | 0.6180 | 1159.0 | 833.5 | |
| 1.61 | 27.21 | 1.02 | 17.28 | -20.77 | 259.61 | -27.07 | 137.00 | 0.6260 | 795.1 | 492.9 | |
| 10.74 | -10.00 | 6.81 | -10.00 | -20.62 | 259.35 | -27.33 | 136.55 | 0.6270 | 930.1 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.94 | -17.63 | 259.85 | -26.83 | 133.42 | 0.5944 | -713.0 | -541.8 | |
| 1.61 | 169.96 | 1.02 | 108.13 | -20.10 | 259.02 | -27.66 | 135.59 | 0.6253 | 1049.0 | -32.1 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -17.69 | 259.38 | -27.30 | 133.00 | 0.5998 | -427.0 | -411.8 | |
| 0.00 | 8.14 | 0.00 | 5.11 | -19.18 | 259.08 | -27.60 | 134.55 | 0.6163 | 746.0 | 717.6 | |
| 7.70 | -13.00 | 4.90 | -13.00 | -20.35 | 258.82 | -27.86 | 135.69 | 0.6294 | 877.7 | 999999 | |
| 9.76 | -13.00 | 6.18 | -13.00 | -19.87 | 258.81 | -27.87 | 135.11 | 0.6253 | 1002.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -23.22 | 258.09 | -28.59 | 138.22 | 0.6623 | 612.0 | 509.7 | |
| 0.27 | -13.00 | 0.17 | -13.00 | -19.71 | 258.62 | -28.06 | 134.73 | 0.6256 | 775.7 | 999999 | |
| 0.00 | 4.92 | 0.00 | 3.10 | -19.07 | 258.70 | -27.98 | 134.03 | 0.6190 | 459.0 | 431.2 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -17.65 | 258.41 | -28.27 | 131.97 | 0.6092 | -786.0 | -700.2 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -21.73 | 257.54 | -29.15 | 136.02 | 0.6539 | 631.0 | 553.9 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -18.03 | 258.24 | -28.44 | 132.28 | 0.6143 | -715.0 | -605.4 | |
| 0.00 | 1.52 | 0.00 | 0.95 | -17.53 | 258.29 | -28.39 | 131.69 | 0.6094 | -861.0 | -743.9 | |
| 0.00 | 1.52 | 0.00 | 0.95 | -17.86 | 258.23 | -28.45 | 132.06 | 0.6129 | -873.0 | -629.8 | |
| 0.00 | 2.33 | 0.00 | 1.46 | -18.08 | 257.94 | -28.74 | 132.05 | 0.6178 | -940.0 | -790.2 | |
| 1.97 | -13.00 | 1.26 | -13.00 | -19.54 | 257.63 | -29.05 | 133.55 | 0.6337 | -547.2 | 999999 | |
| 0.00 | 4.21 | 0.00 | 2.72 | -20.22 | 257.16 | -29.53 | 133.90 | 0.6441 | -469.0 | -440.2 | |
| 0.00 | 1.43 | 0.00 | 0.90 | -18.20 | 257.55 | -29.13 | 131.83 | 0.6228 | -773.0 | -605.1 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -18.75 | 257.38 | -29.30 | 132.34 | 0.6293 | -616.0 | -612.8 | |
| 0.00 | 3.40 | 0.00 | 2.16 | -18.35 | 257.38 | -29.30 | 131.85 | 0.6258 | -901.0 | -769.4 | |
| 0.00 | 1.61 | 0.00 | 1.02 | -17.81 | 257.40 | -29.28 | 131.20 | 0.6210 | -805.0 | -684.3 | |
| 0.00 | 1.70 | 0.00 | 1.08 | -18.60 | 257.11 | -29.57 | 131.90 | 0.6307 | -727.0 | -645.2 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -18.92 | 256.90 | -29.78 | 132.10 | 0.6354 | -699.0 | -482.7 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -17.87 | 257.06 | -29.62 | 130.95 | 0.6249 | -619.0 | -446.2 | |
| 0.89 | 9.67 | 0.58 | 6.27 | -20.19 | 256.57 | -30.11 | 133.32 | 0.6495 | -800.6 | -720.7 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -18.67 | 256.58 | -30.10 | 131.49 | 0.6366 | -651.0 | -614.5 | |
| 0.00 | 2.60 | 0.00 | 1.67 | -19.11 | 256.49 | -30.19 | 131.96 | 0.6412 | -819.0 | -719.1 | |
| 8.68 | 13.07 | 5.66 | 8.51 | -20.01 | 256.19 | -30.49 | 132.76 | 0.6516 | -921.1 | -704.1 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -20.46 | 256.06 | -30.62 | 133.17 | 0.6567 | -565.0 | -433.6 | |
| 8.95 | 18.79 | 5.76 | 12.13 | -18.80 | 256.18 | -30.50 | 131.29 | 0.6416 | -895.7 | -669.5 | |
| 3.85 | -41.00 | 2.49 | -41.00 | -19.24 | 256.09 | -30.59 | 131.75 | 0.6462 | -762.8 | 999999 | |
| 0.63 | 1.70 | 0.41 | 1.11 | -20.16 | 255.90 | -30.78 | 132.68 | 0.6558 | -684.4 | -520.6 | |
| 0.00 | 1.79 | 0.00 | 1.18 | -20.44 | 255.76 | -30.92 | 132.89 | 0.6595 | -399.0 | -316.0 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -20.01 | 255.71 | -30.98 | 132.32 | 0.6563 | -332.0 | -301.2 | |
| 0.00 | 1.88 | 0.00 | 1.24 | -20.32 | 255.60 | -31.08 | 132.60 | 0.6600 | -576.0 | -463.5 | |
| 4.65 | 6.09 | 3.01 | 3.94 | -18.86 | 255.72 | -30.96 | 130.95 | 0.6467 | -619.3 | -509.3 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -19.60 | 255.31 | -31.37 | 131.47 | 0.6569 | -520.0 | -359.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
