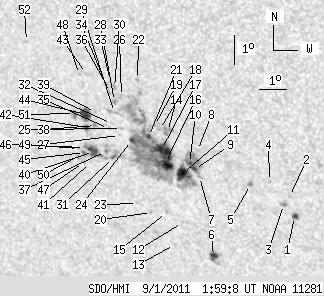

SDO HMI 2011-09-01 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.27 | 376.70 | 52.00 | 237.39 | -20.07 | 258.51 | -27.07 | 136.18 | 0.6197 | 86.8 | -41.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-01 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.33 | 3.85 | 1.43 | 2.37 | -21.85 | 263.15 | -22.43 | 143.40 | 0.5961 | 905.0 | 780.4 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -21.17 | 263.09 | -22.49 | 142.58 | 0.5893 | 850.0 | 737.6 | |
| 0.36 | 3.40 | 0.22 | 2.09 | -21.46 | 262.83 | -22.75 | 142.58 | 0.5946 | 828.8 | 741.0 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -20.69 | 262.46 | -23.12 | 141.29 | 0.5895 | 880.0 | 697.2 | |
| 0.36 | 1.97 | 0.22 | 1.21 | -20.83 | 261.77 | -23.81 | 140.63 | 0.5971 | 919.2 | 711.3 | |
| 4.12 | 8.77 | 2.65 | 5.64 | -23.42 | 259.95 | -25.63 | 141.44 | 0.6392 | -826.1 | -541.5 | |
| 0.00 | 1.52 | 0.00 | 0.95 | -20.65 | 259.98 | -25.60 | 138.42 | 0.6115 | 687.0 | 577.4 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -19.77 | 260.06 | -25.52 | 137.47 | 0.6019 | 60.0 | 58.2 | |
| 1.79 | 256.21 | 1.12 | 160.98 | -20.42 | 259.84 | -25.74 | 138.00 | 0.6105 | 997.2 | 40.9 | |
| 1.07 | -9.00 | 0.67 | -9.00 | -20.23 | 259.70 | -25.88 | 137.61 | 0.6099 | 1139.4 | 999999 | |
| 12.00 | -9.00 | 7.53 | -9.00 | -20.59 | 259.38 | -26.20 | 137.69 | 0.6163 | 942.6 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -22.29 | 259.05 | -26.54 | 139.27 | 0.6358 | 630.0 | 529.4 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -23.08 | 258.58 | -27.00 | 139.66 | 0.6474 | 710.0 | 505.5 | |
| 0.00 | 6.54 | 0.00 | 4.06 | -19.18 | 259.09 | -26.49 | 135.72 | 0.6055 | 740.0 | 766.2 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -21.98 | 258.52 | -27.06 | 138.38 | 0.6374 | 805.0 | 582.5 | |
| 16.02 | -9.00 | 10.08 | -9.00 | -20.25 | 258.83 | -26.75 | 136.71 | 0.6181 | 826.8 | 999999 | |
| 14.86 | -9.00 | 9.31 | -9.00 | -19.81 | 258.77 | -26.82 | 136.12 | 0.6146 | 946.8 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.06 | -19.13 | 258.82 | -26.77 | 135.36 | 0.6078 | 572.0 | 429.8 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -19.01 | 258.66 | -26.92 | 135.04 | 0.6081 | 573.0 | 489.8 | |
| 0.00 | 1.52 | 0.00 | 0.98 | -22.01 | 257.97 | -27.62 | 137.85 | 0.6427 | 659.0 | 551.9 | |
| 2.06 | -9.00 | 1.29 | -9.00 | -19.39 | 258.37 | -27.21 | 135.22 | 0.6145 | 702.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -17.49 | 258.31 | -27.28 | 132.78 | 0.5977 | -825.0 | -734.1 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -21.73 | 257.51 | -28.07 | 137.07 | 0.6442 | 633.0 | 478.4 | |
| 1.88 | -9.00 | 1.19 | -9.00 | -19.57 | 257.72 | -27.86 | 134.76 | 0.6224 | -667.5 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.24 | -19.18 | 257.43 | -28.15 | 134.00 | 0.6217 | -637.0 | -480.0 | |
| 0.00 | 1.88 | 0.00 | 1.17 | -18.10 | 257.63 | -27.95 | 132.86 | 0.6100 | -507.0 | -511.7 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -19.43 | 257.31 | -28.27 | 134.18 | 0.6251 | 281.0 | 147.1 | |
| 0.00 | 2.42 | 0.00 | 1.51 | -18.28 | 257.34 | -28.24 | 132.80 | 0.6146 | -865.0 | -792.7 | |
| 0.00 | 4.66 | 0.00 | 2.93 | -18.66 | 257.27 | -28.31 | 133.20 | 0.6186 | -763.0 | -648.4 | |
| 0.00 | 2.06 | 0.00 | 1.28 | -17.81 | 257.43 | -28.16 | 132.29 | 0.6096 | -880.0 | -721.6 | |
| 2.06 | 28.29 | 1.32 | 18.17 | -20.19 | 256.94 | -28.64 | 134.74 | 0.6355 | -692.0 | -560.1 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -19.04 | 257.09 | -28.49 | 133.49 | 0.6237 | -675.0 | -477.6 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -17.59 | 257.32 | -28.26 | 131.90 | 0.6086 | -742.0 | -596.8 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -17.99 | 257.21 | -28.37 | 132.31 | 0.6133 | -568.0 | -480.4 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -19.21 | 256.95 | -28.63 | 133.57 | 0.6267 | -738.0 | -611.9 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -17.73 | 257.15 | -28.43 | 131.91 | 0.6116 | -580.0 | -505.0 | |
| 0.98 | 4.21 | 0.63 | 2.69 | -20.01 | 256.69 | -28.90 | 134.26 | 0.6363 | -961.2 | -868.2 | |
| 0.00 | 2.06 | 0.00 | 1.31 | -19.14 | 256.49 | -29.09 | 133.03 | 0.6306 | -850.0 | -727.9 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -18.70 | 256.57 | -29.01 | 132.57 | 0.6259 | -819.0 | -693.6 | |
| 6.98 | -31.00 | 4.50 | -31.00 | -20.04 | 256.24 | -29.35 | 133.87 | 0.6409 | -951.2 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -20.42 | 256.04 | -29.54 | 134.14 | 0.6461 | -577.0 | -472.5 | |
| 2.42 | 3.85 | 1.55 | 2.46 | -19.23 | 256.14 | -29.44 | 132.81 | 0.6348 | -782.7 | -579.8 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -17.41 | 256.48 | -29.10 | 130.85 | 0.6157 | -653.0 | -697.7 | |
| 9.67 | 12.17 | 6.16 | 7.75 | -18.79 | 256.19 | -29.39 | 132.31 | 0.6306 | -919.5 | -592.2 | |
| 1.79 | -31.00 | 1.16 | -31.00 | -20.09 | 255.89 | -29.69 | 133.61 | 0.6447 | -566.1 | 999999 | |
| 0.36 | -31.00 | 0.23 | -31.00 | -19.92 | 255.93 | -29.65 | 133.43 | 0.6429 | -714.0 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.99 | -20.44 | 255.78 | -29.80 | 133.91 | 0.6487 | -383.0 | -333.7 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -17.46 | 256.22 | -29.36 | 130.66 | 0.6189 | -625.0 | -504.9 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -19.97 | 255.69 | -29.89 | 133.27 | 0.6455 | -441.0 | -376.3 | |
| 0.00 | 2.24 | 0.00 | 1.45 | -20.25 | 255.60 | -29.98 | 133.52 | 0.6488 | -488.0 | -310.0 | |
| 1.16 | 4.83 | 0.74 | 3.09 | -18.79 | 255.79 | -29.80 | 131.92 | 0.6345 | -717.9 | -551.8 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -16.49 | 254.45 | -31.13 | 127.79 | 0.6296 | -561.0 | -427.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
