SDO HMI 2011-09-01 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.33 | 349.01 | 38.80 | 187.09 | 24.84 | 299.59 | 14.01 | 324.70 | 0.3820 | -248.4 | 100.4 | |
|
previous
or next observation for the same group /

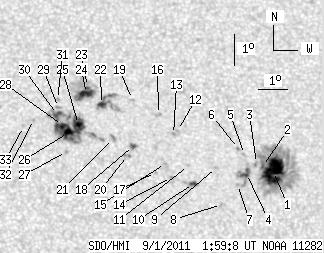

back to the solar disc SDO HMI 2011-09-01 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.75 | 145.74 | 18.23 | 78.80 | 23.89 | 302.84 | 17.26 | 317.14 | 0.4005 | -1198.2 | -315.1 | |
| 1.52 | -1.00 | 0.82 | -1.00 | 24.06 | 302.48 | 16.90 | 318.01 | 0.3985 | -833.8 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.06 | 24.16 | 302.29 | 16.71 | 318.51 | 0.3976 | -821.0 | -670.6 | |
| 5.28 | 14.05 | 2.84 | 7.55 | 23.86 | 301.90 | 16.32 | 318.57 | 0.3901 | -1047.1 | -748.1 | |
| 0.00 | 1.97 | 0.00 | 1.06 | 24.46 | 301.91 | 16.33 | 319.65 | 0.3970 | -593.0 | -451.7 | |
| 0.00 | 1.25 | 0.00 | 0.68 | 24.66 | 301.73 | 16.15 | 320.30 | 0.3974 | -640.0 | -492.6 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 23.52 | 301.55 | 15.97 | 318.53 | 0.3826 | -876.0 | -687.6 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 22.91 | 300.93 | 15.35 | 318.43 | 0.3690 | -859.0 | -685.9 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 24.08 | 300.90 | 15.32 | 320.68 | 0.3822 | -759.0 | -479.4 | |
| 2.95 | 4.74 | 1.57 | 2.53 | 23.60 | 300.06 | 14.47 | 321.31 | 0.3680 | -968.1 | -767.3 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 24.17 | 299.95 | 14.37 | 322.54 | 0.3738 | -490.0 | -406.5 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 25.29 | 299.70 | 14.12 | 324.91 | 0.3854 | -563.0 | -456.2 | |
| 0.00 | 1.70 | 0.00 | 0.91 | 25.17 | 299.55 | 13.97 | 324.99 | 0.3824 | -801.0 | -600.8 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 23.81 | 299.33 | 13.75 | 323.06 | 0.3633 | -659.0 | -544.5 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 24.26 | 299.17 | 13.59 | 324.15 | 0.3674 | -663.0 | -507.3 | |
| 0.00 | 2.51 | 0.00 | 1.35 | 25.82 | 299.11 | 13.53 | 326.85 | 0.3867 | -647.0 | -564.8 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 23.98 | 298.80 | 13.22 | 324.39 | 0.3604 | -788.0 | -646.8 | |
| 2.15 | 3.13 | 1.14 | 1.67 | 24.86 | 298.14 | 12.56 | 327.18 | 0.3657 | 806.7 | 713.7 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 26.32 | 298.27 | 12.69 | 329.21 | 0.3862 | -728.0 | -613.6 | |
| 0.00 | 2.69 | 0.00 | 1.42 | 24.54 | 297.91 | 12.33 | 327.15 | 0.3595 | 986.0 | 722.3 | |
| 0.00 | 3.04 | 0.00 | 1.62 | 25.10 | 297.48 | 11.90 | 328.91 | 0.3633 | 809.0 | 602.6 | |
| 3.67 | 21.40 | 1.96 | 11.44 | 26.19 | 297.18 | 11.60 | 331.16 | 0.3757 | 937.5 | 526.3 | |
| 0.90 | 37.78 | 0.48 | 20.20 | 26.78 | 296.76 | 11.18 | 332.83 | 0.3806 | 526.7 | 327.6 | |
| 7.43 | -23.00 | 3.97 | -23.00 | 26.55 | 296.70 | 11.12 | 332.65 | 0.3771 | 997.6 | 999999 | |
| 3.13 | 88.63 | 1.66 | 46.98 | 25.57 | 296.33 | 10.75 | 332.04 | 0.3606 | 1097.7 | 749.0 | |
| 4.83 | -25.00 | 2.56 | -25.00 | 25.32 | 295.97 | 10.39 | 332.48 | 0.3543 | 1328.1 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 24.72 | 295.85 | 10.27 | 331.86 | 0.3449 | 899.0 | 719.1 | |
| 2.60 | -25.00 | 1.38 | -25.00 | 25.55 | 295.79 | 10.21 | 333.21 | 0.3562 | 1131.1 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.14 | 26.13 | 295.70 | 10.12 | 334.19 | 0.3638 | 644.0 | 504.0 | |
| 4.12 | -25.00 | 2.19 | -25.00 | 25.90 | 295.65 | 10.07 | 334.00 | 0.3602 | 924.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 26.38 | 295.69 | 10.11 | 334.55 | 0.3674 | 699.0 | 600.3 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 25.76 | 294.82 | 9.24 | 335.67 | 0.3524 | 867.0 | 753.7 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 25.54 | 294.46 | 8.88 | 336.22 | 0.3469 | 599.0 | 565.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
