SDO HMI 2011-09-01 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.86 | 214.43 | 16.48 | 107.58 | 13.55 | 291.64 | 6.61 | 314.87 | 0.1589 | -926.7 | -472.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-01 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

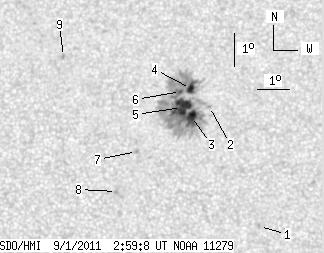

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 0.90 | 9.89 | 293.90 | 8.87 | 287.66 | 0.1602 | -847.0 | -734.4 | |
| 0.00 | 1.61 | 0.00 | 0.81 | 13.55 | 292.45 | 7.42 | 311.67 | 0.1688 | -746.0 | -465.6 | |
| 6.45 | 205.30 | 3.23 | 103.00 | 13.26 | 291.88 | 6.85 | 312.53 | 0.1582 | -1257.8 | -508.9 | |
| 5.28 | -3.00 | 2.65 | -3.00 | 14.11 | 291.87 | 6.84 | 316.38 | 0.1682 | -1222.6 | 999999 | |
| 19.70 | -3.00 | 9.88 | -3.00 | 13.54 | 291.57 | 6.54 | 315.11 | 0.1577 | -1320.9 | 999999 | |
| 1.43 | -3.00 | 0.72 | -3.00 | 14.02 | 291.56 | 6.52 | 317.35 | 0.1634 | -1151.4 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.03 | 12.22 | 290.14 | 5.11 | 315.32 | 0.1243 | 941.0 | 692.3 | |
| 0.00 | 1.70 | 0.00 | 0.85 | 11.01 | 289.50 | 4.47 | 311.17 | 0.1020 | 970.0 | 759.1 | |
| 0.00 | 1.97 | 0.00 | 0.99 | 15.13 | 287.91 | 2.88 | 340.67 | 0.1470 | 959.0 | 679.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
