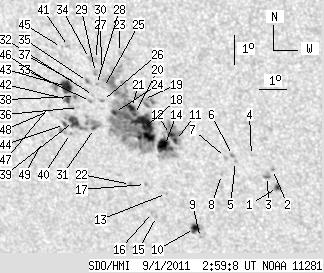

SDO HMI 2011-09-01 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.23 | 392.39 | 56.73 | 246.09 | -20.06 | 258.56 | -26.47 | 136.80 | 0.6141 | 100.4 | -48.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-01 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.15 | 3.94 | 1.32 | 2.41 | -21.82 | 263.21 | -21.83 | 144.10 | 0.5908 | 928.8 | 748.5 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -21.21 | 263.13 | -21.90 | 143.34 | 0.5847 | 808.0 | 681.4 | |
| 0.00 | 3.58 | 0.00 | 2.19 | -21.46 | 262.91 | -22.12 | 143.35 | 0.5892 | 888.0 | 737.2 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -20.76 | 262.46 | -22.57 | 142.03 | 0.5855 | 806.0 | 624.9 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -21.00 | 261.86 | -23.17 | 141.58 | 0.5933 | 782.0 | 643.6 | |
| 0.00 | 1.79 | 0.00 | 1.10 | -20.80 | 261.79 | -23.24 | 141.26 | 0.5918 | 885.0 | 772.8 | |
| 0.00 | 1.43 | 0.00 | 0.88 | -20.88 | 261.53 | -23.50 | 141.05 | 0.5949 | 640.0 | 525.1 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -21.47 | 261.28 | -23.75 | 141.43 | 0.6033 | 567.0 | 449.2 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -23.73 | 260.10 | -24.93 | 142.52 | 0.6365 | -551.0 | -454.8 | |
| 5.19 | 10.03 | 3.32 | 6.41 | -23.42 | 259.94 | -25.09 | 142.03 | 0.6347 | -754.4 | -622.8 | |
| 1.88 | 259.11 | 1.17 | 161.99 | -20.39 | 259.83 | -25.20 | 138.56 | 0.6052 | 1036.5 | 19.0 | |
| 2.42 | -11.00 | 1.50 | -11.00 | -20.20 | 259.69 | -25.34 | 138.17 | 0.6046 | 1108.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -22.25 | 259.16 | -25.87 | 139.93 | 0.6296 | 676.0 | 478.9 | |
| 14.95 | -11.00 | 9.34 | -11.00 | -20.59 | 259.41 | -25.63 | 138.31 | 0.6110 | 913.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.81 | -23.08 | 258.62 | -26.41 | 140.26 | 0.6423 | 674.0 | 561.4 | |
| 0.00 | 1.34 | 0.00 | 0.87 | -22.95 | 258.51 | -26.53 | 140.00 | 0.6421 | 682.0 | 577.7 | |
| 0.00 | 1.34 | 0.00 | 0.86 | -21.98 | 258.45 | -26.58 | 138.88 | 0.6332 | 747.0 | 534.4 | |
| 28.92 | -11.00 | 18.06 | -11.00 | -20.01 | 258.79 | -26.24 | 136.97 | 0.6111 | 921.1 | 999999 | |
| 0.00 | 13.88 | 0.00 | 8.58 | -19.06 | 258.92 | -26.11 | 135.97 | 0.6007 | 340.0 | 622.2 | |
| 1.07 | -11.00 | 0.67 | -11.00 | -19.59 | 258.51 | -26.52 | 136.17 | 0.6098 | 662.1 | 999999 | |
| 3.94 | -11.00 | 2.45 | -11.00 | -19.36 | 258.44 | -26.59 | 135.82 | 0.6082 | 657.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -22.02 | 257.89 | -27.14 | 138.34 | 0.6385 | 699.0 | 585.2 | |
| 0.00 | 1.97 | 0.00 | 1.21 | -17.52 | 258.32 | -26.71 | 133.41 | 0.5922 | -756.0 | -648.1 | |
| 1.88 | -11.00 | 1.18 | -11.00 | -19.56 | 257.79 | -27.24 | 135.39 | 0.6164 | -725.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -18.74 | 257.54 | -27.49 | 134.13 | 0.6112 | -530.0 | -517.9 | |
| 0.00 | 1.34 | 0.00 | 0.84 | -19.18 | 257.43 | -27.61 | 134.55 | 0.6164 | -716.0 | -634.9 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -18.13 | 257.58 | -27.46 | 133.41 | 0.6054 | -580.0 | -564.2 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -18.65 | 257.31 | -27.73 | 133.78 | 0.6128 | -794.0 | -643.8 | |
| 0.00 | 3.31 | 0.00 | 2.06 | -18.25 | 257.34 | -27.69 | 133.31 | 0.6088 | -845.0 | -749.9 | |
| 0.00 | 1.61 | 0.00 | 1.00 | -17.81 | 257.42 | -27.62 | 132.84 | 0.6041 | -872.0 | -769.1 | |
| 1.25 | 12.44 | 0.80 | 7.91 | -20.16 | 256.95 | -28.08 | 135.24 | 0.6299 | -746.9 | -586.1 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -19.03 | 257.13 | -27.90 | 134.07 | 0.6180 | -461.0 | -499.5 | |
| 0.00 | 2.24 | 0.00 | 1.41 | -19.24 | 256.98 | -28.05 | 134.18 | 0.6213 | -753.0 | -588.0 | |
| 0.00 | 2.60 | 0.00 | 1.61 | -17.79 | 257.20 | -27.83 | 132.59 | 0.6060 | -676.0 | -572.1 | |
| 1.34 | 2.60 | 0.84 | 1.63 | -18.57 | 256.99 | -28.04 | 133.36 | 0.6151 | -779.3 | -723.4 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -19.48 | 256.50 | -28.53 | 133.98 | 0.6281 | -662.0 | -479.2 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -18.66 | 256.58 | -28.45 | 133.06 | 0.6201 | -540.0 | -536.9 | |
| 1.16 | 1.43 | 0.74 | 0.91 | -19.11 | 256.46 | -28.57 | 133.49 | 0.6252 | -865.3 | -878.7 | |
| 9.13 | 15.85 | 5.84 | 10.14 | -19.97 | 256.22 | -28.82 | 134.30 | 0.6352 | -946.5 | -668.4 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -20.39 | 256.02 | -29.01 | 134.60 | 0.6408 | -559.0 | -450.6 | |
| 0.00 | 1.97 | 0.00 | 1.23 | -17.44 | 256.51 | -28.53 | 131.45 | 0.6101 | -790.0 | -637.0 | |
| 2.78 | 7.16 | 1.77 | 4.56 | -19.23 | 256.14 | -28.89 | 133.33 | 0.6294 | -810.2 | -589.2 | |
| 10.56 | 11.73 | 6.69 | 7.43 | -18.79 | 256.19 | -28.84 | 132.84 | 0.6251 | -891.6 | -694.2 | |
| 1.61 | 5.82 | 1.04 | 3.75 | -20.09 | 255.86 | -29.17 | 134.10 | 0.6397 | -602.7 | -399.9 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -17.49 | 256.24 | -28.79 | 131.25 | 0.6132 | -555.0 | -436.3 | |
| 0.00 | 5.28 | 0.00 | 3.36 | -18.82 | 255.78 | -29.25 | 132.48 | 0.6294 | -790.0 | -551.2 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -19.51 | 255.42 | -29.61 | 132.99 | 0.6389 | -487.0 | -412.2 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -19.65 | 255.40 | -29.64 | 133.13 | 0.6403 | -212.0 | -276.8 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -20.73 | 254.90 | -30.13 | 133.95 | 0.6544 | -572.0 | -421.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
