SDO HMI 2011-09-01 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.82 | 419.38 | 52.35 | 261.59 | -19.96 | 258.52 | -25.97 | 137.23 | 0.6084 | 101.2 | -56.9 | |
|
previous
or next observation for the same group /

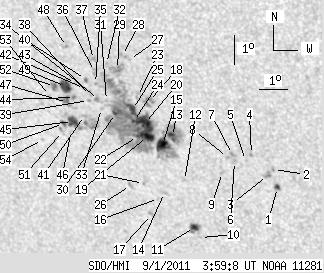

back to the solar disc SDO HMI 2011-09-01 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.60 | 3.49 | 1.58 | 2.13 | -21.83 | 263.22 | -21.27 | 144.80 | 0.5864 | 848.3 | 691.1 | |
| 0.00 | 1.52 | 0.00 | 0.92 | -21.22 | 263.17 | -21.31 | 144.09 | 0.5798 | 776.0 | 687.7 | |
| 0.00 | 4.48 | 0.00 | 2.73 | -21.43 | 262.93 | -21.56 | 144.02 | 0.5843 | 889.0 | 719.2 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -20.74 | 262.48 | -22.01 | 142.69 | 0.5804 | 471.0 | 539.5 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -20.95 | 262.23 | -22.25 | 142.63 | 0.5849 | 708.0 | 610.6 | |
| 0.00 | 2.42 | 0.00 | 1.48 | -21.01 | 261.84 | -22.65 | 142.21 | 0.5888 | 699.0 | 568.3 | |
| 0.00 | 2.24 | 0.00 | 1.37 | -20.77 | 261.81 | -22.68 | 141.91 | 0.5866 | 846.0 | 712.9 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -20.88 | 261.61 | -22.87 | 141.80 | 0.5895 | 669.0 | 597.1 | |
| 0.00 | 1.97 | 0.00 | 1.21 | -21.41 | 261.35 | -23.14 | 142.07 | 0.5974 | 599.0 | 393.3 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -23.74 | 260.13 | -24.35 | 143.16 | 0.6318 | -541.0 | -437.6 | |
| 4.39 | 8.33 | 2.79 | 5.30 | -23.39 | 259.98 | -24.50 | 142.64 | 0.6295 | -878.5 | -598.9 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -21.76 | 259.93 | -24.55 | 140.83 | 0.6132 | -782.0 | -445.8 | |
| 4.75 | 60.35 | 2.93 | 37.41 | -20.27 | 259.77 | -24.72 | 138.95 | 0.5995 | 1136.5 | 550.2 | |
| 0.00 | 1.61 | 0.00 | 1.02 | -22.22 | 259.12 | -25.36 | 140.45 | 0.6249 | 656.0 | 485.4 | |
| 12.54 | -13.00 | 7.79 | -13.00 | -20.56 | 259.36 | -25.12 | 138.84 | 0.6062 | 920.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.85 | -22.45 | 258.86 | -25.62 | 140.41 | 0.6294 | 548.0 | 467.7 | |
| 0.00 | 2.87 | 0.00 | 1.84 | -23.03 | 258.49 | -26.00 | 140.64 | 0.6383 | 733.0 | 667.8 | |
| 0.00 | 7.07 | 0.00 | 4.35 | -19.12 | 259.11 | -25.37 | 136.85 | 0.5942 | 719.0 | 759.4 | |
| 8.51 | 203.62 | 5.30 | 126.87 | -20.32 | 258.87 | -25.62 | 138.01 | 0.6083 | 945.0 | -79.4 | |
| 15.58 | -19.00 | 9.66 | -19.00 | -19.88 | 258.84 | -25.65 | 137.46 | 0.6042 | 1013.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -21.95 | 258.42 | -26.07 | 139.39 | 0.6284 | 758.0 | 555.1 | |
| 1.34 | -19.00 | 0.84 | -19.00 | -20.34 | 258.51 | -25.98 | 137.64 | 0.6118 | 455.3 | 999999 | |
| 0.00 | 4.03 | 0.00 | 2.48 | -18.97 | 258.74 | -25.74 | 136.27 | 0.5963 | 407.0 | 490.2 | |
| 1.25 | -19.00 | 0.78 | -19.00 | -19.83 | 258.45 | -26.03 | 136.99 | 0.6074 | 697.6 | 999999 | |
| 6.98 | -19.00 | 4.33 | -19.00 | -19.43 | 258.49 | -26.00 | 136.54 | 0.6032 | 693.2 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.72 | -22.05 | 257.92 | -26.56 | 138.98 | 0.6337 | 641.0 | 477.4 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -17.74 | 258.66 | -25.83 | 134.64 | 0.5853 | -724.0 | -571.2 | |
| 0.00 | 3.04 | 0.00 | 1.86 | -17.62 | 258.43 | -26.05 | 134.24 | 0.5865 | -580.0 | -738.3 | |
| 0.00 | 12.63 | 0.00 | 7.76 | -18.10 | 258.18 | -26.31 | 134.57 | 0.5936 | -460.0 | -591.4 | |
| 1.43 | -19.00 | 0.89 | -19.00 | -19.60 | 257.85 | -26.64 | 136.06 | 0.6109 | -725.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -19.18 | 257.60 | -26.88 | 135.29 | 0.6093 | -534.0 | -523.5 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -17.92 | 257.81 | -26.67 | 133.96 | 0.5955 | -794.0 | -611.5 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -19.46 | 257.37 | -27.12 | 135.39 | 0.6142 | 215.0 | 127.2 | |
| 0.00 | 4.57 | 0.00 | 2.85 | -19.16 | 257.31 | -27.17 | 134.97 | 0.6119 | -432.0 | -494.4 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -18.62 | 257.30 | -27.18 | 134.30 | 0.6071 | -675.0 | -612.8 | |
| 0.00 | 3.40 | 0.00 | 2.11 | -18.22 | 257.33 | -27.15 | 133.83 | 0.6031 | -717.0 | -696.9 | |
| 0.00 | 3.58 | 0.00 | 2.21 | -17.82 | 257.37 | -27.12 | 133.36 | 0.5991 | -865.0 | -687.5 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -19.04 | 257.05 | -27.44 | 134.55 | 0.6135 | -711.0 | -499.9 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -19.22 | 256.94 | -27.54 | 134.66 | 0.6161 | -804.0 | -704.0 | |
| 1.25 | 1.79 | 0.78 | 1.12 | -18.51 | 256.96 | -27.52 | 133.81 | 0.6094 | -775.0 | -779.7 | |
| 0.00 | 2.15 | 0.00 | 1.36 | -19.74 | 256.70 | -27.78 | 135.04 | 0.6232 | -775.0 | -636.8 | |
| 0.00 | 1.88 | 0.00 | 1.18 | -18.82 | 256.87 | -27.61 | 134.10 | 0.6131 | -726.0 | -553.2 | |
| 0.00 | 1.34 | 0.00 | 0.84 | -18.67 | 256.57 | -27.91 | 133.61 | 0.6147 | -782.0 | -618.7 | |
| 0.00 | 1.70 | 0.00 | 1.07 | -19.15 | 256.45 | -28.04 | 134.07 | 0.6203 | -922.0 | -826.5 | |
| 8.33 | 26.59 | 5.30 | 16.87 | -19.97 | 256.22 | -28.27 | 134.84 | 0.6299 | -938.6 | -618.4 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -20.39 | 256.06 | -28.42 | 135.18 | 0.6352 | -606.0 | -518.8 | |
| 0.00 | 9.85 | 0.00 | 6.23 | -19.33 | 256.16 | -28.33 | 134.01 | 0.6248 | -824.0 | -622.5 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -17.44 | 256.46 | -28.02 | 131.95 | 0.6049 | -777.0 | -699.3 | |
| 9.85 | 11.46 | 6.20 | 7.22 | -18.79 | 256.19 | -28.30 | 133.38 | 0.6197 | -907.6 | -722.4 | |
| 2.15 | 3.04 | 1.37 | 1.95 | -20.06 | 255.87 | -28.62 | 134.60 | 0.6341 | -602.1 | -483.6 | |
| 0.00 | 2.15 | 0.00 | 1.38 | -20.34 | 255.78 | -28.71 | 134.84 | 0.6374 | -391.0 | -361.6 | |
| 2.87 | 5.01 | 1.81 | 3.17 | -18.82 | 255.78 | -28.70 | 133.01 | 0.6239 | -573.6 | -511.3 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -19.14 | 255.54 | -28.95 | 133.16 | 0.6291 | -522.0 | -463.9 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -20.66 | 254.97 | -29.52 | 134.44 | 0.6480 | -545.0 | -470.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
