SDO HMI 2011-09-01 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.41 | 340.59 | 42.26 | 183.52 | 24.83 | 299.75 | 15.27 | 322.47 | 0.3939 | -105.0 | 51.0 | |
|
previous
or next observation for the same group /

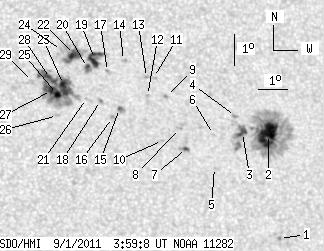

back to the solar disc SDO HMI 2011-09-01 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.67 | 20.61 | 302.93 | 18.44 | 308.78 | 0.3815 | -871.0 | -722.0 | |
| 30.80 | 145.86 | 16.75 | 79.37 | 23.88 | 303.00 | 18.51 | 315.25 | 0.4142 | -1227.2 | -345.9 | |
| 5.19 | 19.16 | 2.81 | 10.36 | 23.97 | 302.11 | 17.62 | 316.74 | 0.4053 | -1061.4 | -779.3 | |
| 0.00 | 2.33 | 0.00 | 1.26 | 24.49 | 301.94 | 17.45 | 317.93 | 0.4091 | -788.0 | -553.7 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 22.90 | 301.00 | 16.51 | 316.45 | 0.3816 | -754.0 | -608.1 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 23.94 | 301.10 | 16.61 | 318.26 | 0.3942 | -777.0 | -543.2 | |
| 2.06 | 3.94 | 1.10 | 2.11 | 23.53 | 300.12 | 15.63 | 319.13 | 0.3791 | -864.6 | -762.0 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 24.17 | 299.95 | 15.47 | 320.58 | 0.3849 | -465.0 | -435.3 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 25.20 | 299.63 | 15.15 | 322.92 | 0.3939 | -880.0 | -667.6 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 23.81 | 299.33 | 14.84 | 321.03 | 0.3742 | -709.0 | -496.8 | |
| 0.00 | 1.79 | 0.00 | 0.97 | 25.82 | 299.26 | 14.78 | 324.59 | 0.3980 | -821.0 | -553.8 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 25.25 | 298.98 | 14.50 | 324.16 | 0.3884 | -871.0 | -681.3 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 25.82 | 299.02 | 14.53 | 325.03 | 0.3958 | -420.0 | -434.9 | |
| 0.00 | 1.79 | 0.00 | 0.97 | 26.39 | 298.29 | 13.81 | 327.22 | 0.3965 | -724.0 | -579.0 | |
| 1.61 | 4.12 | 0.86 | 2.20 | 24.86 | 297.97 | 13.49 | 325.38 | 0.3742 | 864.8 | 755.5 | |
| 0.00 | 2.06 | 0.00 | 1.10 | 24.59 | 297.70 | 13.22 | 325.44 | 0.3681 | 1032.0 | 778.8 | |
| 0.00 | 1.61 | 0.00 | 0.87 | 26.05 | 297.70 | 13.21 | 327.81 | 0.3870 | 519.0 | 312.7 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 25.14 | 297.35 | 12.87 | 327.03 | 0.3721 | 885.0 | 736.6 | |
| 11.10 | 23.91 | 5.97 | 12.84 | 26.48 | 297.29 | 12.81 | 329.21 | 0.3893 | 799.5 | 472.9 | |
| 2.95 | -19.00 | 1.58 | -19.00 | 26.20 | 297.02 | 12.54 | 329.32 | 0.3833 | 1035.9 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 25.21 | 296.88 | 12.40 | 328.09 | 0.3690 | 702.0 | 484.1 | |
| 7.88 | 25.52 | 4.23 | 13.70 | 26.63 | 296.62 | 12.13 | 330.72 | 0.3858 | 960.1 | 411.9 | |
| 3.40 | 89.90 | 1.81 | 47.81 | 25.68 | 296.14 | 11.65 | 330.31 | 0.3691 | 1130.3 | 768.9 | |
| 0.00 | 2.15 | 0.00 | 1.15 | 26.77 | 296.18 | 11.70 | 331.78 | 0.3844 | 78.0 | 125.0 | |
| 3.40 | -23.00 | 1.81 | -23.00 | 25.36 | 295.90 | 11.42 | 330.33 | 0.3629 | 1408.3 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.90 | 24.70 | 295.84 | 11.36 | 329.43 | 0.3533 | 795.0 | 628.9 | |
| 3.04 | -23.00 | 1.62 | -23.00 | 25.50 | 295.71 | 11.23 | 330.93 | 0.3632 | 1370.8 | 999999 | |
| 6.98 | -23.00 | 3.72 | -23.00 | 25.88 | 295.71 | 11.23 | 331.48 | 0.3685 | 908.6 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.00 | 25.80 | 295.09 | 10.60 | 332.69 | 0.3627 | 822.0 | 646.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
