SDO HMI 2011-09-01 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.75 | 358.80 | 47.38 | 193.72 | 24.83 | 299.65 | 15.71 | 321.71 | 0.3981 | 3.3 | 39.2 | |
|
previous
or next observation for the same group /

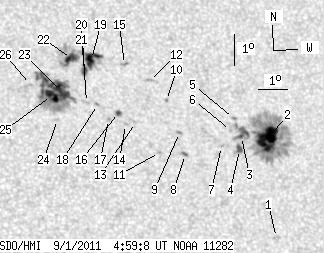

back to the solar disc SDO HMI 2011-09-01 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.24 | 0.00 | 1.20 | 20.75 | 302.88 | 18.94 | 308.40 | 0.3890 | -486.0 | -575.5 | |
| 33.31 | 142.74 | 18.17 | 77.92 | 23.85 | 303.01 | 19.07 | 314.43 | 0.4202 | -1240.4 | -338.5 | |
| 1.25 | 16.66 | 0.68 | 9.05 | 23.95 | 302.12 | 18.18 | 315.88 | 0.4113 | -1125.9 | -859.8 | |
| 3.94 | 5.73 | 2.13 | 3.10 | 23.54 | 301.99 | 18.05 | 315.31 | 0.4056 | -990.6 | -812.0 | |
| 0.00 | 1.70 | 0.00 | 0.93 | 24.53 | 301.92 | 17.98 | 317.21 | 0.4153 | -517.0 | -499.3 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 24.15 | 301.76 | 17.82 | 316.77 | 0.4095 | -764.0 | -548.2 | |
| 0.00 | 1.25 | 0.00 | 0.68 | 23.66 | 301.38 | 17.44 | 316.44 | 0.4001 | -512.0 | -475.8 | |
| 1.43 | 2.87 | 0.77 | 1.54 | 23.45 | 300.11 | 16.17 | 318.07 | 0.3840 | -778.5 | -762.1 | |
| 0.00 | 2.42 | 0.00 | 1.30 | 24.15 | 299.99 | 16.06 | 319.56 | 0.3907 | -522.0 | -362.7 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 25.18 | 299.68 | 15.74 | 321.89 | 0.3995 | -806.0 | -644.5 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 23.54 | 299.23 | 15.29 | 319.74 | 0.3757 | 438.0 | 278.4 | |
| 0.00 | 3.22 | 0.00 | 1.74 | 25.84 | 299.17 | 15.24 | 323.83 | 0.4025 | -739.0 | -606.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 24.52 | 298.52 | 14.59 | 322.75 | 0.3802 | 79.0 | 132.1 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 24.46 | 298.17 | 14.24 | 323.30 | 0.3761 | 583.0 | 543.4 | |
| 0.00 | 2.96 | 0.00 | 1.60 | 26.37 | 298.37 | 14.43 | 326.07 | 0.4018 | -967.0 | -640.1 | |
| 2.24 | 2.96 | 1.20 | 1.58 | 24.85 | 297.98 | 14.04 | 324.33 | 0.3791 | 898.8 | 865.9 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 24.64 | 297.61 | 13.67 | 324.65 | 0.3730 | 1042.0 | 882.2 | |
| 0.00 | 1.70 | 0.00 | 0.91 | 25.12 | 297.29 | 13.35 | 326.08 | 0.3762 | 844.0 | 612.5 | |
| 13.25 | 62.95 | 7.14 | 33.87 | 26.57 | 297.24 | 13.31 | 328.40 | 0.3946 | 815.7 | 342.8 | |
| 0.00 | 3.31 | 0.00 | 1.77 | 25.20 | 296.92 | 12.98 | 326.91 | 0.3739 | 551.0 | 403.3 | |
| 4.39 | -19.00 | 2.36 | -19.00 | 26.22 | 296.96 | 13.02 | 328.41 | 0.3877 | 959.4 | 999999 | |
| 8.15 | -19.00 | 4.38 | -19.00 | 26.62 | 296.56 | 12.62 | 329.77 | 0.3896 | 992.2 | 999999 | |
| 11.55 | 96.17 | 6.16 | 51.22 | 25.57 | 296.10 | 12.16 | 329.12 | 0.3718 | 1078.0 | 709.6 | |
| 0.00 | 1.70 | 0.00 | 0.90 | 24.68 | 295.87 | 11.94 | 328.19 | 0.3580 | 759.0 | 582.4 | |
| 8.24 | -23.00 | 4.39 | -23.00 | 25.45 | 295.74 | 11.81 | 329.66 | 0.3673 | 1435.8 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 25.82 | 295.06 | 11.12 | 331.62 | 0.3669 | 785.0 | 602.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
