SDO HMI 2011-09-01 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.24 | 425.05 | 56.16 | 261.36 | -19.94 | 258.43 | -24.41 | 138.93 | 0.5937 | 116.9 | -68.8 | |
|
previous
or next observation for the same group /

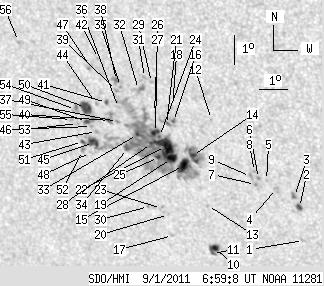

back to the solar disc SDO HMI 2011-09-01 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 1.09 | -22.94 | 263.18 | -19.66 | 147.98 | 0.5864 | 571.0 | 505.6 | |
| 2.96 | 3.40 | 1.78 | 2.05 | -21.79 | 263.21 | -19.63 | 146.87 | 0.5728 | 846.8 | 572.2 | |
| 1.34 | 2.60 | 0.81 | 1.56 | -21.42 | 263.09 | -19.75 | 146.32 | 0.5694 | 828.3 | 757.5 | |
| 0.00 | 2.24 | 0.00 | 1.35 | -21.17 | 262.51 | -20.34 | 145.29 | 0.5713 | 805.0 | 650.8 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -20.91 | 262.20 | -20.64 | 144.61 | 0.5708 | 840.0 | 569.4 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -20.86 | 261.93 | -20.91 | 144.20 | 0.5724 | 857.0 | 742.2 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -21.07 | 261.79 | -21.05 | 144.26 | 0.5760 | 711.0 | 607.1 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -20.62 | 261.82 | -21.02 | 143.81 | 0.5707 | 800.0 | 709.5 | |
| 0.00 | 2.87 | 0.00 | 1.73 | -20.80 | 261.66 | -21.18 | 143.80 | 0.5741 | 695.0 | 572.9 | |
| 4.12 | 7.97 | 2.59 | 5.01 | -23.38 | 259.96 | -22.88 | 144.46 | 0.6162 | -850.5 | -589.2 | |
| 0.27 | -10.00 | 0.17 | -10.00 | -23.56 | 259.86 | -22.99 | 144.52 | 0.6190 | -508.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -18.92 | 260.58 | -22.26 | 140.28 | 0.5630 | 712.0 | 537.8 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -21.88 | 259.98 | -22.86 | 142.91 | 0.6000 | -299.0 | -232.3 | |
| 6.72 | 307.34 | 4.09 | 189.04 | -20.18 | 259.73 | -23.11 | 140.71 | 0.5841 | 1092.9 | -13.0 | |
| 10.12 | -14.00 | 6.20 | -14.00 | -20.54 | 259.35 | -23.49 | 140.68 | 0.5912 | 976.5 | 999999 | |
| 1.52 | 11.19 | 0.92 | 6.79 | -19.06 | 259.24 | -23.61 | 138.81 | 0.5769 | 979.3 | 613.1 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -23.00 | 258.52 | -24.32 | 142.43 | 0.6239 | 808.0 | 566.5 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -18.59 | 259.27 | -23.57 | 138.28 | 0.5716 | 440.0 | 456.6 | |
| 6.27 | -14.00 | 3.85 | -14.00 | -20.33 | 258.96 | -23.88 | 139.98 | 0.5924 | 968.5 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -22.27 | 258.52 | -24.33 | 141.64 | 0.6165 | 585.0 | 476.8 | |
| 0.63 | -16.00 | 0.38 | -16.00 | -19.17 | 258.97 | -23.87 | 138.63 | 0.5805 | 672.1 | 999999 | |
| 19.25 | -14.00 | 11.79 | -14.00 | -19.93 | 258.82 | -24.02 | 139.34 | 0.5896 | 1011.7 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.12 | -22.08 | 258.30 | -24.54 | 141.19 | 0.6163 | 739.0 | 644.2 | |
| 0.90 | -14.00 | 0.55 | -14.00 | -19.60 | 258.66 | -24.18 | 138.77 | 0.5877 | 848.1 | 999999 | |
| 1.43 | -14.00 | 0.88 | -14.00 | -20.32 | 258.51 | -24.34 | 139.44 | 0.5965 | 489.2 | 999999 | |
| 3.58 | -14.00 | 2.19 | -14.00 | -19.47 | 258.54 | -24.30 | 138.48 | 0.5875 | 864.8 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -18.79 | 258.61 | -24.23 | 137.75 | 0.5800 | 504.0 | 404.2 | |
| 1.79 | -14.00 | 1.10 | -14.00 | -19.85 | 258.34 | -24.51 | 138.70 | 0.5933 | 547.2 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.81 | -17.78 | 258.66 | -24.19 | 136.55 | 0.5694 | -865.0 | -685.4 | |
| 0.00 | 1.34 | 0.00 | 0.85 | -22.03 | 257.84 | -25.00 | 140.63 | 0.6198 | 661.0 | 566.3 | |
| 0.00 | 1.52 | 0.00 | 0.92 | -17.63 | 258.43 | -24.41 | 136.10 | 0.5701 | -859.0 | -692.8 | |
| 0.00 | 7.52 | 0.00 | 4.55 | -18.05 | 258.16 | -24.68 | 136.31 | 0.5769 | -747.0 | -684.8 | |
| 1.43 | -14.00 | 0.88 | -14.00 | -19.57 | 257.89 | -24.96 | 137.86 | 0.5947 | -734.8 | 999999 | |
| 3.31 | -14.00 | 2.05 | -14.00 | -20.07 | 257.45 | -25.40 | 137.96 | 0.6038 | -659.0 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -17.98 | 257.54 | -25.30 | 135.52 | 0.5824 | -843.0 | -696.8 | |
| 0.00 | 1.79 | 0.00 | 1.10 | -18.69 | 257.36 | -25.48 | 136.20 | 0.5911 | -710.0 | -624.2 | |
| 0.00 | 1.88 | 0.00 | 1.16 | -19.17 | 257.24 | -25.60 | 136.66 | 0.5968 | -563.0 | -395.3 | |
| 0.00 | 6.27 | 0.00 | 3.81 | -17.79 | 257.43 | -25.41 | 135.15 | 0.5816 | -897.0 | -768.9 | |
| 0.00 | 1.97 | 0.00 | 1.20 | -18.12 | 257.38 | -25.46 | 135.52 | 0.5854 | -820.0 | -683.3 | |
| 1.79 | 8.87 | 1.11 | 5.47 | -19.15 | 256.96 | -25.88 | 136.33 | 0.5994 | -831.0 | -729.5 | |
| 1.61 | 1.97 | 0.99 | 1.21 | -18.55 | 256.95 | -25.89 | 135.58 | 0.5936 | -808.8 | -841.0 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -17.09 | 256.90 | -25.94 | 133.67 | 0.5802 | -762.0 | -586.8 | |
| 0.00 | 1.97 | 0.00 | 1.23 | -19.56 | 256.43 | -26.42 | 136.24 | 0.6084 | -852.0 | -681.1 | |
| 0.00 | 1.79 | 0.00 | 1.10 | -18.60 | 256.59 | -26.25 | 135.25 | 0.5977 | -779.0 | -649.4 | |
| 7.16 | -14.00 | 4.49 | -14.00 | -19.94 | 256.25 | -26.59 | 136.51 | 0.6137 | -944.5 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -19.40 | 256.27 | -26.57 | 135.89 | 0.6083 | -777.0 | -676.2 | |
| 0.00 | 2.60 | 0.00 | 1.59 | -17.37 | 256.58 | -26.27 | 133.68 | 0.5862 | -720.0 | -629.5 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -20.29 | 256.08 | -26.77 | 136.74 | 0.6186 | -538.0 | -447.2 | |
| 2.51 | 5.28 | 1.56 | 3.29 | -19.24 | 256.12 | -26.72 | 135.53 | 0.6082 | -746.4 | -857.1 | |
| 11.19 | 12.00 | 6.94 | 7.44 | -18.76 | 256.17 | -26.67 | 135.00 | 0.6033 | -898.7 | -632.7 | |
| 1.34 | -14.00 | 0.84 | -14.00 | -19.93 | 255.85 | -26.99 | 136.08 | 0.6173 | -539.7 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.52 | -20.24 | 255.80 | -27.05 | 136.39 | 0.6208 | -494.0 | -429.9 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -19.32 | 255.78 | -27.06 | 135.28 | 0.6123 | -534.0 | -426.0 | |
| 0.00 | 5.10 | 0.00 | 3.18 | -18.85 | 255.80 | -27.05 | 134.72 | 0.6078 | -704.0 | -495.5 | |
| 0.00 | 1.52 | 0.00 | 0.95 | -19.20 | 255.59 | -27.25 | 134.93 | 0.6131 | -576.0 | -407.0 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -16.70 | 254.11 | -28.73 | 130.28 | 0.6058 | -582.0 | -560.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
