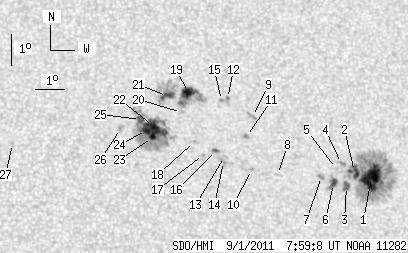

SDO HMI 2011-09-01 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.88 | 389.44 | 43.60 | 212.03 | 24.93 | 299.50 | 17.21 | 319.53 | 0.4147 | -248.7 | 92.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-01 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.46 | 165.22 | 16.24 | 91.12 | 23.81 | 303.15 | 20.86 | 312.02 | 0.4403 | -1263.8 | -362.3 | |
| 7.52 | -1.00 | 4.14 | -1.00 | 24.02 | 302.59 | 20.29 | 313.12 | 0.4358 | -1001.0 | 999999 | |
| 5.46 | 5.64 | 2.99 | 3.09 | 23.56 | 302.23 | 19.93 | 312.73 | 0.4272 | -1044.4 | -791.0 | |
| 0.00 | 2.60 | 0.00 | 1.43 | 24.29 | 302.17 | 19.88 | 314.15 | 0.4337 | -723.0 | -606.6 | |
| 0.00 | 1.52 | 0.00 | 0.83 | 24.14 | 301.97 | 19.68 | 314.14 | 0.4300 | -791.0 | -522.5 | |
| 4.93 | 8.24 | 2.69 | 4.50 | 23.67 | 301.79 | 19.50 | 313.52 | 0.4233 | -1062.2 | -726.2 | |
| 0.00 | 3.22 | 0.00 | 1.76 | 23.91 | 301.41 | 19.11 | 314.48 | 0.4213 | -820.0 | -718.9 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 24.03 | 299.89 | 17.59 | 316.90 | 0.4058 | -289.0 | -165.2 | |
| 0.00 | 3.40 | 0.00 | 1.86 | 25.90 | 299.29 | 16.99 | 321.09 | 0.4203 | -976.0 | -755.9 | |
| 0.00 | 1.34 | 0.00 | 0.73 | 24.22 | 299.01 | 16.72 | 318.61 | 0.3984 | -634.0 | -485.7 | |
| 0.00 | 2.87 | 0.00 | 1.56 | 25.27 | 298.98 | 16.69 | 320.50 | 0.4100 | -1003.0 | -670.6 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 26.50 | 298.49 | 16.20 | 323.32 | 0.4197 | -831.0 | -751.4 | |
| 0.00 | 1.97 | 0.00 | 1.06 | 24.66 | 298.14 | 15.84 | 320.83 | 0.3944 | 532.0 | 538.8 | |
| 0.00 | 3.13 | 0.00 | 1.69 | 24.50 | 298.08 | 15.79 | 320.65 | 0.3921 | 828.0 | 701.4 | |
| 0.00 | 1.97 | 0.00 | 1.07 | 26.45 | 298.27 | 15.98 | 323.58 | 0.4169 | -926.0 | -732.4 | |
| 1.61 | 2.96 | 0.87 | 1.59 | 24.86 | 297.88 | 15.59 | 321.60 | 0.3943 | 846.3 | 864.8 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 24.75 | 297.42 | 15.13 | 322.21 | 0.3883 | 951.0 | 803.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 25.17 | 297.16 | 14.87 | 323.38 | 0.3909 | 682.0 | 408.3 | |
| 12.18 | 34.30 | 6.61 | 18.61 | 26.74 | 297.16 | 14.86 | 325.90 | 0.4103 | 947.7 | 494.6 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 26.11 | 296.83 | 14.53 | 325.49 | 0.3994 | 866.0 | 644.6 | |
| 6.63 | 33.67 | 3.58 | 18.22 | 26.63 | 296.41 | 14.11 | 327.04 | 0.4024 | 1008.6 | 266.8 | |
| 2.78 | 105.67 | 1.49 | 56.61 | 25.69 | 295.81 | 13.51 | 326.68 | 0.3850 | 1288.6 | 703.1 | |
| 2.33 | -22.00 | 1.25 | -22.00 | 25.34 | 295.73 | 13.44 | 326.27 | 0.3798 | 1503.2 | 999999 | |
| 3.13 | -22.00 | 1.68 | -22.00 | 25.57 | 295.55 | 13.26 | 326.97 | 0.3812 | 1439.3 | 999999 | |
| 3.85 | -22.00 | 2.06 | -22.00 | 25.92 | 295.38 | 13.09 | 327.85 | 0.3844 | 966.7 | 999999 | |
| 0.00 | 3.22 | 0.00 | 1.72 | 25.65 | 294.67 | 12.37 | 328.83 | 0.3748 | 998.0 | 744.7 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 25.25 | 290.95 | 8.65 | 336.39 | 0.3413 | -859.0 | -636.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
