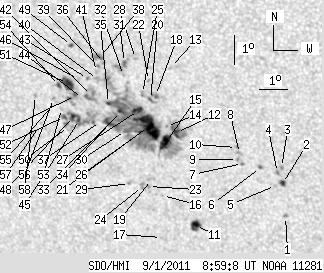

SDO HMI 2011-09-01 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.93 | 426.91 | 57.85 | 260.27 | -19.97 | 258.38 | -23.37 | 140.17 | 0.5845 | 175.1 | -57.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-01 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.14 | -22.93 | 263.17 | -18.58 | 149.38 | 0.5783 | 738.0 | 642.1 | |
| 2.60 | 3.58 | 1.56 | 2.14 | -21.78 | 263.22 | -18.52 | 148.34 | 0.5642 | 808.7 | 778.5 | |
| 0.00 | 1.52 | 0.00 | 0.91 | -21.23 | 263.26 | -18.48 | 147.83 | 0.5572 | 793.0 | 645.6 | |
| 0.00 | 1.52 | 0.00 | 0.91 | -21.41 | 263.10 | -18.64 | 147.80 | 0.5606 | 884.0 | 810.8 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -21.86 | 262.97 | -18.78 | 148.08 | 0.5670 | 616.0 | 485.5 | |
| 1.43 | 1.52 | 0.86 | 0.91 | -21.26 | 262.54 | -19.21 | 146.88 | 0.5633 | 747.4 | 765.0 | |
| 0.00 | 2.06 | 0.00 | 1.24 | -21.15 | 261.93 | -19.81 | 145.95 | 0.5668 | 575.0 | 497.3 | |
| 0.00 | 2.42 | 0.00 | 1.45 | -20.81 | 261.88 | -19.87 | 145.51 | 0.5633 | 863.0 | 696.0 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -21.02 | 261.78 | -19.97 | 145.61 | 0.5665 | 730.0 | 600.0 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -20.61 | 261.80 | -19.95 | 145.20 | 0.5616 | 907.0 | 729.1 | |
| 6.63 | 9.04 | 4.13 | 5.63 | -23.40 | 259.93 | -21.81 | 145.74 | 0.6080 | -797.5 | -599.9 | |
| 4.03 | 265.77 | 2.43 | 161.68 | -20.20 | 259.78 | -21.96 | 142.13 | 0.5740 | 1134.6 | 81.7 | |
| 0.00 | 1.61 | 0.00 | 0.95 | -18.00 | 259.88 | -21.86 | 139.66 | 0.5493 | -561.0 | -453.9 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -20.01 | 259.46 | -22.28 | 141.52 | 0.5748 | 852.0 | 710.8 | |
| 11.10 | -12.00 | 6.75 | -12.00 | -20.56 | 259.34 | -22.40 | 142.00 | 0.5818 | 920.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -22.40 | 258.93 | -22.81 | 143.52 | 0.6051 | 618.0 | 524.5 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -23.89 | 258.63 | -23.12 | 144.70 | 0.6235 | 627.0 | 532.6 | |
| 0.00 | 3.31 | 0.00 | 1.99 | -18.97 | 259.23 | -22.51 | 140.02 | 0.5657 | 996.0 | 859.2 | |
| 0.00 | 2.24 | 0.00 | 1.39 | -21.87 | 258.64 | -23.11 | 142.59 | 0.6019 | 789.0 | 612.7 | |
| 0.99 | 3.67 | 0.59 | 2.21 | -19.12 | 259.04 | -22.71 | 139.95 | 0.5691 | 636.1 | 605.8 | |
| 29.28 | -12.00 | 17.78 | -12.00 | -20.04 | 258.83 | -22.92 | 140.78 | 0.5808 | 995.3 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -18.48 | 259.06 | -22.69 | 139.21 | 0.5621 | 659.0 | 528.2 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -22.12 | 258.49 | -23.26 | 142.69 | 0.6058 | 807.0 | 676.9 | |
| 0.00 | 3.13 | 0.00 | 1.95 | -22.13 | 258.27 | -23.48 | 142.45 | 0.6077 | 668.0 | 581.6 | |
| 0.00 | 2.24 | 0.00 | 1.35 | -18.93 | 258.79 | -22.96 | 139.42 | 0.5694 | 597.0 | 525.2 | |
| 0.99 | -12.00 | 0.60 | -12.00 | -20.26 | 258.51 | -23.23 | 140.66 | 0.5859 | 370.5 | 999999 | |
| 4.39 | -12.00 | 2.66 | -12.00 | -19.51 | 258.56 | -23.19 | 139.84 | 0.5776 | 808.2 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.12 | -17.76 | 258.71 | -23.04 | 137.89 | 0.5579 | -833.0 | -708.4 | |
| 0.00 | 1.43 | 0.00 | 0.89 | -22.05 | 257.82 | -23.93 | 141.84 | 0.6107 | 763.0 | 650.6 | |
| 1.52 | -12.00 | 0.93 | -12.00 | -20.22 | 257.99 | -23.75 | 140.00 | 0.5902 | -115.1 | 999999 | |
| 2.06 | 8.87 | 1.23 | 5.32 | -17.92 | 258.31 | -23.44 | 137.60 | 0.5634 | -839.2 | -554.0 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -18.36 | 258.21 | -23.54 | 138.03 | 0.5689 | 505.0 | 353.5 | |
| 1.70 | -12.00 | 1.04 | -12.00 | -19.58 | 257.92 | -23.83 | 139.16 | 0.5842 | -652.5 | 999999 | |
| 6.09 | -12.00 | 3.74 | -12.00 | -20.01 | 257.46 | -24.29 | 139.14 | 0.5929 | -447.7 | 999999 | |
| 1.52 | -12.00 | 0.93 | -12.00 | -19.33 | 257.54 | -24.21 | 138.42 | 0.5852 | -551.2 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.86 | -17.96 | 257.57 | -24.18 | 136.77 | 0.5710 | -827.0 | -671.0 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -19.96 | 257.15 | -24.60 | 138.72 | 0.5952 | -408.0 | -429.1 | |
| 2.69 | 5.73 | 1.62 | 3.45 | -17.80 | 257.45 | -24.29 | 136.43 | 0.5705 | -873.3 | -721.0 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -18.07 | 257.34 | -24.40 | 136.65 | 0.5743 | -728.0 | -676.1 | |
| 0.00 | 3.85 | 0.00 | 2.34 | -18.54 | 257.27 | -24.47 | 137.15 | 0.5797 | -766.0 | -711.4 | |
| 0.00 | 1.70 | 0.00 | 1.03 | -18.27 | 257.28 | -24.47 | 136.83 | 0.5770 | -756.0 | -583.9 | |
| 0.00 | 12.27 | 0.00 | 7.50 | -19.09 | 256.97 | -24.77 | 137.49 | 0.5881 | -638.0 | -676.3 | |
| 0.00 | 1.61 | 0.00 | 0.98 | -18.53 | 256.92 | -24.82 | 136.73 | 0.5830 | -914.0 | -846.2 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -19.21 | 256.64 | -25.11 | 137.25 | 0.5925 | -436.0 | -716.3 | |
| 1.34 | 30.54 | 0.83 | 18.88 | -19.94 | 256.41 | -25.34 | 137.86 | 0.6018 | -920.7 | -685.7 | |
| 0.00 | 1.52 | 0.00 | 0.93 | -18.58 | 256.60 | -25.15 | 136.43 | 0.5866 | -771.0 | -624.6 | |
| 0.99 | 8.60 | 0.61 | 5.30 | -19.13 | 256.40 | -25.34 | 136.88 | 0.5939 | -932.6 | -749.8 | |
| 1.52 | -45.00 | 0.94 | -45.00 | -19.85 | 256.21 | -25.54 | 137.53 | 0.6028 | -1057.2 | 999999 | |
| 1.79 | 2.06 | 1.08 | 1.25 | -17.45 | 256.53 | -25.22 | 134.93 | 0.5763 | -713.3 | -474.7 | |
| 0.00 | 6.54 | 0.00 | 4.07 | -20.20 | 255.97 | -25.78 | 137.69 | 0.6085 | -355.0 | -397.4 | |
| 8.69 | 14.51 | 5.33 | 8.91 | -18.74 | 256.18 | -25.56 | 136.16 | 0.5922 | -946.4 | -665.7 | |
| 1.79 | -45.00 | 1.11 | -45.00 | -19.87 | 255.88 | -25.86 | 137.20 | 0.6060 | -670.3 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -19.60 | 255.82 | -25.92 | 136.82 | 0.6040 | -452.0 | -420.6 | |
| 1.79 | -51.00 | 1.10 | -51.00 | -18.82 | 255.89 | -25.86 | 135.94 | 0.5959 | -615.8 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.89 | -19.37 | 255.65 | -26.10 | 136.36 | 0.6035 | -328.0 | -329.2 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -19.27 | 255.59 | -26.15 | 136.18 | 0.6031 | -648.0 | -447.5 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -20.19 | 254.96 | -26.78 | 136.60 | 0.6178 | -590.0 | -453.5 | |
| 0.00 | 1.34 | 0.00 | 0.84 | -19.21 | 254.96 | -26.79 | 135.43 | 0.6086 | -587.0 | -452.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
