SDO HMI 2011-09-01 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.77 | 390.94 | 50.58 | 213.68 | 24.75 | 299.90 | 18.15 | 317.79 | 0.4226 | -5.3 | -11.4 | |
|
previous
or next observation for the same group /

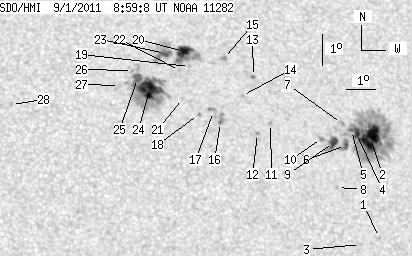

back to the solar disc SDO HMI 2011-09-01 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.49 | 20.64 | 303.01 | 21.27 | 305.33 | 0.4178 | -689.0 | -537.6 | |
| 26.86 | 178.82 | 14.86 | 98.98 | 23.78 | 303.20 | 21.45 | 311.25 | 0.4470 | -1273.2 | -366.0 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 20.45 | 302.33 | 20.58 | 305.73 | 0.4075 | -852.0 | -734.1 | |
| 4.66 | -2.00 | 2.57 | -2.00 | 23.93 | 302.73 | 20.98 | 312.09 | 0.4429 | -1117.4 | 999999 | |
| 1.34 | -2.00 | 0.74 | -2.00 | 24.03 | 302.57 | 20.82 | 312.47 | 0.4420 | -951.5 | 999999 | |
| 3.22 | 21.13 | 1.77 | 11.59 | 23.57 | 302.28 | 20.53 | 311.98 | 0.4343 | -1028.8 | -756.2 | |
| 0.00 | 3.04 | 0.00 | 1.68 | 24.26 | 302.25 | 20.51 | 313.29 | 0.4406 | -690.0 | -643.6 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 22.26 | 301.79 | 20.05 | 310.09 | 0.4164 | -642.0 | -452.0 | |
| 6.90 | -6.00 | 3.78 | -6.00 | 23.68 | 301.87 | 20.13 | 312.70 | 0.4306 | -1053.7 | 999999 | |
| 0.00 | 3.58 | 0.00 | 1.96 | 23.82 | 301.48 | 19.73 | 313.49 | 0.4274 | -930.0 | -697.4 | |
| 0.00 | 1.61 | 0.00 | 0.88 | 24.36 | 299.77 | 18.02 | 316.87 | 0.4140 | 663.0 | 484.1 | |
| 0.00 | 1.34 | 0.00 | 0.73 | 24.06 | 299.27 | 17.53 | 317.06 | 0.4054 | 722.0 | 570.8 | |
| 1.16 | 1.61 | 0.64 | 0.88 | 25.87 | 299.40 | 17.66 | 320.04 | 0.4267 | -860.5 | -835.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 25.28 | 298.93 | 17.18 | 319.76 | 0.4152 | -818.0 | -678.7 | |
| 0.00 | 3.40 | 0.00 | 1.86 | 26.49 | 298.44 | 16.69 | 322.52 | 0.4242 | -1004.0 | -823.4 | |
| 1.61 | 5.46 | 0.87 | 2.95 | 24.45 | 298.04 | 16.30 | 319.71 | 0.3968 | 818.1 | 553.1 | |
| 0.00 | 5.37 | 0.00 | 2.90 | 24.81 | 297.85 | 16.10 | 320.66 | 0.3989 | 568.0 | 752.9 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 24.73 | 297.32 | 15.57 | 321.41 | 0.3926 | 862.0 | 736.9 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 26.27 | 297.21 | 15.46 | 324.16 | 0.4100 | 525.0 | 452.9 | |
| 10.84 | 30.45 | 5.89 | 16.56 | 26.76 | 297.07 | 15.32 | 325.16 | 0.4147 | 966.4 | 534.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 25.26 | 296.83 | 15.09 | 323.15 | 0.3941 | 677.0 | 487.9 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 26.15 | 296.84 | 15.10 | 324.59 | 0.4052 | 843.0 | 653.8 | |
| 4.48 | 24.54 | 2.43 | 13.31 | 26.71 | 296.43 | 14.68 | 326.17 | 0.4084 | 967.8 | 420.9 | |
| 25.43 | 98.95 | 13.66 | 53.11 | 25.58 | 295.73 | 13.98 | 325.64 | 0.3878 | 1215.8 | 600.5 | |
| 6.27 | -24.00 | 3.37 | -24.00 | 25.94 | 295.36 | 13.61 | 326.90 | 0.3891 | 927.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 26.20 | 295.21 | 13.47 | 327.56 | 0.3913 | 756.0 | 649.2 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 25.73 | 294.71 | 12.96 | 327.80 | 0.3809 | 940.0 | 754.2 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 25.21 | 290.97 | 9.23 | 334.98 | 0.3445 | -925.0 | -702.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
