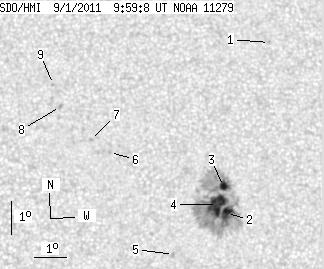

SDO HMI 2011-09-01 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.59 | 219.26 | 19.55 | 111.06 | 13.59 | 291.62 | 10.42 | 302.89 | 0.2107 | -736.6 | -414.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-01 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.69 | 18.40 | 293.59 | 12.40 | 314.08 | 0.2848 | 849.0 | 645.1 | |
| 9.22 | 210.50 | 4.67 | 106.63 | 13.21 | 291.91 | 10.71 | 300.59 | 0.2112 | -1150.9 | -471.0 | |
| 5.28 | -2.00 | 2.68 | -2.00 | 14.03 | 291.85 | 10.66 | 304.05 | 0.2175 | -1156.3 | 999999 | |
| 24.09 | -2.00 | 12.20 | -2.00 | 13.49 | 291.64 | 10.44 | 302.38 | 0.2096 | -1270.1 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.81 | 11.99 | 290.20 | 9.00 | 299.15 | 0.1760 | 856.0 | 700.3 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 15.13 | 288.29 | 7.09 | 319.42 | 0.1841 | 705.0 | 580.0 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 15.54 | 287.70 | 6.51 | 323.22 | 0.1832 | 930.0 | 745.4 | |
| 0.00 | 2.15 | 0.00 | 1.08 | 16.56 | 286.79 | 5.59 | 330.28 | 0.1891 | 958.0 | 737.6 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 17.24 | 286.58 | 5.39 | 332.89 | 0.1976 | 851.0 | 650.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
