group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11282	89.71	390.06	49.22	214.50	24.69	299.84	19.19	316.20	0.4330	-12.9	-9.8

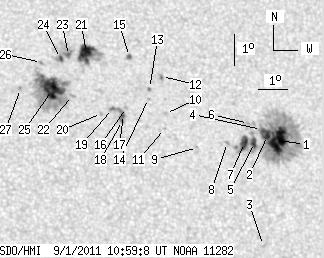

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-09-01 10:59:08 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	23.55	198.21	13.12	110.45	23.69	303.30	22.65	309.71	0.4603	-1268.4	-406.4
2	3.76	-1.00	2.09	-1.00	23.86	302.93	22.29	310.44	0.4575	-1183.4	999999
3	0.00	2.06	0.00	1.12	20.43	302.23	21.58	304.56	0.4203	-849.0	-654.9
4	0.54	-1.00	0.30	-1.00	24.06	302.76	22.11	311.00	0.4572	-867.7	999999
5	4.74	-1.00	2.63	-1.00	23.66	302.43	21.79	310.64	0.4499	-985.1	999999
6	0.00	4.74	0.00	2.64	24.27	302.33	21.68	311.87	0.4541	-670.0	-567.9
7	7.79	-1.00	4.31	-1.00	23.68	302.08	21.43	311.09	0.4459	-1069.8	999999
8	0.00	2.33	0.00	1.28	23.70	301.48	20.84	311.86	0.4391	-888.0	-530.6
9	0.00	0.98	0.00	0.54	23.59	300.41	19.76	313.03	0.4256	644.0	508.2
10	0.00	1.70	0.00	0.93	24.71	299.46	18.81	316.36	0.4262	-781.0	-576.2
11	0.00	1.07	0.00	0.59	24.23	299.35	18.70	315.66	0.4201	555.0	427.8
12	0.00	1.79	0.00	0.99	25.89	299.51	18.86	318.32	0.4392	-945.0	-775.8
13	0.00	1.25	0.00	0.69	25.52	299.02	18.37	318.39	0.4302	-824.0	-758.6
14	0.00	0.90	0.00	0.49	25.20	298.94	18.29	317.97	0.4259	-753.0	-637.6
15	2.06	2.69	1.13	1.48	26.57	298.48	17.83	320.92	0.4363	-850.9	-789.7
16	0.00	1.43	0.00	0.78	24.95	298.13	17.48	318.73	0.4146	644.0	460.2
17	1.07	10.39	0.58	5.64	24.73	297.99	17.34	318.55	0.4107	840.8	856.2
18	1.61	-17.00	0.87	-17.00	24.54	297.93	17.28	318.31	0.4080	833.3	999999
19	1.61	-17.00	0.87	-17.00	24.93	297.64	16.99	319.46	0.4093	836.9	999999
20	0.00	1.52	0.00	0.82	24.79	297.23	16.58	319.85	0.4035	904.0	665.4
21	17.73	32.14	9.68	17.57	26.71	296.98	16.33	323.45	0.4236	996.8	392.6
22	0.00	2.24	0.00	1.21	25.39	296.30	15.66	322.40	0.4013	750.0	632.8
23	2.06	19.25	1.12	10.48	26.67	296.34	15.69	324.41	0.4171	1002.5	475.4
24	2.06	-23.00	1.12	-23.00	26.58	296.05	15.40	324.76	0.4133	1029.1	999999
25	21.13	101.88	11.40	54.91	25.60	295.64	14.99	323.90	0.3975	1241.5	601.7
26	0.00	1.88	0.00	1.02	26.48	295.37	14.72	325.75	0.4058	800.0	515.7
27	0.00	1.61	0.00	0.87	25.67	294.54	13.89	325.97	0.3882	973.0	823.5

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
