SDO HMI 2011-09-01 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.68 | 385.79 | 46.63 | 212.89 | 24.68 | 299.85 | 19.76 | 315.44 | 0.4392 | -39.5 | -6.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-01 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

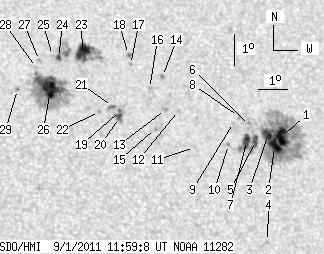

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.07 | 199.17 | 7.32 | 111.43 | 23.78 | 303.44 | 23.35 | 309.13 | 0.4694 | -1099.2 | -392.4 | |
| 8.50 | -1.00 | 4.75 | -1.00 | 23.48 | 303.14 | 23.04 | 308.91 | 0.4632 | -1374.9 | 999999 | |
| 5.19 | -1.00 | 2.90 | -1.00 | 23.83 | 302.95 | 22.85 | 309.75 | 0.4640 | -1122.3 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.79 | 20.52 | 302.39 | 22.29 | 303.99 | 0.4302 | -779.0 | -609.9 | |
| 5.73 | -1.00 | 3.19 | -1.00 | 23.66 | 302.49 | 22.39 | 309.96 | 0.4571 | -980.7 | 999999 | |
| 0.00 | 3.31 | 0.00 | 1.85 | 24.18 | 302.37 | 22.27 | 311.02 | 0.4601 | -530.0 | -666.1 | |
| 7.97 | -1.00 | 4.42 | -1.00 | 23.68 | 302.17 | 22.07 | 310.35 | 0.4534 | -1053.7 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.30 | 24.48 | 302.03 | 21.93 | 311.95 | 0.4589 | -618.0 | -535.9 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 24.30 | 301.82 | 21.72 | 311.88 | 0.4548 | -790.0 | -649.6 | |
| 0.00 | 1.43 | 0.00 | 0.79 | 23.61 | 301.52 | 21.42 | 310.98 | 0.4451 | -845.0 | -635.2 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 23.57 | 300.31 | 20.21 | 312.40 | 0.4306 | 542.0 | 443.7 | |
| 0.00 | 1.43 | 0.00 | 0.79 | 24.76 | 299.94 | 19.84 | 315.04 | 0.4380 | 685.0 | 429.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 24.81 | 299.49 | 19.39 | 315.74 | 0.4336 | -922.0 | -774.8 | |
| 0.00 | 1.16 | 0.00 | 0.64 | 25.86 | 299.56 | 19.46 | 317.46 | 0.4452 | -850.0 | -802.3 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 24.22 | 299.04 | 18.94 | 315.30 | 0.4227 | 461.0 | 352.7 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 25.49 | 299.03 | 18.94 | 317.56 | 0.4358 | -806.0 | -674.3 | |
| 0.00 | 1.25 | 0.00 | 0.69 | 26.28 | 298.49 | 18.39 | 319.65 | 0.4387 | -894.0 | -663.0 | |
| 0.36 | 2.06 | 0.20 | 1.14 | 26.61 | 298.47 | 18.37 | 320.20 | 0.4421 | -933.8 | -803.8 | |
| 1.16 | 7.97 | 0.63 | 4.33 | 24.83 | 297.91 | 17.81 | 318.04 | 0.4169 | 807.3 | 638.8 | |
| 4.03 | -19.00 | 2.19 | -19.00 | 24.61 | 297.84 | 17.74 | 317.75 | 0.4138 | 914.6 | 999999 | |
| 1.25 | 3.22 | 0.68 | 1.75 | 24.97 | 297.65 | 17.55 | 318.67 | 0.4156 | 816.3 | 770.3 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 24.83 | 297.17 | 17.08 | 319.15 | 0.4091 | 781.0 | 653.1 | |
| 17.01 | 34.46 | 9.31 | 18.88 | 26.73 | 296.86 | 16.76 | 322.80 | 0.4277 | 1002.5 | 375.3 | |
| 2.60 | 17.72 | 1.41 | 9.68 | 26.60 | 295.99 | 15.89 | 323.97 | 0.4180 | 976.8 | 467.5 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 26.67 | 295.79 | 15.69 | 324.41 | 0.4170 | 469.0 | 386.4 | |
| 17.81 | 98.38 | 9.63 | 53.14 | 25.62 | 295.57 | 15.48 | 323.08 | 0.4023 | 1270.7 | 629.4 | |
| 0.00 | 1.79 | 0.00 | 0.97 | 26.52 | 295.31 | 15.21 | 324.98 | 0.4109 | 659.0 | 504.1 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 26.30 | 295.18 | 15.08 | 324.86 | 0.4069 | 624.0 | 499.9 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 25.62 | 294.43 | 14.33 | 325.09 | 0.3916 | 986.0 | 794.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
