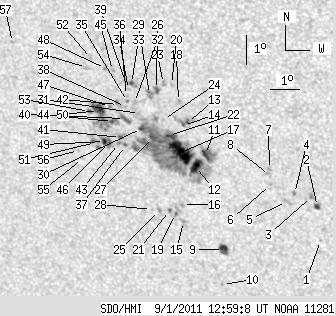

SDO HMI 2011-09-01 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.19 | 404.13 | 51.12 | 242.38 | -19.91 | 258.42 | -21.13 | 142.87 | 0.5640 | 68.2 | -12.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-01 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.54 | -22.91 | 263.29 | -16.26 | 152.56 | 0.5619 | 686.0 | 562.3 | |
| 2.86 | 3.76 | 1.69 | 2.22 | -21.73 | 263.33 | -16.22 | 151.54 | 0.5467 | 713.1 | 253.4 | |
| 0.00 | 2.68 | 0.00 | 1.58 | -21.39 | 263.16 | -16.39 | 150.98 | 0.5436 | 1002.0 | 787.3 | |
| 0.00 | 1.70 | 0.00 | 1.00 | -21.31 | 262.59 | -16.95 | 150.07 | 0.5466 | 832.0 | 656.9 | |
| 0.00 | 3.76 | 0.00 | 2.23 | -21.59 | 262.29 | -17.26 | 149.91 | 0.5524 | 635.0 | 470.1 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -21.03 | 261.81 | -17.74 | 148.67 | 0.5490 | 818.0 | 599.0 | |
| 0.00 | 1.79 | 0.00 | 1.05 | -20.51 | 261.84 | -17.71 | 148.19 | 0.5425 | 928.0 | 730.3 | |
| 0.00 | 2.15 | 0.00 | 1.27 | -20.72 | 261.82 | -17.73 | 148.37 | 0.5452 | 706.0 | 567.7 | |
| 7.07 | 8.05 | 4.34 | 4.94 | -23.37 | 259.86 | -19.68 | 148.35 | 0.5914 | -785.2 | -556.8 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -24.61 | 259.63 | -19.92 | 149.22 | 0.6076 | 705.0 | 596.9 | |
| 4.39 | 16.02 | 2.61 | 9.52 | -20.10 | 259.71 | -19.84 | 144.77 | 0.5546 | 1071.5 | 745.9 | |
| 9.22 | 220.35 | 5.51 | 132.02 | -20.52 | 259.31 | -20.24 | 144.71 | 0.5629 | 890.3 | 108.8 | |
| 1.52 | 9.84 | 0.90 | 5.82 | -19.04 | 259.23 | -20.31 | 142.93 | 0.5466 | 913.8 | 615.6 | |
| 1.25 | -13.00 | 0.74 | -13.00 | -19.14 | 259.08 | -20.46 | 142.85 | 0.5491 | 705.4 | 999999 | |
| 0.00 | 3.22 | 0.00 | 1.97 | -22.45 | 258.61 | -20.94 | 145.84 | 0.5905 | 726.0 | 507.5 | |
| 0.00 | 2.42 | 0.00 | 1.47 | -21.86 | 258.66 | -20.88 | 145.30 | 0.5834 | 663.0 | 537.1 | |
| 25.87 | -12.00 | 15.46 | -12.00 | -20.07 | 258.86 | -20.69 | 143.61 | 0.5615 | 970.0 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.89 | -18.34 | 259.01 | -20.53 | 141.82 | 0.5407 | 534.0 | 443.7 | |
| 0.36 | 5.46 | 0.22 | 3.34 | -22.18 | 258.37 | -21.18 | 145.27 | 0.5894 | 803.5 | 665.8 | |
| 0.00 | 1.52 | 0.00 | 0.89 | -17.78 | 258.85 | -20.70 | 140.91 | 0.5359 | -759.0 | -663.1 | |
| 1.52 | 1.97 | 0.93 | 1.21 | -22.09 | 258.17 | -21.38 | 144.92 | 0.5899 | 703.1 | 614.2 | |
| 1.34 | -12.00 | 0.80 | -12.00 | -19.51 | 258.52 | -21.03 | 142.53 | 0.5582 | 718.4 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.31 | -17.76 | 258.58 | -20.97 | 140.52 | 0.5382 | -737.0 | -638.4 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -18.97 | 258.42 | -21.13 | 141.78 | 0.5531 | 470.0 | 400.8 | |
| 0.00 | 3.13 | 0.00 | 1.92 | -22.11 | 257.82 | -21.73 | 144.50 | 0.5930 | 734.0 | 488.3 | |
| 2.24 | 3.76 | 1.32 | 2.21 | -17.97 | 258.31 | -21.24 | 140.43 | 0.5430 | -850.8 | -736.7 | |
| 3.04 | -12.00 | 1.82 | -12.00 | -19.60 | 257.99 | -21.56 | 141.96 | 0.5639 | -452.5 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -22.09 | 257.54 | -22.01 | 144.14 | 0.5950 | 448.0 | 342.2 | |
| 0.00 | 5.01 | 0.00 | 2.96 | -18.15 | 258.05 | -21.50 | 140.31 | 0.5474 | -295.0 | -227.3 | |
| 2.51 | -12.00 | 1.50 | -12.00 | -19.32 | 257.61 | -21.93 | 141.15 | 0.5641 | -566.1 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -18.81 | 257.62 | -21.93 | 140.55 | 0.5586 | -236.0 | -251.2 | |
| 0.00 | 2.51 | 0.00 | 1.49 | -18.45 | 257.49 | -22.05 | 139.96 | 0.5558 | -370.0 | -380.9 | |
| 1.07 | 4.30 | 0.64 | 2.54 | -17.81 | 257.48 | -22.07 | 139.16 | 0.5492 | -905.0 | -761.2 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -18.02 | 257.34 | -22.20 | 139.25 | 0.5526 | -696.0 | -523.8 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -18.43 | 257.26 | -22.29 | 139.63 | 0.5578 | -770.0 | -695.1 | |
| 0.00 | 1.43 | 0.00 | 0.85 | -18.23 | 257.25 | -22.30 | 139.38 | 0.5557 | -527.0 | -511.0 | |
| 1.07 | 1.88 | 0.65 | 1.14 | -19.92 | 256.97 | -22.58 | 141.05 | 0.5764 | -635.4 | -604.3 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -18.60 | 257.16 | -22.39 | 139.72 | 0.5605 | -697.0 | -552.7 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -17.76 | 257.28 | -22.27 | 138.83 | 0.5504 | -827.0 | -678.9 | |
| 0.00 | 6.09 | 0.00 | 3.65 | -19.01 | 257.07 | -22.48 | 140.10 | 0.5657 | -962.0 | -754.3 | |
| 1.61 | 3.49 | 0.97 | 2.11 | -19.66 | 256.83 | -22.71 | 140.58 | 0.5748 | -878.2 | -760.8 | |
| 0.00 | 3.49 | 0.00 | 2.09 | -18.54 | 256.93 | -22.62 | 139.37 | 0.5621 | -700.0 | -735.4 | |
| 0.00 | 1.61 | 0.00 | 0.98 | -19.87 | 256.73 | -22.81 | 140.70 | 0.5779 | -743.0 | -660.2 | |
| 1.25 | 40.81 | 0.75 | 24.64 | -19.13 | 256.64 | -22.91 | 139.71 | 0.5710 | -906.4 | -710.0 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -17.41 | 256.88 | -22.67 | 137.89 | 0.5507 | -829.0 | -724.9 | |
| 1.07 | 10.02 | 0.65 | 6.09 | -19.85 | 256.42 | -23.13 | 140.30 | 0.5806 | -889.8 | -691.4 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -18.63 | 256.60 | -22.94 | 139.07 | 0.5660 | -829.0 | -726.5 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -17.36 | 256.64 | -22.91 | 137.53 | 0.5524 | -821.0 | -701.9 | |
| 2.51 | -46.00 | 1.52 | -46.00 | -19.83 | 256.25 | -23.30 | 140.07 | 0.5819 | -835.9 | 999999 | |
| 11.99 | -44.00 | 7.23 | -44.00 | -18.78 | 256.20 | -23.35 | 138.77 | 0.5714 | -883.8 | 999999 | |
| 0.00 | 6.98 | 0.00 | 4.26 | -19.88 | 255.93 | -23.62 | 139.74 | 0.5853 | -462.0 | -522.0 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -17.05 | 256.20 | -23.35 | 136.60 | 0.5535 | -422.0 | -473.7 | |
| 1.43 | -44.00 | 0.87 | -44.00 | -18.83 | 255.88 | -23.67 | 138.44 | 0.5750 | -614.4 | 999999 | |
| 0.00 | 3.49 | 0.00 | 2.08 | -17.36 | 255.98 | -23.56 | 136.74 | 0.5588 | -559.0 | -420.3 | |
| 0.00 | 1.52 | 0.00 | 0.94 | -20.45 | 255.37 | -24.17 | 139.77 | 0.5963 | -302.0 | -284.1 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -20.18 | 255.28 | -24.27 | 139.35 | 0.5944 | -651.0 | -510.8 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -16.67 | 253.50 | -26.05 | 133.00 | 0.5773 | -638.0 | -576.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
