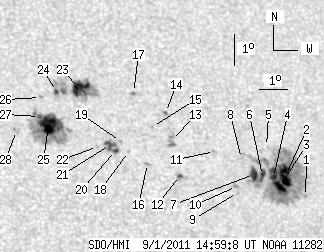

SDO HMI 2011-09-01 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.34 | 398.31 | 47.96 | 222.16 | 24.66 | 299.96 | 21.52 | 313.19 | 0.4585 | 21.8 | -57.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-01 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.81 | 22.99 | 304.14 | 25.69 | 305.42 | 0.4917 | -640.0 | -398.9 | |
| 14.05 | 204.80 | 7.97 | 116.04 | 23.69 | 303.55 | 25.11 | 307.20 | 0.4898 | -1095.8 | -406.1 | |
| 6.17 | -2.00 | 3.49 | -2.00 | 23.35 | 303.27 | 24.82 | 306.88 | 0.4837 | -1363.4 | 999999 | |
| 2.68 | -2.00 | 1.52 | -2.00 | 23.65 | 303.11 | 24.66 | 307.55 | 0.4841 | -1213.7 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 24.64 | 303.05 | 24.61 | 309.34 | 0.4914 | -298.0 | -365.1 | |
| 5.37 | -2.00 | 3.03 | -2.00 | 23.73 | 302.72 | 24.28 | 308.08 | 0.4801 | -1019.7 | 999999 | |
| 7.69 | -2.00 | 4.33 | -2.00 | 23.78 | 302.41 | 23.96 | 308.48 | 0.4767 | -1093.9 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 24.30 | 302.07 | 23.63 | 309.76 | 0.4771 | -754.0 | -520.0 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 23.24 | 301.73 | 23.28 | 308.21 | 0.4641 | -862.0 | -763.1 | |
| 0.00 | 2.06 | 0.00 | 1.15 | 23.43 | 301.73 | 23.28 | 308.56 | 0.4657 | -957.0 | -749.1 | |
| 0.00 | 1.34 | 0.00 | 0.75 | 24.57 | 301.15 | 22.71 | 311.22 | 0.4687 | -792.0 | -622.7 | |
| 1.61 | 3.31 | 0.89 | 1.83 | 23.87 | 299.77 | 21.32 | 311.57 | 0.4463 | 733.6 | 589.3 | |
| 0.00 | 8.86 | 0.00 | 4.92 | 24.98 | 299.68 | 21.24 | 313.66 | 0.4558 | -926.0 | -738.8 | |
| 0.98 | 1.97 | 0.55 | 1.10 | 25.88 | 299.63 | 21.19 | 315.26 | 0.4639 | -675.0 | -677.3 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 25.45 | 299.09 | 20.64 | 315.22 | 0.4538 | -766.0 | -580.6 | |
| 0.00 | 2.15 | 0.00 | 1.18 | 24.29 | 298.71 | 20.26 | 313.66 | 0.4381 | 691.0 | 570.8 | |
| 0.00 | 1.34 | 0.00 | 0.75 | 26.57 | 298.61 | 20.16 | 317.69 | 0.4599 | -828.0 | -720.4 | |
| 0.00 | 1.25 | 0.00 | 0.69 | 24.70 | 298.10 | 19.66 | 315.18 | 0.4354 | 391.0 | 332.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 25.02 | 297.87 | 19.43 | 316.07 | 0.4362 | 472.0 | 356.7 | |
| 2.06 | 12.08 | 1.13 | 6.62 | 24.75 | 297.65 | 19.21 | 315.88 | 0.4309 | 789.6 | 663.3 | |
| 5.46 | -20.00 | 2.99 | -20.00 | 24.94 | 297.51 | 19.06 | 316.43 | 0.4314 | 901.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.64 | 24.90 | 297.04 | 18.60 | 317.00 | 0.4259 | 787.0 | 655.8 | |
| 17.09 | 36.77 | 9.43 | 20.31 | 26.77 | 296.70 | 18.26 | 320.62 | 0.4428 | 956.6 | 382.9 | |
| 1.97 | 18.61 | 1.08 | 10.24 | 26.70 | 295.87 | 17.43 | 321.73 | 0.4339 | 877.3 | 409.4 | |
| 19.42 | 92.24 | 10.57 | 50.20 | 25.63 | 295.43 | 16.98 | 320.66 | 0.4172 | 1241.4 | 598.0 | |
| 0.00 | 1.52 | 0.00 | 0.83 | 26.53 | 295.28 | 16.84 | 322.36 | 0.4262 | 487.0 | 502.1 | |
| 1.79 | -25.00 | 0.98 | -25.00 | 25.92 | 295.16 | 16.71 | 321.58 | 0.4179 | 898.5 | 999999 | |
| 0.00 | 2.68 | 0.00 | 1.45 | 25.50 | 294.29 | 15.85 | 322.28 | 0.4045 | 691.0 | 721.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
