SDO HMI 2011-09-01 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.76 | 189.46 | 16.28 | 97.12 | 13.59 | 291.64 | 13.75 | 296.54 | 0.2596 | -760.3 | -482.5 | |
|
previous
or next observation for the same group /

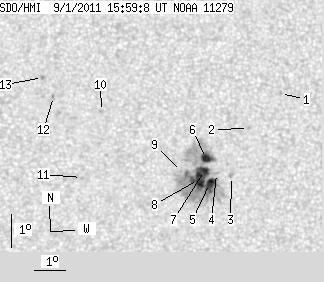

back to the solar disc SDO HMI 2011-09-01 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.51 | 15.90 | 294.40 | 16.51 | 299.79 | 0.3164 | -716.0 | -586.1 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 14.87 | 293.28 | 15.39 | 298.28 | 0.2925 | -794.0 | -635.0 | |
| 0.00 | 2.06 | 0.00 | 1.06 | 13.42 | 292.63 | 14.74 | 294.47 | 0.2731 | -741.0 | -460.2 | |
| 0.00 | 2.15 | 0.00 | 1.10 | 13.53 | 292.16 | 14.26 | 295.49 | 0.2666 | -76.0 | -108.5 | |
| 6.89 | 176.32 | 3.53 | 90.38 | 13.23 | 291.91 | 14.02 | 294.79 | 0.2610 | -1120.7 | -529.5 | |
| 6.53 | -5.00 | 3.35 | -5.00 | 13.99 | 291.86 | 13.97 | 297.54 | 0.2654 | -1119.9 | 999999 | |
| 5.10 | -5.00 | 2.62 | -5.00 | 13.63 | 291.78 | 13.89 | 296.41 | 0.2616 | -1042.1 | 999999 | |
| 13.24 | -5.00 | 6.78 | -5.00 | 13.36 | 291.57 | 13.68 | 295.77 | 0.2566 | -1332.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 13.62 | 291.04 | 13.15 | 297.54 | 0.2505 | -837.0 | -676.9 | |
| 0.00 | 1.88 | 0.00 | 0.96 | 15.51 | 288.59 | 10.70 | 309.41 | 0.2325 | 772.0 | 532.3 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 13.52 | 287.86 | 9.97 | 303.67 | 0.2031 | 735.0 | 589.1 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 16.00 | 287.08 | 9.19 | 315.25 | 0.2190 | 965.0 | 711.1 | |
| 0.00 | 1.61 | 0.00 | 0.82 | 16.59 | 286.76 | 8.87 | 318.14 | 0.2224 | 941.0 | 702.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
