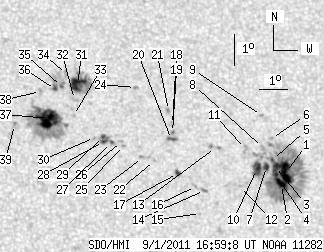

SDO HMI 2011-09-01 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.14 | 405.01 | 54.39 | 227.55 | 24.65 | 300.00 | 22.66 | 311.82 | 0.4713 | 12.2 | -17.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-01 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.47 | 200.36 | 8.86 | 114.53 | 23.60 | 303.56 | 26.22 | 306.01 | 0.5026 | -1135.6 | -361.0 | |
| 8.77 | -1.00 | 5.00 | -1.00 | 23.23 | 303.34 | 26.00 | 305.56 | 0.4972 | -1301.5 | 999999 | |
| 2.95 | -1.00 | 1.69 | -1.00 | 23.81 | 303.24 | 25.90 | 306.66 | 0.5002 | -968.3 | 999999 | |
| 3.85 | -1.00 | 2.19 | -1.00 | 23.55 | 303.18 | 25.85 | 306.27 | 0.4977 | -1235.2 | 999999 | |
| 1.34 | -1.00 | 0.77 | -1.00 | 24.03 | 303.18 | 25.84 | 307.11 | 0.5012 | -716.9 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.92 | 24.69 | 303.29 | 25.95 | 308.15 | 0.5075 | -678.0 | -530.4 | |
| 3.67 | -1.00 | 2.09 | -1.00 | 23.82 | 302.91 | 25.57 | 306.99 | 0.4964 | -1036.9 | 999999 | |
| 0.00 | 2.77 | 0.00 | 1.58 | 24.43 | 302.89 | 25.56 | 308.06 | 0.5008 | -252.0 | -296.2 | |
| 0.00 | 1.43 | 0.00 | 0.82 | 25.44 | 303.08 | 25.75 | 309.59 | 0.5111 | 817.0 | 665.1 | |
| 8.94 | -1.00 | 5.08 | -1.00 | 23.75 | 302.53 | 25.19 | 307.22 | 0.4912 | -1111.0 | 999999 | |
| 0.00 | 3.04 | 0.00 | 1.73 | 24.43 | 302.27 | 24.93 | 308.66 | 0.4934 | -626.0 | -641.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 23.24 | 301.85 | 24.51 | 306.97 | 0.4790 | -684.0 | -597.8 | |
| 0.00 | 3.67 | 0.00 | 2.07 | 24.51 | 301.19 | 23.85 | 309.89 | 0.4815 | -580.0 | -689.8 | |
| 0.00 | 2.86 | 0.00 | 1.60 | 23.18 | 300.54 | 23.20 | 308.18 | 0.4626 | 613.0 | 416.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 22.47 | 300.27 | 22.93 | 307.14 | 0.4535 | -808.0 | -605.9 | |
| 0.00 | 2.24 | 0.00 | 1.25 | 23.32 | 300.24 | 22.90 | 308.76 | 0.4602 | 453.0 | 412.2 | |
| 2.33 | 3.40 | 1.29 | 1.89 | 23.76 | 299.68 | 22.34 | 310.18 | 0.4572 | 836.7 | 635.5 | |
| 0.00 | 2.24 | 0.00 | 1.26 | 25.31 | 299.79 | 22.45 | 312.80 | 0.4724 | -854.0 | -631.7 | |
| 0.00 | 1.61 | 0.00 | 0.90 | 25.06 | 299.74 | 22.40 | 312.42 | 0.4695 | -917.0 | -821.4 | |
| 2.24 | 3.58 | 1.25 | 2.00 | 24.84 | 299.66 | 22.32 | 312.12 | 0.4666 | -901.3 | -883.7 | |
| 0.00 | 1.43 | 0.00 | 0.81 | 25.76 | 299.73 | 22.39 | 313.62 | 0.4759 | -846.0 | -685.9 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 24.20 | 298.93 | 21.60 | 311.84 | 0.4525 | 546.0 | 476.8 | |
| 0.00 | 2.15 | 0.00 | 1.19 | 24.31 | 298.53 | 21.19 | 312.54 | 0.4489 | 808.0 | 608.4 | |
| 0.00 | 1.79 | 0.00 | 1.00 | 26.55 | 298.69 | 21.35 | 316.16 | 0.4722 | -953.0 | -703.8 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 24.72 | 297.92 | 20.58 | 314.01 | 0.4459 | 708.0 | 517.2 | |
| 0.00 | 1.25 | 0.00 | 0.69 | 24.85 | 297.87 | 20.53 | 314.30 | 0.4466 | 708.0 | 610.6 | |
| 1.07 | 10.11 | 0.59 | 5.57 | 24.83 | 297.51 | 20.18 | 314.73 | 0.4424 | 773.4 | 818.6 | |
| 0.72 | -27.00 | 0.39 | -27.00 | 24.88 | 297.24 | 19.90 | 315.17 | 0.4398 | 1042.2 | 999999 | |
| 2.06 | -27.00 | 1.13 | -27.00 | 25.04 | 297.26 | 19.93 | 315.41 | 0.4417 | 808.1 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 25.02 | 296.94 | 19.60 | 315.81 | 0.4380 | 799.0 | 612.4 | |
| 14.22 | 35.15 | 7.89 | 19.53 | 26.73 | 296.63 | 19.29 | 319.11 | 0.4526 | 983.5 | 379.7 | |
| 0.00 | 2.86 | 0.00 | 1.58 | 26.25 | 296.44 | 19.10 | 318.59 | 0.4456 | 701.0 | 369.2 | |
| 0.00 | 1.43 | 0.00 | 0.79 | 25.74 | 296.32 | 18.98 | 317.91 | 0.4389 | 639.0 | 544.0 | |
| 0.00 | 2.59 | 0.00 | 1.44 | 27.06 | 296.29 | 18.95 | 320.11 | 0.4529 | 13.0 | 15.8 | |
| 1.07 | 18.43 | 0.59 | 10.19 | 26.69 | 296.05 | 18.71 | 319.84 | 0.4463 | 834.3 | 405.7 | |
| 0.98 | -35.00 | 0.54 | -35.00 | 26.60 | 295.82 | 18.48 | 320.03 | 0.4430 | 980.5 | 999999 | |
| 27.46 | 88.91 | 15.04 | 48.64 | 25.68 | 295.42 | 18.08 | 319.09 | 0.4289 | 1149.2 | 552.3 | |
| 0.00 | 2.77 | 0.00 | 1.53 | 26.55 | 295.28 | 17.94 | 320.73 | 0.4371 | 806.0 | 589.1 | |
| 0.00 | 2.68 | 0.00 | 1.46 | 25.53 | 294.20 | 16.86 | 320.68 | 0.4149 | 981.0 | 772.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
