SDO HMI 2011-09-01 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.33 | 397.88 | 56.44 | 230.41 | -19.95 | 257.97 | -15.50 | 150.94 | 0.5200 | 137.1 | 25.7 | |
|
previous
or next observation for the same group /

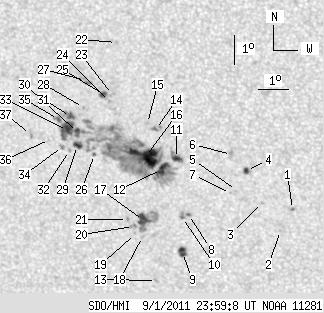

back to the solar disc SDO HMI 2011-09-01 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.72 | -21.64 | 263.46 | -10.01 | 161.42 | 0.5092 | 760.0 | 620.0 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -22.38 | 263.01 | -10.47 | 161.14 | 0.5218 | 470.0 | 410.6 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -21.42 | 262.48 | -10.99 | 159.59 | 0.5110 | 587.0 | 517.1 | |
| 2.50 | 3.94 | 1.43 | 2.25 | -20.34 | 262.04 | -11.44 | 158.00 | 0.4983 | 845.2 | 742.3 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -21.03 | 261.65 | -11.82 | 157.89 | 0.5101 | 532.0 | 482.4 | |
| 0.00 | 2.42 | 0.00 | 1.37 | -19.80 | 261.58 | -11.89 | 156.77 | 0.4935 | 731.0 | 710.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -21.14 | 261.44 | -12.03 | 157.63 | 0.5128 | 673.0 | 513.0 | |
| 0.81 | 1.70 | 0.47 | 0.99 | -21.91 | 259.97 | -13.50 | 155.87 | 0.5318 | -587.6 | -566.9 | |
| 6.17 | 7.60 | 3.66 | 4.51 | -23.24 | 259.64 | -13.84 | 156.42 | 0.5515 | -833.9 | -605.1 | |
| 1.25 | 3.04 | 0.73 | 1.78 | -22.02 | 259.76 | -13.71 | 155.63 | 0.5345 | -439.8 | 228.9 | |
| 3.13 | 8.50 | 1.80 | 4.88 | -19.99 | 259.75 | -13.72 | 153.84 | 0.5076 | 1096.7 | 769.5 | |
| 8.86 | 301.65 | 5.12 | 174.41 | -20.39 | 259.22 | -14.25 | 153.34 | 0.5164 | 954.4 | -27.9 | |
| 0.00 | 1.70 | 0.00 | 1.02 | -24.27 | 258.63 | -14.84 | 155.75 | 0.5706 | 712.0 | 620.9 | |
| 1.16 | 4.38 | 0.66 | 2.50 | -19.03 | 259.14 | -14.33 | 151.92 | 0.4990 | 863.0 | 750.1 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -18.84 | 258.90 | -14.58 | 151.31 | 0.4982 | 773.0 | 567.1 | |
| 29.34 | -12.00 | 16.92 | -12.00 | -19.96 | 258.73 | -14.75 | 152.15 | 0.5141 | 1050.9 | 999999 | |
| 9.66 | 26.39 | 5.70 | 15.55 | -22.17 | 258.43 | -15.04 | 153.72 | 0.5448 | 911.8 | 564.4 | |
| 0.00 | 1.52 | 0.00 | 0.90 | -22.73 | 258.33 | -15.14 | 154.06 | 0.5527 | 525.0 | 466.7 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -22.63 | 258.11 | -15.36 | 153.64 | 0.5529 | 462.0 | 373.4 | |
| 0.00 | 2.68 | 0.00 | 1.59 | -22.39 | 258.07 | -15.40 | 153.37 | 0.5500 | 789.0 | 662.2 | |
| 0.00 | 1.43 | 0.00 | 0.85 | -22.15 | 257.89 | -15.58 | 152.90 | 0.5482 | 773.0 | 633.6 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -16.17 | 258.10 | -15.37 | 147.04 | 0.4697 | -769.0 | -556.0 | |
| 0.00 | 1.70 | 0.00 | 0.97 | -17.90 | 257.82 | -15.65 | 148.57 | 0.4942 | -938.0 | -677.3 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -18.14 | 257.70 | -15.77 | 148.64 | 0.4982 | -465.0 | -383.8 | |
| 3.58 | 4.47 | 2.04 | 2.55 | -17.91 | 257.53 | -15.95 | 148.10 | 0.4967 | -925.9 | -791.5 | |
| 1.16 | 1.43 | 0.68 | 0.83 | -19.95 | 257.02 | -16.45 | 149.49 | 0.5264 | -599.4 | -461.7 | |
| 0.00 | 5.28 | 0.00 | 3.01 | -17.47 | 256.97 | -16.50 | 146.71 | 0.4956 | -747.0 | -744.7 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -18.38 | 256.82 | -16.65 | 147.50 | 0.5082 | -838.0 | -702.5 | |
| 3.76 | -12.00 | 2.19 | -12.00 | -19.67 | 256.48 | -16.99 | 148.38 | 0.5269 | -953.4 | 999999 | |
| 3.49 | -12.00 | 2.02 | -12.00 | -19.23 | 256.53 | -16.94 | 147.99 | 0.5211 | -1005.5 | 999999 | |
| 3.58 | -12.00 | 2.07 | -12.00 | -18.70 | 256.35 | -17.12 | 147.14 | 0.5159 | -1081.4 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.04 | -19.85 | 256.19 | -17.28 | 148.14 | 0.5314 | -661.0 | -532.8 | |
| 16.91 | -12.00 | 9.81 | -12.00 | -19.17 | 256.20 | -17.27 | 147.43 | 0.5230 | -889.0 | 999999 | |
| 0.00 | 2.77 | 0.00 | 1.62 | -19.72 | 255.97 | -17.50 | 147.68 | 0.5316 | -736.0 | -502.5 | |
| 1.97 | -12.00 | 1.14 | -12.00 | -18.81 | 255.94 | -17.54 | 146.64 | 0.5207 | -682.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -19.50 | 255.56 | -17.91 | 146.84 | 0.5322 | -395.0 | -311.7 | |
| 0.00 | 2.59 | 0.00 | 1.52 | -19.36 | 254.93 | -18.54 | 145.78 | 0.5356 | -710.0 | -604.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
