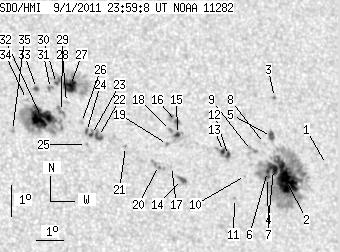

SDO HMI 2011-09-01 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.83 | 415.41 | 67.28 | 240.33 | 24.54 | 300.14 | 26.67 | 307.61 | 0.5167 | 65.6 | -71.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-01 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.54 | 23.68 | 305.28 | 31.80 | 301.93 | 0.5709 | 718.0 | 527.2 | |
| 33.81 | 191.97 | 20.00 | 113.52 | 23.27 | 303.63 | 30.16 | 302.35 | 0.5484 | -1068.5 | -376.5 | |
| 0.00 | 1.25 | 0.00 | 0.75 | 25.91 | 303.87 | 30.40 | 306.45 | 0.5680 | 636.0 | 554.9 | |
| 5.99 | -2.00 | 3.54 | -2.00 | 23.65 | 303.23 | 29.76 | 303.26 | 0.5458 | -1089.7 | 999999 | |
| 4.56 | 5.73 | 2.71 | 3.40 | 24.69 | 303.42 | 29.95 | 304.83 | 0.5547 | -670.2 | -573.1 | |
| 1.25 | -2.00 | 0.74 | -2.00 | 23.60 | 302.99 | 29.51 | 303.35 | 0.5425 | -1230.0 | 999999 | |
| 1.88 | -2.00 | 1.10 | -2.00 | 23.41 | 302.94 | 29.47 | 303.06 | 0.5408 | -949.9 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.74 | 24.48 | 303.10 | 29.63 | 304.73 | 0.5495 | -633.0 | -496.1 | |
| 0.00 | 5.73 | 0.00 | 3.37 | 24.29 | 302.55 | 29.08 | 304.82 | 0.5417 | -582.0 | -670.4 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 23.52 | 302.14 | 28.66 | 303.85 | 0.5316 | -723.0 | -675.0 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 22.83 | 301.56 | 28.09 | 303.09 | 0.5200 | -592.0 | -500.7 | |
| 2.42 | 10.91 | 1.41 | 6.36 | 24.18 | 301.65 | 28.18 | 305.34 | 0.5302 | -802.6 | -575.0 | |
| 1.97 | -12.00 | 1.15 | -12.00 | 24.32 | 301.50 | 28.03 | 305.69 | 0.5293 | -769.6 | 999999 | |
| 3.40 | 4.29 | 1.95 | 2.46 | 23.52 | 299.79 | 26.32 | 305.76 | 0.5030 | 717.4 | 613.5 | |
| 2.06 | 8.50 | 1.19 | 4.90 | 24.95 | 299.92 | 26.45 | 308.09 | 0.5152 | -832.4 | -274.5 | |
| 2.15 | 8.14 | 1.24 | 4.71 | 25.36 | 299.98 | 26.51 | 308.72 | 0.5191 | -767.5 | -585.9 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 23.95 | 299.48 | 26.01 | 306.79 | 0.5024 | 497.0 | 376.4 | |
| 0.00 | 1.97 | 0.00 | 1.13 | 25.09 | 299.70 | 26.22 | 308.53 | 0.5136 | -823.0 | -715.6 | |
| 0.00 | 1.61 | 0.00 | 0.92 | 24.65 | 299.48 | 26.01 | 307.99 | 0.5078 | 620.0 | 408.3 | |
| 0.00 | 5.81 | 0.00 | 3.32 | 24.01 | 299.01 | 25.54 | 307.32 | 0.4972 | 730.0 | 723.8 | |
| 0.00 | 1.16 | 0.00 | 0.66 | 24.67 | 297.94 | 24.47 | 309.49 | 0.4897 | 703.0 | 549.7 | |
| 4.65 | 12.43 | 2.63 | 7.02 | 25.03 | 297.03 | 23.56 | 311.06 | 0.4822 | 759.9 | 642.2 | |
| 1.52 | -22.00 | 0.86 | -22.00 | 25.11 | 296.79 | 23.32 | 311.45 | 0.4802 | 947.2 | 999999 | |
| 1.61 | -22.00 | 0.91 | -22.00 | 25.21 | 296.63 | 23.16 | 311.80 | 0.4792 | 818.4 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 24.80 | 296.55 | 23.08 | 311.18 | 0.4747 | 766.0 | 657.6 | |
| 0.00 | 1.52 | 0.00 | 0.86 | 25.50 | 296.51 | 23.03 | 312.44 | 0.4805 | 805.0 | 643.2 | |
| 12.79 | 52.15 | 7.26 | 29.63 | 26.70 | 296.35 | 22.88 | 314.59 | 0.4897 | 936.8 | 215.4 | |
| 0.00 | 1.61 | 0.00 | 0.91 | 26.16 | 296.09 | 22.62 | 314.00 | 0.4819 | 693.0 | 526.1 | |
| 0.00 | 5.55 | 0.00 | 3.12 | 25.88 | 295.86 | 22.38 | 313.81 | 0.4767 | 740.0 | 659.7 | |
| 1.43 | -27.00 | 0.81 | -27.00 | 26.79 | 295.86 | 22.39 | 315.29 | 0.4852 | 790.6 | 999999 | |
| 0.00 | 2.86 | 0.00 | 1.62 | 26.64 | 295.61 | 22.13 | 315.34 | 0.4811 | 853.0 | 725.1 | |
| 33.01 | 80.69 | 18.47 | 45.10 | 25.73 | 295.10 | 21.63 | 314.43 | 0.4669 | 1041.5 | 508.4 | |
| 2.33 | 2.33 | 1.31 | 1.31 | 26.66 | 295.10 | 21.63 | 315.98 | 0.4759 | 759.8 | 0.0 | |
| 0.00 | 1.43 | 0.00 | 0.80 | 26.32 | 294.67 | 21.20 | 315.95 | 0.4681 | 612.0 | 455.9 | |
| 0.00 | 2.24 | 0.00 | 1.24 | 25.36 | 293.99 | 20.52 | 315.17 | 0.4511 | 903.0 | 754.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
