SDO HMI 2011-09-02 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.21 | 396.51 | 58.47 | 229.00 | -19.97 | 258.12 | -14.80 | 152.07 | 0.5152 | 189.6 | -0.1 | |
|
previous
or next observation for the same group /

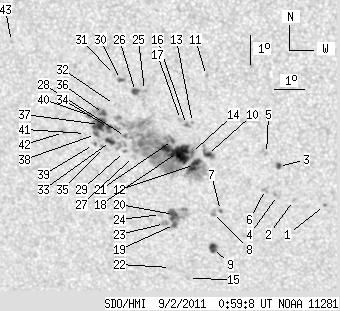

back to the solar disc SDO HMI 2011-09-02 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.67 | -21.63 | 263.47 | -9.46 | 162.38 | 0.5064 | 756.0 | 580.9 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -21.48 | 262.45 | -10.47 | 160.52 | 0.5092 | 748.0 | 568.9 | |
| 2.24 | 3.22 | 1.27 | 1.83 | -20.32 | 262.04 | -10.88 | 158.96 | 0.4950 | 931.0 | 763.6 | |
| 0.00 | 3.94 | 0.00 | 2.26 | -21.32 | 261.94 | -10.99 | 159.53 | 0.5096 | 788.0 | 644.5 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -19.89 | 261.68 | -11.24 | 157.98 | 0.4909 | 767.0 | 646.7 | |
| 0.00 | 3.49 | 0.00 | 2.01 | -21.12 | 261.55 | -11.37 | 158.73 | 0.5089 | 789.0 | 641.4 | |
| 1.07 | 1.43 | 0.63 | 0.83 | -21.89 | 259.99 | -12.93 | 156.75 | 0.5282 | -585.4 | -484.0 | |
| 0.00 | 3.49 | 0.00 | 2.04 | -21.97 | 259.75 | -13.17 | 156.43 | 0.5307 | 127.0 | -142.7 | |
| 5.46 | 5.99 | 3.23 | 3.54 | -23.23 | 259.59 | -13.33 | 157.18 | 0.5484 | -837.3 | -878.7 | |
| 3.13 | 7.87 | 1.79 | 4.51 | -19.98 | 259.73 | -13.19 | 154.70 | 0.5040 | 1044.5 | 829.1 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -17.32 | 259.91 | -13.02 | 152.45 | 0.4667 | -812.0 | -634.2 | |
| 8.77 | 299.00 | 5.05 | 172.41 | -20.33 | 259.27 | -13.65 | 154.26 | 0.5117 | 988.8 | -70.2 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -18.91 | 259.32 | -13.60 | 153.02 | 0.4922 | 819.0 | 678.2 | |
| 2.24 | -12.00 | 1.28 | -12.00 | -19.93 | 259.20 | -13.72 | 153.78 | 0.5067 | 878.4 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.86 | -24.32 | 258.66 | -14.27 | 156.62 | 0.5680 | 712.0 | 646.6 | |
| 1.34 | 2.86 | 0.76 | 1.63 | -18.98 | 259.12 | -13.80 | 152.75 | 0.4946 | 842.0 | 758.1 | |
| 0.00 | 2.42 | 0.00 | 1.37 | -18.82 | 258.94 | -13.98 | 152.28 | 0.4937 | 639.0 | 473.6 | |
| 30.42 | -12.00 | 17.50 | -12.00 | -19.94 | 258.74 | -14.18 | 153.04 | 0.5100 | 1055.2 | 999999 | |
| 3.31 | 24.16 | 1.95 | 14.20 | -22.43 | 258.39 | -14.53 | 154.71 | 0.5450 | 779.8 | 529.3 | |
| 8.23 | -19.00 | 4.84 | -19.00 | -22.08 | 258.39 | -14.53 | 154.42 | 0.5404 | 944.9 | 999999 | |
| 1.88 | -12.00 | 1.08 | -12.00 | -19.54 | 258.61 | -14.31 | 152.44 | 0.5056 | 932.9 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.97 | -23.95 | 258.08 | -14.84 | 155.50 | 0.5666 | 87.0 | 172.3 | |
| 0.00 | 3.49 | 0.00 | 2.06 | -22.40 | 258.05 | -14.87 | 154.18 | 0.5468 | 736.0 | 666.7 | |
| 0.00 | 2.95 | 0.00 | 1.74 | -22.10 | 257.95 | -14.97 | 153.76 | 0.5434 | 295.0 | 353.2 | |
| 0.00 | 1.79 | 0.00 | 1.02 | -17.88 | 257.83 | -15.09 | 149.46 | 0.4896 | -786.0 | -685.2 | |
| 4.03 | 4.65 | 2.29 | 2.64 | -17.93 | 257.53 | -15.39 | 149.02 | 0.4925 | -913.9 | -771.4 | |
| 0.00 | 3.04 | 0.00 | 1.77 | -20.13 | 257.25 | -15.67 | 150.86 | 0.5229 | -210.0 | -153.8 | |
| 1.07 | -12.00 | 0.62 | -12.00 | -19.46 | 257.05 | -15.87 | 149.88 | 0.5157 | -803.8 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.99 | -19.97 | 256.97 | -15.95 | 150.26 | 0.5229 | -649.0 | -517.7 | |
| 2.15 | 3.04 | 1.22 | 1.73 | -17.54 | 257.07 | -15.85 | 147.84 | 0.4912 | -826.6 | -753.8 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -17.38 | 256.89 | -16.03 | 147.36 | 0.4907 | -755.0 | -621.7 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -18.39 | 256.79 | -16.13 | 148.34 | 0.5042 | -748.0 | -583.8 | |
| 3.94 | -12.00 | 2.28 | -12.00 | -19.65 | 256.53 | -16.39 | 149.27 | 0.5221 | -941.4 | 999999 | |
| 2.15 | -12.00 | 1.24 | -12.00 | -19.17 | 256.52 | -16.41 | 148.75 | 0.5162 | -1038.3 | 999999 | |
| 0.00 | 3.58 | 0.00 | 2.08 | -19.86 | 256.31 | -16.61 | 149.15 | 0.5264 | -417.0 | -425.4 | |
| 2.86 | -12.00 | 1.65 | -12.00 | -18.71 | 256.40 | -16.53 | 148.06 | 0.5113 | -1111.7 | 999999 | |
| 12.26 | -12.00 | 7.09 | -12.00 | -19.08 | 256.22 | -16.70 | 148.20 | 0.5174 | -938.2 | 999999 | |
| 1.79 | -12.00 | 1.04 | -12.00 | -19.43 | 256.05 | -16.87 | 148.31 | 0.5230 | -633.2 | 999999 | |
| 0.36 | 1.43 | 0.21 | 0.83 | -19.77 | 255.95 | -16.97 | 148.52 | 0.5281 | -528.5 | -573.6 | |
| 2.51 | -12.00 | 1.45 | -12.00 | -18.79 | 255.92 | -17.00 | 147.42 | 0.5162 | -675.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -19.41 | 255.72 | -17.20 | 147.79 | 0.5254 | -415.0 | -427.6 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -19.40 | 254.98 | -17.94 | 146.69 | 0.5312 | -798.0 | -708.8 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -16.43 | 253.56 | -19.36 | 141.10 | 0.5085 | -730.0 | -602.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
