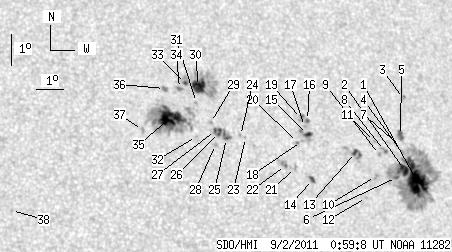

SDO HMI 2011-09-02 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.17 | 412.97 | 59.40 | 239.67 | 24.59 | 299.96 | 27.04 | 307.39 | 0.5214 | -60.4 | 1.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-02 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.17 | 181.35 | 23.90 | 107.80 | 23.31 | 303.66 | 30.74 | 302.01 | 0.5557 | -995.5 | -379.5 | |
| 6.08 | -1.00 | 3.61 | -1.00 | 23.65 | 303.29 | 30.36 | 302.82 | 0.5532 | -1060.5 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.35 | 25.88 | 303.86 | 30.94 | 306.01 | 0.5740 | 234.0 | 364.0 | |
| 0.00 | 1.61 | 0.00 | 0.96 | 24.18 | 303.35 | 30.43 | 303.66 | 0.5572 | -139.0 | -173.4 | |
| 4.65 | 5.46 | 2.78 | 3.26 | 24.72 | 303.42 | 30.50 | 304.49 | 0.5614 | -670.9 | -589.6 | |
| 1.52 | -1.00 | 0.90 | -1.00 | 23.41 | 302.92 | 30.00 | 302.69 | 0.5473 | -967.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.53 | 24.51 | 303.17 | 30.25 | 304.33 | 0.5571 | -547.0 | -454.7 | |
| 0.00 | 3.04 | 0.00 | 1.80 | 24.29 | 302.69 | 29.76 | 304.30 | 0.5499 | -733.0 | -669.9 | |
| 0.00 | 1.34 | 0.00 | 0.79 | 24.17 | 302.46 | 29.54 | 304.28 | 0.5465 | -859.0 | -652.9 | |
| 0.00 | 2.42 | 0.00 | 1.42 | 23.49 | 302.14 | 29.22 | 303.38 | 0.5383 | -602.0 | -647.3 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 24.59 | 302.38 | 29.46 | 305.03 | 0.5482 | -551.0 | -461.3 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 22.86 | 301.65 | 28.73 | 302.66 | 0.5282 | -650.0 | -464.8 | |
| 2.33 | 11.81 | 1.36 | 6.92 | 24.29 | 301.58 | 28.66 | 305.14 | 0.5366 | -754.0 | -502.8 | |
| 2.51 | 3.40 | 1.44 | 1.95 | 23.53 | 299.79 | 26.87 | 305.30 | 0.5098 | 704.1 | 564.5 | |
| 2.51 | 7.87 | 1.45 | 4.56 | 24.95 | 299.93 | 27.01 | 307.60 | 0.5218 | -779.4 | -543.5 | |
| 1.52 | 1.88 | 0.88 | 1.09 | 25.40 | 300.04 | 27.12 | 308.24 | 0.5264 | -781.6 | -514.2 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 25.21 | 299.88 | 26.96 | 308.08 | 0.5232 | -722.0 | -642.0 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 24.75 | 299.66 | 26.74 | 307.49 | 0.5170 | 160.0 | 100.7 | |
| 0.00 | 3.13 | 0.00 | 1.82 | 25.47 | 299.83 | 26.91 | 308.55 | 0.5245 | -778.0 | -636.0 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 24.72 | 299.51 | 26.58 | 307.59 | 0.5150 | 528.0 | 397.6 | |
| 0.00 | 2.33 | 0.00 | 1.33 | 23.94 | 299.25 | 26.33 | 306.47 | 0.5062 | 603.0 | 492.8 | |
| 0.36 | 5.37 | 0.20 | 3.07 | 24.02 | 298.90 | 25.98 | 306.93 | 0.5026 | 895.8 | 671.8 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 24.98 | 297.64 | 24.72 | 309.78 | 0.4952 | 614.0 | 491.5 | |
| 0.00 | 1.16 | 0.00 | 0.66 | 25.05 | 297.47 | 24.55 | 310.07 | 0.4938 | 667.0 | 442.8 | |
| 0.98 | 13.15 | 0.56 | 7.45 | 24.98 | 296.94 | 24.02 | 310.49 | 0.4871 | 828.5 | 701.6 | |
| 2.95 | -25.00 | 1.67 | -25.00 | 25.18 | 296.73 | 23.81 | 311.06 | 0.4864 | 758.0 | 999999 | |
| 1.70 | -25.00 | 0.96 | -25.00 | 25.25 | 296.60 | 23.67 | 311.32 | 0.4855 | 701.1 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.96 | 24.81 | 296.51 | 23.58 | 310.65 | 0.4806 | 787.0 | 674.1 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 25.51 | 296.47 | 23.55 | 311.90 | 0.4863 | 773.0 | 636.0 | |
| 12.70 | 48.40 | 7.23 | 27.61 | 26.68 | 296.28 | 23.35 | 314.03 | 0.4947 | 927.0 | 184.0 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 26.17 | 296.09 | 23.17 | 313.41 | 0.4880 | 591.0 | 496.8 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 25.09 | 295.87 | 22.95 | 311.83 | 0.4758 | 652.0 | 456.8 | |
| 1.52 | 5.01 | 0.86 | 2.85 | 26.80 | 295.82 | 22.90 | 314.73 | 0.4909 | 758.0 | 512.9 | |
| 0.00 | 2.59 | 0.00 | 1.47 | 26.65 | 295.57 | 22.65 | 314.77 | 0.4867 | 899.0 | 775.6 | |
| 20.67 | 90.81 | 11.60 | 50.94 | 25.74 | 295.06 | 22.13 | 313.85 | 0.4726 | 1135.2 | 584.9 | |
| 0.00 | 3.31 | 0.00 | 1.87 | 26.67 | 295.03 | 22.10 | 315.44 | 0.4811 | 814.0 | 724.5 | |
| 0.00 | 2.51 | 0.00 | 1.39 | 25.37 | 293.98 | 21.05 | 314.52 | 0.4571 | 828.0 | 725.8 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 23.02 | 289.03 | 16.11 | 317.32 | 0.3783 | 582.0 | 444.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
