SDO HMI 2011-09-02 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.21 | 416.30 | 56.19 | 244.33 | 24.53 | 300.12 | 28.30 | 306.24 | 0.5360 | 43.8 | -59.4 | |
|
previous
or next observation for the same group /

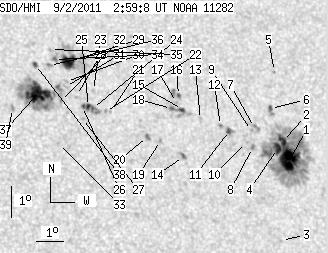

back to the solar disc SDO HMI 2011-09-02 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.92 | 197.77 | 16.79 | 118.98 | 23.18 | 303.72 | 31.90 | 301.05 | 0.5692 | -1116.5 | -353.5 | |
| 5.28 | -1.00 | 3.18 | -1.00 | 23.75 | 303.61 | 31.78 | 302.06 | 0.5710 | -787.0 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 20.68 | 302.80 | 30.98 | 297.40 | 0.5445 | -642.0 | -534.9 | |
| 5.28 | -1.00 | 3.17 | -1.00 | 23.55 | 303.36 | 31.53 | 301.88 | 0.5668 | -1049.3 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.55 | 25.98 | 303.94 | 32.11 | 305.34 | 0.5881 | 636.0 | 517.3 | |
| 2.24 | 4.65 | 1.35 | 2.81 | 24.82 | 303.44 | 31.61 | 303.87 | 0.5752 | -607.4 | -665.6 | |
| 0.00 | 6.09 | 0.00 | 3.64 | 24.26 | 302.66 | 30.83 | 303.50 | 0.5625 | -669.0 | -597.9 | |
| 0.00 | 1.79 | 0.00 | 1.07 | 23.64 | 302.42 | 30.59 | 302.65 | 0.5559 | -883.0 | -770.8 | |
| 0.00 | 1.43 | 0.00 | 0.86 | 24.17 | 302.52 | 30.69 | 303.46 | 0.5603 | -652.0 | -603.1 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 23.81 | 302.23 | 30.41 | 303.06 | 0.5546 | -520.0 | -505.6 | |
| 2.51 | 4.12 | 1.48 | 2.44 | 24.22 | 301.68 | 29.86 | 304.13 | 0.5506 | -836.6 | -746.5 | |
| 0.00 | 1.34 | 0.00 | 0.79 | 24.40 | 301.39 | 29.56 | 304.63 | 0.5482 | -714.0 | -597.3 | |
| 0.00 | 1.88 | 0.00 | 1.11 | 24.63 | 300.68 | 28.86 | 305.55 | 0.5413 | -294.0 | -384.9 | |
| 1.07 | 3.31 | 0.62 | 1.92 | 23.51 | 299.77 | 27.94 | 304.37 | 0.5227 | 686.2 | 566.1 | |
| 1.52 | 11.90 | 0.89 | 6.97 | 24.99 | 300.09 | 28.26 | 306.60 | 0.5368 | -786.9 | -507.1 | |
| 1.34 | 5.73 | 0.79 | 3.36 | 25.44 | 300.05 | 28.23 | 307.37 | 0.5395 | -703.2 | -623.7 | |
| 0.00 | 1.16 | 0.00 | 0.68 | 25.22 | 299.92 | 28.10 | 307.12 | 0.5364 | -817.0 | -636.8 | |
| 2.15 | -15.00 | 1.26 | -15.00 | 25.04 | 299.69 | 27.86 | 307.02 | 0.5324 | -794.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 24.06 | 299.04 | 27.21 | 305.91 | 0.5176 | 766.0 | 642.2 | |
| 0.45 | 2.60 | 0.26 | 1.50 | 24.21 | 298.59 | 26.76 | 306.55 | 0.5133 | 978.2 | 785.4 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 25.07 | 297.41 | 25.58 | 309.08 | 0.5059 | 606.0 | 492.2 | |
| 0.00 | 1.34 | 0.00 | 0.77 | 25.08 | 297.22 | 25.40 | 309.27 | 0.5039 | 670.0 | 560.7 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 25.76 | 296.93 | 25.11 | 310.71 | 0.5062 | 541.0 | 340.5 | |
| 0.36 | 10.83 | 0.20 | 6.18 | 25.19 | 296.77 | 24.95 | 309.92 | 0.4996 | 894.5 | 754.3 | |
| 2.15 | -24.00 | 1.23 | -24.00 | 25.27 | 296.64 | 24.81 | 310.17 | 0.4987 | 839.5 | 999999 | |
| 0.89 | -24.00 | 0.51 | -24.00 | 25.28 | 296.42 | 24.60 | 310.40 | 0.4962 | 858.3 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.81 | 24.90 | 296.34 | 24.51 | 309.84 | 0.4921 | 707.0 | 497.2 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 25.64 | 296.28 | 24.45 | 311.15 | 0.4976 | 509.0 | 609.2 | |
| 13.07 | 46.09 | 7.50 | 26.49 | 26.73 | 296.23 | 24.40 | 313.00 | 0.5066 | 909.4 | 127.3 | |
| 0.00 | 1.52 | 0.00 | 0.87 | 26.10 | 296.01 | 24.19 | 312.20 | 0.4986 | 576.0 | 470.9 | |
| 0.00 | 1.97 | 0.00 | 1.12 | 25.94 | 295.94 | 24.11 | 312.01 | 0.4964 | 428.0 | 420.6 | |
| 0.00 | 1.61 | 0.00 | 0.91 | 25.47 | 295.65 | 23.83 | 311.53 | 0.4892 | 593.0 | 547.6 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 24.15 | 295.31 | 23.49 | 309.59 | 0.4739 | 715.0 | 594.0 | |
| 1.70 | 4.56 | 0.97 | 2.61 | 26.82 | 295.73 | 23.90 | 313.67 | 0.5019 | 800.8 | 484.1 | |
| 0.00 | 1.61 | 0.00 | 0.92 | 27.15 | 295.65 | 23.83 | 314.27 | 0.5040 | 108.0 | 128.8 | |
| 0.00 | 2.24 | 0.00 | 1.28 | 26.64 | 295.50 | 23.68 | 313.62 | 0.4978 | 942.0 | 735.0 | |
| 26.04 | 87.34 | 14.72 | 49.35 | 25.77 | 294.87 | 23.05 | 312.86 | 0.4830 | 1094.9 | 565.9 | |
| 2.24 | 2.60 | 1.27 | 1.48 | 26.69 | 294.99 | 23.17 | 314.26 | 0.4928 | 767.8 | 749.8 | |
| 0.00 | 2.51 | 0.00 | 1.40 | 25.33 | 293.88 | 22.05 | 313.25 | 0.4679 | 905.0 | 629.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
