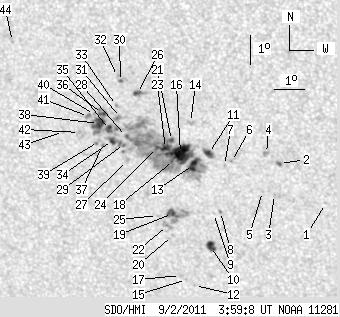

SDO HMI 2011-09-02 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.43 | 387.93 | 50.10 | 222.37 | -19.93 | 258.09 | -13.19 | 154.66 | 0.5038 | 187.8 | -6.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-02 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.46 | -21.56 | 263.50 | -7.78 | 165.32 | 0.4985 | 865.0 | 606.0 | |
| 0.81 | 2.15 | 0.46 | 1.22 | -20.22 | 262.07 | -9.21 | 161.89 | 0.4851 | 972.7 | 789.2 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -21.29 | 261.84 | -9.44 | 162.19 | 0.5015 | 826.0 | 582.2 | |
| 0.00 | 3.49 | 0.00 | 1.97 | -19.89 | 261.66 | -9.61 | 160.92 | 0.4823 | 868.0 | 739.6 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -21.19 | 261.45 | -9.83 | 161.44 | 0.5020 | 831.0 | 608.2 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -20.19 | 260.50 | -10.78 | 159.04 | 0.4926 | 785.0 | 627.2 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -20.33 | 260.26 | -11.02 | 158.72 | 0.4959 | 783.0 | 542.0 | |
| 0.00 | 1.43 | 0.00 | 0.83 | -21.92 | 260.00 | -11.27 | 159.48 | 0.5195 | -645.0 | -550.8 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -21.99 | 259.76 | -11.51 | 159.14 | 0.5218 | -646.0 | -393.7 | |
| 6.44 | 8.32 | 3.78 | 4.89 | -23.15 | 259.56 | -11.71 | 159.65 | 0.5387 | -848.5 | -650.8 | |
| 5.28 | 9.13 | 3.00 | 5.19 | -19.93 | 259.76 | -11.52 | 157.54 | 0.4932 | 1036.0 | 795.3 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -24.55 | 258.89 | -12.39 | 159.57 | 0.5610 | 751.0 | 604.3 | |
| 7.16 | 291.94 | 4.09 | 167.03 | -20.32 | 259.24 | -12.04 | 156.95 | 0.5016 | 986.6 | -33.8 | |
| 0.00 | 2.77 | 0.00 | 1.57 | -18.90 | 259.25 | -12.03 | 155.74 | 0.4819 | 712.0 | 721.4 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -24.34 | 258.64 | -12.64 | 159.05 | 0.5596 | 792.0 | 632.3 | |
| 25.42 | -13.00 | 14.51 | -13.00 | -19.96 | 258.84 | -12.44 | 155.96 | 0.4990 | 1064.1 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.23 | -24.21 | 258.45 | -12.83 | 158.67 | 0.5587 | 583.0 | 580.6 | |
| 0.81 | -13.00 | 0.46 | -13.00 | -20.21 | 258.59 | -12.69 | 155.75 | 0.5039 | 440.0 | 999999 | |
| 6.62 | 19.96 | 3.86 | 11.64 | -22.03 | 258.39 | -12.88 | 156.94 | 0.5299 | 933.4 | 532.2 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -22.80 | 258.32 | -12.96 | 157.43 | 0.5406 | 682.0 | 479.4 | |
| 2.68 | -13.00 | 1.53 | -13.00 | -19.53 | 258.58 | -12.70 | 155.13 | 0.4947 | 931.6 | 999999 | |
| 0.00 | 4.56 | 0.00 | 2.68 | -22.46 | 258.18 | -13.09 | 156.95 | 0.5368 | 863.0 | 676.8 | |
| 4.03 | -13.00 | 2.30 | -13.00 | -19.80 | 258.35 | -12.92 | 155.01 | 0.4999 | 972.5 | 999999 | |
| 1.25 | -13.00 | 0.72 | -13.00 | -19.78 | 258.09 | -13.18 | 154.54 | 0.5012 | 649.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -22.12 | 257.88 | -13.40 | 156.20 | 0.5340 | 733.0 | 538.0 | |
| 3.58 | 6.71 | 2.02 | 3.78 | -17.98 | 257.58 | -13.69 | 151.93 | 0.4804 | -868.4 | -704.9 | |
| 0.00 | 2.33 | 0.00 | 1.34 | -20.25 | 257.06 | -14.22 | 153.27 | 0.5144 | -169.0 | -132.4 | |
| 1.61 | -13.00 | 0.92 | -13.00 | -19.44 | 257.10 | -14.18 | 152.57 | 0.5033 | -847.2 | 999999 | |
| 0.45 | -13.00 | 0.26 | -13.00 | -19.68 | 257.01 | -14.27 | 152.65 | 0.5071 | -600.2 | 999999 | |
| 1.34 | 3.04 | 0.76 | 1.71 | -17.59 | 257.06 | -14.22 | 150.62 | 0.4792 | -846.4 | -796.5 | |
| 0.00 | 5.46 | 0.00 | 3.11 | -18.80 | 256.96 | -14.32 | 151.70 | 0.4959 | -845.0 | -698.3 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -17.43 | 256.97 | -14.30 | 150.30 | 0.4777 | -643.0 | -594.0 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -18.40 | 256.86 | -14.42 | 151.13 | 0.4913 | -891.0 | -723.3 | |
| 3.31 | -13.00 | 1.90 | -13.00 | -19.59 | 256.62 | -14.66 | 151.93 | 0.5087 | -963.1 | 999999 | |
| 4.03 | -13.00 | 2.31 | -13.00 | -19.22 | 256.55 | -14.72 | 151.46 | 0.5043 | -1041.3 | 999999 | |
| 2.77 | -13.00 | 1.58 | -13.00 | -18.69 | 256.37 | -14.90 | 150.62 | 0.4987 | -1079.2 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.83 | -19.77 | 256.27 | -15.01 | 151.55 | 0.5135 | -697.0 | -640.3 | |
| 9.84 | -13.00 | 5.64 | -13.00 | -19.03 | 256.21 | -15.07 | 150.71 | 0.5043 | -981.9 | 999999 | |
| 0.00 | 3.22 | 0.00 | 1.86 | -19.64 | 256.15 | -15.13 | 151.23 | 0.5127 | -635.0 | -576.8 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -18.73 | 256.10 | -15.17 | 150.23 | 0.5012 | -818.0 | -705.7 | |
| 0.00 | 2.60 | 0.00 | 1.49 | -18.80 | 255.90 | -15.38 | 149.98 | 0.5037 | -767.0 | -658.7 | |
| 0.00 | 1.52 | 0.00 | 0.88 | -19.36 | 255.54 | -15.73 | 149.99 | 0.5135 | -714.0 | -528.5 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -19.34 | 255.01 | -16.26 | 149.14 | 0.5173 | -826.0 | -612.3 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -16.39 | 253.61 | -17.67 | 143.59 | 0.4925 | -684.0 | -534.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
