SDO HMI 2011-09-02 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.81 | 387.22 | 58.21 | 229.97 | 24.39 | 300.37 | 29.65 | 304.96 | 0.5509 | 22.5 | -87.9 | |
|
previous
or next observation for the same group /

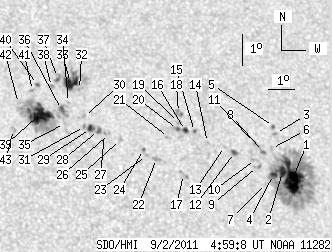

back to the solar disc SDO HMI 2011-09-02 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.42 | 198.07 | 19.12 | 120.58 | 23.23 | 303.74 | 33.01 | 300.47 | 0.5831 | -1111.3 | -338.9 | |
| 5.64 | -1.00 | 3.42 | -1.00 | 23.47 | 303.42 | 32.69 | 301.05 | 0.5804 | -1094.4 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.88 | 24.68 | 303.49 | 32.76 | 302.92 | 0.5879 | -879.0 | -745.6 | |
| 2.77 | -1.00 | 1.68 | -1.00 | 23.40 | 303.04 | 32.32 | 301.16 | 0.5755 | -1107.2 | 999999 | |
| 1.34 | 1.34 | 0.82 | 0.82 | 24.91 | 303.48 | 32.75 | 303.28 | 0.5891 | -565.7 | 0.0 | |
| 0.00 | 1.79 | 0.00 | 1.09 | 24.22 | 303.20 | 32.47 | 302.37 | 0.5819 | -472.0 | -320.4 | |
| 0.00 | 1.07 | 0.00 | 0.65 | 23.14 | 302.70 | 31.97 | 300.94 | 0.5699 | -873.0 | -678.8 | |
| 0.90 | 3.58 | 0.54 | 2.17 | 24.15 | 302.86 | 32.13 | 302.47 | 0.5774 | -745.2 | -601.1 | |
| 0.00 | 3.22 | 0.00 | 1.94 | 23.69 | 302.50 | 31.77 | 301.96 | 0.5705 | -775.0 | -702.5 | |
| 0.00 | 2.24 | 0.00 | 1.35 | 23.91 | 302.48 | 31.76 | 302.34 | 0.5716 | -736.0 | -636.3 | |
| 0.00 | 1.52 | 0.00 | 0.92 | 24.45 | 302.59 | 31.87 | 303.12 | 0.5760 | -696.0 | -583.7 | |
| 2.51 | 3.31 | 1.50 | 1.98 | 24.18 | 301.74 | 31.01 | 303.26 | 0.5642 | -811.5 | -748.1 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 24.40 | 301.41 | 30.68 | 303.83 | 0.5616 | -715.0 | -555.1 | |
| 0.00 | 1.34 | 0.00 | 0.80 | 24.56 | 300.80 | 30.07 | 304.53 | 0.5553 | -582.0 | -466.1 | |
| 1.25 | 1.25 | 0.74 | 0.74 | 24.94 | 300.40 | 29.67 | 305.43 | 0.5530 | -767.1 | 0.0 | |
| 2.24 | 2.95 | 1.32 | 1.75 | 24.99 | 300.07 | 29.34 | 305.76 | 0.5494 | -759.9 | -643.1 | |
| 0.00 | 3.04 | 0.00 | 1.78 | 23.61 | 299.64 | 28.91 | 303.80 | 0.5352 | 602.0 | 573.5 | |
| 0.00 | 4.92 | 0.00 | 2.92 | 25.57 | 299.95 | 29.22 | 306.79 | 0.5521 | -731.0 | -654.8 | |
| 0.00 | 1.97 | 0.00 | 1.17 | 25.25 | 299.87 | 29.14 | 306.35 | 0.5489 | -792.0 | -607.4 | |
| 1.61 | 3.49 | 0.95 | 2.06 | 25.04 | 299.77 | 29.04 | 306.07 | 0.5463 | -839.1 | -713.0 | |
| 0.00 | 1.79 | 0.00 | 1.05 | 24.80 | 299.37 | 28.64 | 306.00 | 0.5399 | 614.0 | 385.8 | |
| 0.00 | 3.31 | 0.00 | 1.93 | 24.17 | 298.76 | 28.03 | 305.43 | 0.5283 | 786.0 | 643.1 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 24.28 | 298.41 | 27.68 | 305.91 | 0.5249 | 616.0 | 581.4 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 24.48 | 298.34 | 27.62 | 306.29 | 0.5255 | 715.0 | 668.1 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 24.84 | 297.57 | 26.84 | 307.56 | 0.5189 | 496.0 | 417.3 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 25.05 | 297.21 | 26.48 | 308.24 | 0.5163 | 561.0 | 443.2 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 25.06 | 297.02 | 26.29 | 308.42 | 0.5142 | 459.0 | 448.1 | |
| 1.07 | 6.80 | 0.62 | 3.92 | 25.17 | 296.82 | 26.09 | 308.78 | 0.5127 | 773.2 | 753.8 | |
| 2.77 | -28.00 | 1.60 | -28.00 | 25.24 | 296.54 | 25.81 | 309.17 | 0.5101 | 874.6 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.13 | 25.64 | 296.41 | 25.68 | 309.95 | 0.5117 | 576.0 | 530.4 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 25.32 | 296.34 | 25.61 | 309.49 | 0.5083 | 1047.0 | 859.2 | |
| 0.00 | 2.06 | 0.00 | 1.19 | 26.50 | 296.43 | 25.70 | 311.35 | 0.5190 | 249.0 | 183.1 | |
| 12.35 | 27.03 | 7.14 | 15.66 | 26.74 | 296.15 | 25.42 | 312.00 | 0.5179 | 899.6 | 154.3 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 26.11 | 295.92 | 25.20 | 311.20 | 0.5100 | 515.0 | 431.9 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 25.45 | 295.63 | 24.90 | 310.40 | 0.5012 | 582.0 | 380.3 | |
| 2.86 | 10.11 | 1.64 | 5.80 | 25.90 | 295.61 | 24.89 | 311.16 | 0.5048 | 846.2 | 660.7 | |
| 0.00 | 4.12 | 0.00 | 2.38 | 26.93 | 295.70 | 24.98 | 312.74 | 0.5146 | 723.0 | 603.8 | |
| 0.00 | 2.51 | 0.00 | 1.44 | 26.65 | 295.41 | 24.69 | 312.59 | 0.5090 | 898.0 | 694.2 | |
| 29.54 | 73.93 | 16.81 | 42.05 | 25.78 | 294.77 | 24.05 | 311.82 | 0.4943 | 1108.0 | 448.5 | |
| 0.54 | 1.79 | 0.31 | 1.03 | 26.74 | 294.91 | 24.19 | 313.24 | 0.5043 | 801.7 | 678.0 | |
| 0.00 | 1.52 | 0.00 | 0.87 | 26.56 | 294.69 | 23.96 | 313.19 | 0.5002 | 797.0 | 589.2 | |
| 0.00 | 1.34 | 0.00 | 0.76 | 26.17 | 294.09 | 23.36 | 313.19 | 0.4900 | 236.0 | 201.1 | |
| 0.00 | 2.60 | 0.00 | 1.46 | 25.35 | 293.73 | 23.00 | 312.21 | 0.4787 | 674.0 | 691.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
