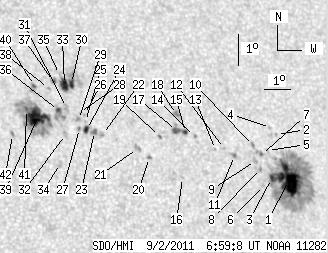

SDO HMI 2011-09-02 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.95 | 385.70 | 53.51 | 231.02 | 24.41 | 300.17 | 30.54 | 304.36 | 0.5616 | -40.0 | -42.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-02 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.45 | 190.39 | 21.82 | 117.36 | 23.22 | 303.71 | 34.08 | 299.86 | 0.5959 | -1153.3 | -324.1 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 24.69 | 303.67 | 34.04 | 302.17 | 0.6030 | -612.0 | -442.5 | |
| 2.42 | -1.00 | 1.48 | -1.00 | 23.32 | 303.06 | 33.43 | 300.39 | 0.5887 | -1099.9 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.72 | 24.92 | 303.50 | 33.87 | 302.63 | 0.6024 | -753.0 | -507.5 | |
| 0.00 | 1.43 | 0.00 | 0.88 | 24.21 | 303.16 | 33.53 | 301.72 | 0.5945 | -427.0 | -411.8 | |
| 0.00 | 1.25 | 0.00 | 0.76 | 23.13 | 302.69 | 33.06 | 300.28 | 0.5831 | -903.0 | -720.6 | |
| 1.16 | 3.58 | 0.71 | 2.19 | 24.10 | 302.89 | 33.26 | 301.71 | 0.5907 | -787.5 | -669.1 | |
| 0.00 | 1.52 | 0.00 | 0.93 | 23.66 | 302.73 | 33.09 | 301.12 | 0.5864 | -884.0 | -713.1 | |
| 0.00 | 2.60 | 0.00 | 1.58 | 23.93 | 302.60 | 32.97 | 301.61 | 0.5863 | -971.0 | -803.6 | |
| 0.00 | 2.42 | 0.00 | 1.48 | 24.40 | 302.66 | 33.03 | 302.32 | 0.5896 | -698.0 | -586.7 | |
| 0.36 | 3.22 | 0.22 | 1.95 | 24.14 | 301.84 | 32.20 | 302.41 | 0.5783 | -943.5 | -700.8 | |
| 0.00 | 1.07 | 0.00 | 0.65 | 24.38 | 301.51 | 31.88 | 303.01 | 0.5758 | -745.0 | -572.8 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 24.37 | 301.16 | 31.53 | 303.22 | 0.5715 | -858.0 | -683.6 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 24.83 | 300.47 | 30.84 | 304.42 | 0.5661 | -831.0 | -747.4 | |
| 2.06 | 9.13 | 1.23 | 5.46 | 24.98 | 300.16 | 30.53 | 304.88 | 0.5634 | -836.5 | -655.6 | |
| 0.00 | 1.34 | 0.00 | 0.79 | 23.57 | 299.67 | 30.04 | 302.93 | 0.5488 | 693.0 | 534.1 | |
| 3.76 | -15.00 | 2.24 | -15.00 | 25.06 | 299.83 | 30.20 | 305.24 | 0.5601 | -888.9 | 999999 | |
| 0.00 | 4.21 | 0.00 | 2.52 | 25.56 | 299.97 | 30.34 | 305.95 | 0.5650 | -898.0 | -718.2 | |
| 0.00 | 1.25 | 0.00 | 0.74 | 24.91 | 299.14 | 29.51 | 305.52 | 0.5509 | 594.0 | 519.7 | |
| 0.00 | 1.61 | 0.00 | 0.95 | 24.27 | 298.59 | 28.96 | 304.88 | 0.5402 | 782.0 | 662.2 | |
| 0.00 | 3.31 | 0.00 | 1.94 | 24.58 | 298.21 | 28.58 | 305.69 | 0.5377 | 822.0 | 673.3 | |
| 0.00 | 2.60 | 0.00 | 1.51 | 25.09 | 297.02 | 27.38 | 307.52 | 0.5272 | 786.0 | 584.8 | |
| 0.00 | 3.58 | 0.00 | 2.08 | 25.20 | 296.74 | 27.11 | 307.94 | 0.5249 | 869.0 | 697.3 | |
| 2.95 | 4.03 | 1.71 | 2.34 | 25.28 | 296.46 | 26.83 | 308.32 | 0.5222 | 807.5 | 628.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 25.54 | 296.49 | 26.85 | 308.71 | 0.5244 | 469.0 | 384.0 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 25.76 | 296.50 | 26.87 | 309.07 | 0.5263 | 449.0 | 337.3 | |
| 0.00 | 1.70 | 0.00 | 0.98 | 25.33 | 296.21 | 26.58 | 308.61 | 0.5196 | 974.0 | 837.7 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 25.84 | 296.33 | 26.70 | 309.34 | 0.5249 | 450.0 | 419.3 | |
| 0.00 | 2.24 | 0.00 | 1.30 | 25.62 | 296.24 | 26.61 | 309.06 | 0.5222 | 662.0 | 619.5 | |
| 3.58 | 26.49 | 2.09 | 15.47 | 26.77 | 296.26 | 26.63 | 310.91 | 0.5316 | 734.2 | 162.1 | |
| 0.00 | 3.58 | 0.00 | 2.08 | 26.02 | 295.89 | 26.25 | 310.04 | 0.5213 | 508.0 | 480.1 | |
| 0.00 | 2.42 | 0.00 | 1.39 | 25.17 | 295.65 | 26.02 | 308.86 | 0.5118 | 767.0 | 667.1 | |
| 7.07 | -30.00 | 4.12 | -30.00 | 26.76 | 295.99 | 26.36 | 311.13 | 0.5285 | 919.9 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.53 | 24.26 | 295.26 | 25.63 | 307.67 | 0.5002 | 583.0 | 574.8 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 27.09 | 295.89 | 26.25 | 311.75 | 0.5300 | 207.0 | 186.5 | |
| 2.06 | 10.47 | 1.19 | 6.05 | 25.94 | 295.57 | 25.94 | 310.21 | 0.5171 | 813.1 | 724.1 | |
| 1.34 | 2.69 | 0.78 | 1.56 | 26.87 | 295.61 | 25.97 | 311.68 | 0.5251 | 751.0 | 549.3 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 26.66 | 295.37 | 25.73 | 311.57 | 0.5207 | 817.0 | 707.2 | |
| 24.79 | 79.31 | 14.22 | 45.45 | 25.76 | 294.74 | 25.11 | 310.70 | 0.5062 | 1119.0 | 497.9 | |
| 1.70 | 5.01 | 0.98 | 2.89 | 26.78 | 294.87 | 25.24 | 312.25 | 0.5162 | 725.8 | 675.8 | |
| 1.25 | -39.00 | 0.72 | -39.00 | 26.03 | 294.40 | 24.76 | 311.50 | 0.5046 | 1034.2 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.12 | 25.26 | 293.71 | 24.08 | 310.92 | 0.4902 | 741.0 | 674.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
