SDO HMI 2011-09-02 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.05 | 349.59 | 43.49 | 197.21 | -19.75 | 258.04 | -9.40 | 161.18 | 0.4795 | 120.6 | -48.7 | |
|
previous
or next observation for the same group /

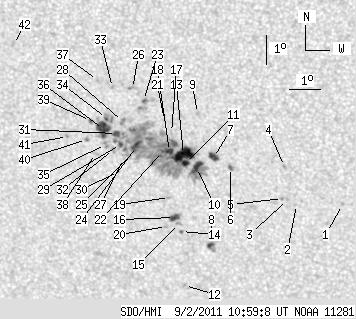

back to the solar disc SDO HMI 2011-09-02 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.66 | -21.45 | 263.91 | -3.53 | 173.19 | 0.4845 | 680.0 | 582.9 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -21.46 | 262.41 | -5.03 | 170.35 | 0.4880 | 724.0 | 563.8 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -21.29 | 262.13 | -5.31 | 169.74 | 0.4863 | 729.0 | 672.4 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.16 | 262.07 | -5.37 | 169.17 | 0.4693 | 967.0 | 666.5 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -21.26 | 261.96 | -5.47 | 169.42 | 0.4862 | 879.0 | 749.9 | |
| 1.61 | 2.15 | 0.91 | 1.21 | -20.22 | 260.32 | -7.12 | 165.79 | 0.4761 | 792.8 | 857.0 | |
| 5.19 | 6.80 | 2.91 | 3.82 | -19.89 | 259.78 | -7.66 | 164.58 | 0.4733 | 959.9 | 802.1 | |
| 2.95 | 6.08 | 1.71 | 3.52 | -22.93 | 259.52 | -7.92 | 165.78 | 0.5188 | -854.9 | -671.0 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -18.41 | 259.33 | -8.11 | 162.76 | 0.4532 | 640.0 | 491.8 | |
| 7.87 | 26.31 | 4.44 | 14.86 | -20.24 | 259.21 | -8.23 | 163.71 | 0.4808 | 946.6 | 420.2 | |
| 3.22 | 219.59 | 1.82 | 123.74 | -20.11 | 258.86 | -8.58 | 162.97 | 0.4805 | 868.6 | -3.5 | |
| 0.00 | 1.70 | 0.00 | 1.00 | -24.36 | 258.56 | -8.88 | 164.92 | 0.5428 | 761.0 | 538.9 | |
| 17.54 | -11.00 | 9.87 | -11.00 | -19.81 | 258.81 | -8.63 | 162.68 | 0.4762 | 1079.4 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -22.46 | 258.58 | -8.86 | 163.92 | 0.5156 | 594.0 | 570.1 | |
| 0.00 | 2.06 | 0.00 | 1.19 | -22.19 | 258.50 | -8.94 | 163.62 | 0.5120 | 798.0 | 639.0 | |
| 5.19 | 6.17 | 2.98 | 3.55 | -21.98 | 258.38 | -9.06 | 163.29 | 0.5095 | 879.6 | 628.9 | |
| 0.00 | 1.70 | 0.00 | 0.95 | -19.07 | 258.46 | -8.98 | 161.51 | 0.4671 | 119.0 | 140.5 | |
| 3.76 | -11.00 | 2.12 | -11.00 | -19.72 | 258.36 | -9.08 | 161.77 | 0.4770 | 946.4 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.92 | -21.29 | 258.26 | -9.18 | 162.65 | 0.5002 | 653.0 | 621.6 | |
| 0.00 | 1.97 | 0.00 | 1.14 | -22.30 | 258.10 | -9.34 | 162.99 | 0.5153 | 430.0 | 390.1 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -18.67 | 258.25 | -9.18 | 160.82 | 0.4622 | 309.0 | 365.6 | |
| 0.81 | -11.00 | 0.45 | -11.00 | -19.72 | 258.13 | -9.31 | 161.35 | 0.4781 | 769.0 | 999999 | |
| 0.36 | 9.22 | 0.20 | 5.13 | -18.01 | 257.61 | -9.83 | 159.06 | 0.4561 | -943.5 | -480.0 | |
| 6.17 | -11.00 | 3.48 | -11.00 | -19.57 | 257.29 | -10.15 | 159.69 | 0.4802 | -588.7 | 999999 | |
| 0.45 | -11.00 | 0.25 | -11.00 | -19.78 | 257.18 | -10.26 | 159.64 | 0.4838 | 99.8 | 999999 | |
| 0.00 | 3.49 | 0.00 | 1.94 | -17.62 | 257.28 | -10.16 | 158.09 | 0.4523 | -887.0 | -744.1 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -19.99 | 256.84 | -10.60 | 159.19 | 0.4886 | -474.0 | -407.0 | |
| 0.00 | 3.31 | 0.00 | 1.86 | -18.74 | 256.89 | -10.55 | 158.28 | 0.4705 | -960.0 | -887.4 | |
| 2.15 | -11.00 | 1.21 | -11.00 | -19.52 | 256.77 | -10.67 | 158.70 | 0.4823 | -886.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -20.44 | 256.64 | -10.80 | 159.19 | 0.4960 | -633.0 | -504.8 | |
| 3.85 | -11.00 | 2.17 | -11.00 | -19.15 | 256.67 | -10.77 | 158.21 | 0.4776 | -1027.9 | 999999 | |
| 0.00 | 2.60 | 0.00 | 1.47 | -19.69 | 256.53 | -10.91 | 158.41 | 0.4861 | -694.0 | -556.6 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -17.60 | 256.64 | -10.80 | 156.83 | 0.4559 | -807.0 | -625.3 | |
| 1.25 | 27.74 | 0.70 | 15.61 | -18.65 | 256.37 | -11.07 | 157.26 | 0.4723 | -1015.3 | -725.5 | |
| 0.00 | 3.04 | 0.00 | 1.72 | -19.53 | 256.28 | -11.16 | 157.83 | 0.4852 | -650.0 | -608.7 | |
| 14.32 | -34.00 | 8.07 | -34.00 | -19.02 | 256.25 | -11.19 | 157.35 | 0.4783 | -919.6 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -17.38 | 256.16 | -11.28 | 155.72 | 0.4557 | -483.0 | -432.8 | |
| 0.00 | 2.15 | 0.00 | 1.22 | -19.84 | 255.93 | -11.51 | 157.46 | 0.4916 | -399.0 | -364.7 | |
| 0.36 | 2.06 | 0.20 | 1.16 | -18.73 | 255.85 | -11.59 | 156.36 | 0.4766 | -778.8 | -651.9 | |
| 0.00 | 2.42 | 0.00 | 1.37 | -19.38 | 255.67 | -11.77 | 156.61 | 0.4867 | -781.0 | -647.1 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -19.29 | 255.05 | -12.39 | 155.45 | 0.4893 | -741.0 | -622.4 | |
| 0.00 | 2.24 | 0.00 | 1.25 | -16.27 | 253.52 | -13.92 | 149.67 | 0.4592 | -837.0 | -663.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
