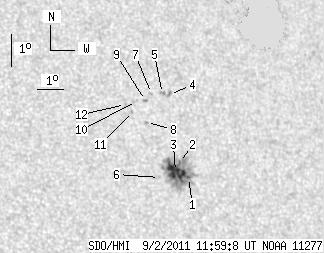

SDO HMI 2011-09-02 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.22 | 92.32 | 12.03 | 54.98 | 19.01 | 299.33 | 32.44 | 293.75 | 0.5564 | -653.0 | -366.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-02 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.43 | 79.18 | 0.85 | 47.15 | 18.51 | 299.81 | 32.92 | 292.67 | 0.5606 | -608.9 | -393.6 | |
| 1.07 | -1.00 | 0.64 | -1.00 | 18.99 | 299.57 | 32.68 | 293.61 | 0.5593 | -425.2 | 999999 | |
| 17.72 | -1.00 | 10.54 | -1.00 | 18.72 | 299.36 | 32.47 | 293.24 | 0.5555 | -1064.6 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.45 | 21.11 | 299.69 | 32.80 | 297.14 | 0.5700 | -800.0 | -638.0 | |
| 0.00 | 2.51 | 0.00 | 1.50 | 21.16 | 299.43 | 32.54 | 297.36 | 0.5669 | -837.0 | -731.0 | |
| 0.00 | 1.16 | 0.00 | 0.69 | 18.58 | 298.72 | 31.83 | 293.29 | 0.5464 | -817.0 | -694.9 | |
| 0.00 | 1.07 | 0.00 | 0.64 | 21.18 | 299.01 | 32.12 | 297.63 | 0.5618 | -710.0 | -582.2 | |
| 0.00 | 1.16 | 0.00 | 0.69 | 20.30 | 298.61 | 31.72 | 296.35 | 0.5524 | -703.0 | -522.5 | |
| 0.00 | 1.79 | 0.00 | 1.07 | 20.98 | 298.73 | 31.84 | 297.45 | 0.5572 | 526.0 | 402.4 | |
| 0.00 | 0.89 | 0.00 | 0.53 | 20.97 | 298.39 | 31.50 | 297.63 | 0.5528 | 310.0 | 407.0 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 20.67 | 298.16 | 31.28 | 297.24 | 0.5484 | 695.0 | 491.0 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 20.90 | 297.95 | 31.06 | 297.76 | 0.5468 | 614.0 | 564.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
