SDO HMI 2011-09-02 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.24 | 116.57 | 16.56 | 63.73 | 13.68 | 291.57 | 24.68 | 287.10 | 0.4265 | -649.8 | -422.8 | |
|
previous
or next observation for the same group /

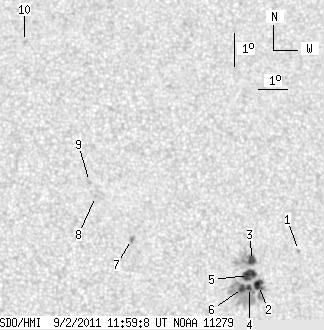

back to the solar disc SDO HMI 2011-09-02 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.85 | 14.23 | 293.58 | 26.69 | 287.27 | 0.4579 | -722.0 | -562.1 | |
| 6.89 | 107.81 | 3.78 | 59.01 | 13.24 | 292.08 | 25.19 | 285.76 | 0.4323 | -931.7 | -522.6 | |
| 5.64 | -2.00 | 3.09 | -2.00 | 14.01 | 291.96 | 25.07 | 287.56 | 0.4330 | -912.6 | 999999 | |
| 2.24 | -2.00 | 1.22 | -2.00 | 13.20 | 291.77 | 24.88 | 285.80 | 0.4274 | -1104.6 | 999999 | |
| 11.00 | -2.00 | 6.03 | -2.00 | 13.56 | 291.77 | 24.88 | 286.63 | 0.4287 | -1032.3 | 999999 | |
| 4.47 | -2.00 | 2.44 | -2.00 | 13.18 | 291.52 | 24.63 | 285.86 | 0.4237 | -1139.5 | 999999 | |
| 0.00 | 3.04 | 0.00 | 1.63 | 14.85 | 287.94 | 21.05 | 292.13 | 0.3764 | 999.0 | 752.7 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.21 | 286.88 | 19.99 | 296.54 | 0.3684 | 868.0 | 664.8 | |
| 0.00 | 1.97 | 0.00 | 1.05 | 16.68 | 286.72 | 19.83 | 297.86 | 0.3692 | 777.0 | 650.1 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 21.08 | 285.04 | 18.15 | 310.20 | 0.3823 | 764.0 | 693.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
