SDO HMI 2011-09-02 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.42 | 348.76 | 43.09 | 196.36 | -19.76 | 258.03 | -8.86 | 162.20 | 0.4770 | 126.8 | -12.7 | |
|
previous
or next observation for the same group /

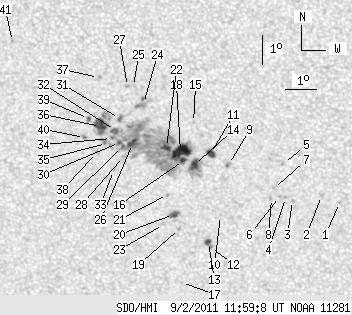

back to the solar disc SDO HMI 2011-09-02 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.51 | -21.48 | 263.89 | -3.00 | 174.20 | 0.4842 | 690.0 | 536.8 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -21.24 | 263.31 | -3.58 | 173.03 | 0.4815 | 800.0 | 597.0 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -21.43 | 262.36 | -4.53 | 171.27 | 0.4863 | 764.0 | 643.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -21.33 | 262.13 | -4.76 | 170.80 | 0.4853 | 860.0 | 622.9 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -20.16 | 262.11 | -4.78 | 170.32 | 0.4677 | 812.0 | 654.4 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -21.29 | 261.94 | -4.95 | 170.42 | 0.4853 | 902.0 | 767.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -21.02 | 261.75 | -5.14 | 169.97 | 0.4816 | 834.0 | 704.7 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -21.37 | 261.68 | -5.21 | 169.95 | 0.4870 | 635.0 | 611.6 | |
| 0.00 | 2.59 | 0.00 | 1.46 | -20.22 | 260.32 | -6.57 | 166.86 | 0.4739 | 872.0 | 686.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -21.98 | 259.98 | -6.91 | 167.09 | 0.5012 | -693.0 | -519.3 | |
| 5.28 | 6.26 | 2.96 | 3.51 | -19.85 | 259.75 | -7.14 | 165.56 | 0.4706 | 932.2 | 741.8 | |
| 0.89 | 5.37 | 0.52 | 3.10 | -23.10 | 259.59 | -7.30 | 166.94 | 0.5190 | -642.3 | -731.2 | |
| 2.95 | -12.00 | 1.71 | -12.00 | -22.93 | 259.53 | -7.35 | 166.75 | 0.5166 | -803.5 | 999999 | |
| 7.25 | 23.08 | 4.08 | 13.02 | -20.24 | 259.22 | -7.67 | 164.75 | 0.4784 | 959.2 | 434.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -18.81 | 259.25 | -7.64 | 163.96 | 0.4571 | 692.0 | 535.4 | |
| 2.42 | 226.27 | 1.36 | 127.28 | -20.11 | 258.86 | -8.02 | 164.01 | 0.4779 | 865.9 | 25.8 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -24.35 | 258.55 | -8.34 | 165.79 | 0.5406 | 494.0 | 501.1 | |
| 17.27 | -16.00 | 9.70 | -16.00 | -19.80 | 258.78 | -8.11 | 163.67 | 0.4738 | 1078.2 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.03 | -22.45 | 258.60 | -8.29 | 164.89 | 0.5132 | 782.0 | 617.5 | |
| 5.19 | 8.05 | 2.98 | 4.62 | -21.97 | 258.43 | -8.46 | 164.33 | 0.5069 | 884.9 | 601.0 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -21.28 | 258.28 | -8.61 | 163.65 | 0.4976 | 739.0 | 614.0 | |
| 3.76 | -16.00 | 2.11 | -16.00 | -19.67 | 258.33 | -8.55 | 162.74 | 0.4739 | 922.2 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -22.33 | 258.08 | -8.81 | 163.92 | 0.5134 | 728.0 | 465.3 | |
| 0.00 | 10.83 | 0.00 | 6.02 | -18.21 | 257.67 | -9.22 | 160.40 | 0.4556 | -164.0 | -378.1 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -17.64 | 257.38 | -9.51 | 159.38 | 0.4490 | -952.0 | -849.5 | |
| 6.44 | -16.00 | 3.63 | -16.00 | -19.56 | 257.24 | -9.65 | 160.59 | 0.4775 | -566.1 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -17.65 | 257.18 | -9.71 | 159.00 | 0.4501 | -983.0 | -765.8 | |
| 0.00 | 1.79 | 0.00 | 1.01 | -20.01 | 256.91 | -9.98 | 160.33 | 0.4856 | -568.0 | -337.5 | |
| 1.34 | -16.00 | 0.76 | -16.00 | -19.67 | 256.90 | -9.99 | 160.06 | 0.4808 | -623.9 | 999999 | |
| 1.97 | -16.00 | 1.11 | -16.00 | -19.54 | 256.81 | -10.08 | 159.80 | 0.4794 | -828.5 | 999999 | |
| 1.88 | 2.51 | 1.05 | 1.40 | -18.73 | 256.86 | -10.03 | 159.26 | 0.4674 | -935.6 | -826.3 | |
| 4.03 | -16.00 | 2.26 | -16.00 | -19.14 | 256.71 | -10.18 | 159.29 | 0.4741 | -1016.9 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -20.50 | 256.55 | -10.34 | 160.04 | 0.4944 | -778.0 | -588.9 | |
| 0.54 | -16.00 | 0.30 | -16.00 | -19.41 | 256.56 | -10.33 | 159.23 | 0.4789 | -901.8 | 999999 | |
| 0.00 | 7.16 | 0.00 | 4.04 | -19.58 | 256.39 | -10.50 | 159.05 | 0.4823 | -614.0 | -623.0 | |
| 13.33 | 27.65 | 7.50 | 15.53 | -19.01 | 256.23 | -10.66 | 158.30 | 0.4750 | -900.4 | -772.8 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -17.37 | 256.27 | -10.62 | 156.96 | 0.4514 | -724.0 | -627.7 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -19.90 | 256.04 | -10.85 | 158.67 | 0.4886 | -571.0 | -451.8 | |
| 1.88 | 2.51 | 1.06 | 1.41 | -18.75 | 255.85 | -11.04 | 157.40 | 0.4735 | -718.6 | -596.6 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -19.40 | 255.68 | -11.21 | 157.62 | 0.4836 | -732.0 | -671.3 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -16.25 | 253.56 | -13.33 | 150.71 | 0.4544 | -835.0 | -688.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
