SDO HMI 2011-09-02 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.88 | 334.80 | 43.67 | 187.68 | -19.70 | 258.02 | -7.21 | 165.31 | 0.4691 | 71.1 | -37.6 | |
|
previous
or next observation for the same group /

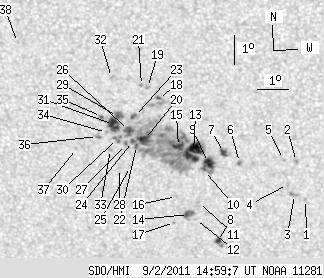

back to the solar disc SDO HMI 2011-09-02 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.56 | -21.44 | 262.37 | -2.87 | 174.45 | 0.4833 | 785.0 | 640.5 | |
| 0.00 | 1.97 | 0.00 | 1.10 | -20.14 | 262.10 | -3.13 | 173.62 | 0.4637 | 846.0 | 628.7 | |
| 0.00 | 3.58 | 0.00 | 2.02 | -21.27 | 262.01 | -3.22 | 173.73 | 0.4812 | 749.0 | 680.4 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -20.92 | 261.79 | -3.44 | 173.21 | 0.4764 | 830.0 | 618.7 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -20.07 | 261.68 | -3.55 | 172.76 | 0.4635 | 532.0 | 487.4 | |
| 0.00 | 2.06 | 0.00 | 1.15 | -20.19 | 260.26 | -4.98 | 169.95 | 0.4686 | 753.0 | 580.5 | |
| 4.47 | 6.62 | 2.50 | 3.70 | -19.85 | 259.75 | -5.48 | 168.81 | 0.4649 | 889.5 | 674.5 | |
| 2.68 | 6.26 | 1.54 | 3.61 | -22.93 | 259.44 | -5.80 | 169.49 | 0.5119 | -821.8 | -615.3 | |
| 6.17 | 14.76 | 3.46 | 8.29 | -20.20 | 259.25 | -5.98 | 167.99 | 0.4717 | 961.4 | 515.9 | |
| 0.89 | -9.00 | 0.50 | -9.00 | -20.48 | 259.11 | -6.12 | 167.84 | 0.4763 | 643.8 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -21.58 | 258.87 | -6.36 | 167.90 | 0.4936 | 887.0 | 655.2 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -22.17 | 258.75 | -6.49 | 167.94 | 0.5027 | 442.0 | 439.4 | |
| 23.43 | 218.47 | 13.12 | 122.35 | -19.83 | 258.78 | -6.45 | 166.89 | 0.4678 | 1015.9 | 33.2 | |
| 4.20 | 8.14 | 2.40 | 4.65 | -22.00 | 258.52 | -6.71 | 167.46 | 0.5009 | 763.1 | 784.3 | |
| 5.10 | -13.00 | 2.85 | -13.00 | -19.67 | 258.31 | -6.93 | 165.86 | 0.4671 | 916.5 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -21.38 | 258.16 | -7.07 | 166.50 | 0.4930 | 631.0 | 433.6 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -22.28 | 258.05 | -7.19 | 166.74 | 0.5067 | 586.0 | 498.0 | |
| 1.34 | 11.63 | 0.74 | 6.43 | -18.06 | 257.73 | -7.50 | 163.74 | 0.4453 | -833.4 | -306.5 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -17.70 | 257.39 | -7.84 | 162.80 | 0.4414 | -914.0 | -757.2 | |
| 7.69 | -13.00 | 4.31 | -13.00 | -19.45 | 257.21 | -8.02 | 163.61 | 0.4682 | -689.1 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -17.64 | 257.20 | -8.03 | 162.37 | 0.4413 | -896.0 | -752.5 | |
| 1.16 | -13.00 | 0.65 | -13.00 | -19.66 | 256.94 | -8.29 | 163.23 | 0.4725 | -698.9 | 999999 | |
| 0.00 | 4.20 | 0.00 | 2.34 | -18.68 | 256.93 | -8.31 | 162.55 | 0.4581 | -1011.0 | -833.6 | |
| 1.88 | -13.00 | 1.05 | -13.00 | -19.53 | 256.82 | -8.41 | 162.91 | 0.4711 | -818.5 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -20.38 | 256.71 | -8.52 | 163.25 | 0.4841 | -661.0 | -415.7 | |
| 5.37 | -13.00 | 3.00 | -13.00 | -19.16 | 256.71 | -8.52 | 162.45 | 0.4661 | -1035.5 | 999999 | |
| 0.00 | 3.04 | 0.00 | 1.71 | -19.63 | 256.62 | -8.61 | 162.60 | 0.4735 | -716.0 | -601.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -20.46 | 256.35 | -8.89 | 162.63 | 0.4868 | -653.0 | -557.5 | |
| 1.25 | 26.47 | 0.70 | 14.79 | -18.69 | 256.38 | -8.85 | 161.48 | 0.4609 | -1137.1 | -807.8 | |
| 0.00 | 4.83 | 0.00 | 2.71 | -19.44 | 256.34 | -8.90 | 161.93 | 0.4720 | -730.0 | -722.4 | |
| 10.82 | -29.00 | 6.05 | -29.00 | -18.96 | 256.24 | -9.00 | 161.40 | 0.4656 | -978.5 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -17.39 | 256.25 | -8.98 | 160.24 | 0.4424 | -749.0 | -625.4 | |
| 0.00 | 1.97 | 0.00 | 1.11 | -19.81 | 256.09 | -9.14 | 161.72 | 0.4787 | -605.0 | -435.1 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -19.24 | 255.99 | -9.24 | 161.13 | 0.4708 | -559.0 | -467.5 | |
| 1.43 | -29.00 | 0.80 | -29.00 | -18.70 | 255.86 | -9.37 | 160.48 | 0.4637 | -652.2 | 999999 | |
| 0.00 | 2.95 | 0.00 | 1.66 | -19.38 | 255.69 | -9.54 | 160.67 | 0.4744 | -766.0 | -648.0 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -19.81 | 254.98 | -10.25 | 159.68 | 0.4841 | -593.0 | -511.7 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.30 | 253.29 | -11.94 | 153.37 | 0.4450 | -581.0 | -428.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
