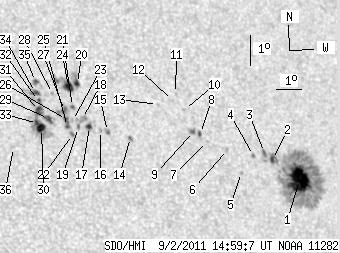

SDO HMI 2011-09-02 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.75 | 351.62 | 57.05 | 221.51 | 24.29 | 300.59 | 35.36 | 301.20 | 0.6176 | -46.9 | -55.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-02 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.59 | 187.53 | 23.17 | 122.17 | 23.16 | 303.95 | 38.72 | 297.57 | 0.6510 | -1067.1 | -248.6 | |
| 2.95 | 16.63 | 1.91 | 10.73 | 23.86 | 303.06 | 37.82 | 299.00 | 0.6434 | -855.6 | -580.3 | |
| 1.70 | -2.00 | 1.09 | -2.00 | 24.10 | 302.80 | 37.57 | 299.47 | 0.6416 | -730.7 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.97 | 24.04 | 302.32 | 37.09 | 299.61 | 0.6357 | -783.0 | -666.6 | |
| 0.00 | 1.25 | 0.00 | 0.79 | 23.55 | 301.66 | 36.43 | 299.18 | 0.6257 | -695.0 | -604.6 | |
| 0.00 | 1.79 | 0.00 | 1.13 | 24.30 | 301.34 | 36.10 | 300.48 | 0.6254 | -803.0 | -569.3 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 24.61 | 300.62 | 35.38 | 301.32 | 0.6184 | -627.0 | -468.2 | |
| 1.61 | 2.95 | 1.01 | 1.85 | 24.88 | 300.42 | 35.18 | 301.83 | 0.6175 | -647.4 | -470.3 | |
| 0.80 | 3.40 | 0.50 | 2.13 | 24.96 | 300.16 | 34.92 | 302.10 | 0.6149 | -964.3 | -673.8 | |
| 0.00 | 0.89 | 0.00 | 0.56 | 25.68 | 300.03 | 34.79 | 303.25 | 0.6172 | -732.0 | -558.4 | |
| 0.00 | 0.98 | 0.00 | 0.62 | 26.21 | 299.84 | 34.60 | 304.15 | 0.6179 | -454.0 | -377.1 | |
| 0.00 | 0.89 | 0.00 | 0.56 | 26.00 | 299.64 | 34.41 | 303.95 | 0.6145 | -576.0 | -488.2 | |
| 0.00 | 0.98 | 0.00 | 0.61 | 25.91 | 299.01 | 33.77 | 304.20 | 0.6068 | -623.0 | -557.6 | |
| 1.34 | 2.33 | 0.82 | 1.42 | 24.94 | 297.62 | 32.39 | 303.57 | 0.5851 | 637.7 | 657.4 | |
| 0.00 | 2.95 | 0.00 | 1.79 | 25.18 | 296.79 | 31.55 | 304.51 | 0.5768 | 804.0 | 608.0 | |
| 0.00 | 1.61 | 0.00 | 0.97 | 25.23 | 296.53 | 31.29 | 304.76 | 0.5741 | 617.0 | 477.6 | |
| 2.33 | 3.58 | 1.40 | 2.15 | 25.38 | 296.14 | 30.90 | 305.27 | 0.5705 | 905.0 | 740.8 | |
| 0.00 | 5.37 | 0.00 | 3.23 | 25.65 | 295.94 | 30.71 | 305.83 | 0.5700 | 630.0 | 627.3 | |
| 0.00 | 1.43 | 0.00 | 0.86 | 25.38 | 295.71 | 30.47 | 305.57 | 0.5654 | 833.0 | 729.5 | |
| 2.95 | 27.72 | 1.79 | 16.76 | 26.77 | 296.08 | 30.84 | 307.48 | 0.5789 | 587.1 | 281.1 | |
| 1.34 | 1.70 | 0.81 | 1.02 | 26.06 | 295.67 | 30.43 | 306.66 | 0.5694 | 509.3 | 548.0 | |
| 1.25 | 2.15 | 0.75 | 1.28 | 25.17 | 295.42 | 30.18 | 305.45 | 0.5607 | 630.7 | 605.2 | |
| 0.00 | 1.34 | 0.00 | 0.80 | 25.61 | 295.54 | 30.31 | 306.06 | 0.5650 | 765.0 | 642.7 | |
| 7.15 | -20.00 | 4.32 | -20.00 | 26.70 | 295.70 | 30.46 | 307.64 | 0.5742 | 854.5 | 999999 | |
| 1.52 | 13.15 | 0.91 | 7.87 | 25.43 | 295.30 | 30.06 | 305.96 | 0.5610 | 821.0 | 680.8 | |
| 3.49 | -25.00 | 2.09 | -25.00 | 25.66 | 295.32 | 30.09 | 306.29 | 0.5628 | 856.0 | 999999 | |
| 3.13 | -25.00 | 1.88 | -25.00 | 25.95 | 295.32 | 30.09 | 306.75 | 0.5648 | 845.6 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.75 | 26.51 | 295.02 | 29.78 | 307.87 | 0.5652 | 743.0 | 534.7 | |
| 4.20 | 62.06 | 2.50 | 36.81 | 25.73 | 294.64 | 29.41 | 306.92 | 0.5554 | 874.0 | 511.0 | |
| 5.01 | -29.00 | 2.96 | -29.00 | 25.43 | 294.29 | 29.06 | 306.71 | 0.5493 | 1167.2 | 999999 | |
| 5.28 | -29.00 | 3.13 | -29.00 | 26.00 | 294.33 | 29.10 | 307.60 | 0.5538 | 939.0 | 999999 | |
| 1.16 | -29.00 | 0.69 | -29.00 | 26.32 | 294.42 | 29.19 | 308.03 | 0.5570 | 835.5 | 999999 | |
| 2.77 | -29.00 | 1.64 | -29.00 | 25.60 | 294.18 | 28.95 | 307.07 | 0.5492 | 1024.3 | 999999 | |
| 3.85 | -29.00 | 2.29 | -29.00 | 26.58 | 294.38 | 29.14 | 308.48 | 0.5584 | 822.4 | 999999 | |
| 2.33 | 4.38 | 1.39 | 2.62 | 26.93 | 294.48 | 29.24 | 308.94 | 0.5621 | 676.6 | 516.3 | |
| 0.00 | 1.34 | 0.00 | 0.78 | 24.89 | 293.09 | 27.85 | 306.80 | 0.5314 | 609.0 | 442.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
