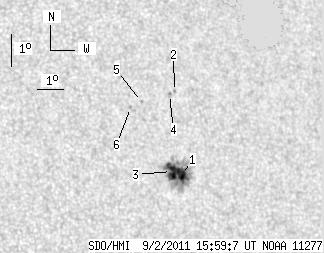

SDO HMI 2011-09-02 15:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.30 | 68.67 | 12.36 | 41.87 | 18.87 | 299.29 | 34.60 | 292.57 | 0.5842 | -745.8 | -382.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-02 15:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.12 | 63.22 | 5.57 | 38.53 | 18.62 | 299.51 | 34.82 | 292.06 | 0.5861 | -917.9 | -426.4 | |
| 0.00 | 1.07 | 0.00 | 0.66 | 21.19 | 299.88 | 35.20 | 296.09 | 0.6007 | -570.0 | -511.5 | |
| 11.18 | -1.00 | 6.79 | -1.00 | 18.74 | 299.14 | 34.46 | 292.41 | 0.5818 | -1046.2 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.16 | 21.11 | 299.66 | 34.98 | 296.06 | 0.5976 | -737.0 | -520.1 | |
| 0.00 | 1.07 | 0.00 | 0.65 | 20.97 | 298.52 | 33.84 | 296.38 | 0.5826 | 476.0 | 407.8 | |
| 0.00 | 1.43 | 0.00 | 0.87 | 20.81 | 298.06 | 33.37 | 296.35 | 0.5760 | 846.0 | 629.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
