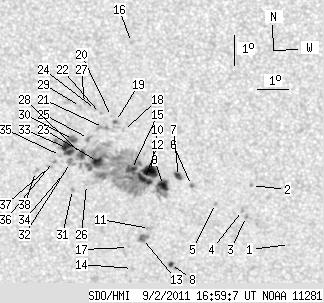

SDO HMI 2011-09-02 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.37 | 318.97 | 39.88 | 178.32 | -19.59 | 257.87 | -6.26 | 167.11 | 0.4641 | 33.8 | -19.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-09-02 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.51 | -22.18 | 263.34 | -0.79 | 178.51 | 0.4928 | 380.0 | 413.3 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -20.16 | 262.13 | -2.00 | 175.92 | 0.4625 | 865.0 | 729.0 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -21.22 | 261.95 | -2.18 | 175.74 | 0.4791 | 963.0 | 814.6 | |
| 0.00 | 1.79 | 0.00 | 1.01 | -21.01 | 261.82 | -2.30 | 175.46 | 0.4761 | 877.0 | 755.2 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -20.78 | 260.95 | -3.18 | 173.70 | 0.4738 | 810.0 | 633.4 | |
| 1.34 | 1.97 | 0.75 | 1.10 | -20.17 | 260.19 | -3.94 | 172.01 | 0.4659 | 746.9 | 711.7 | |
| 4.38 | 6.26 | 2.44 | 3.49 | -19.87 | 259.78 | -4.35 | 171.09 | 0.4622 | 919.6 | 681.6 | |
| 1.70 | 3.84 | 0.98 | 2.21 | -22.91 | 259.43 | -4.70 | 171.43 | 0.5089 | -828.5 | -652.1 | |
| 6.62 | 21.46 | 3.70 | 12.03 | -20.18 | 259.29 | -4.84 | 170.22 | 0.4682 | 1018.3 | 477.2 | |
| 12.70 | 233.43 | 7.08 | 130.37 | -19.71 | 258.88 | -5.25 | 169.22 | 0.4621 | 1152.8 | -16.9 | |
| 0.00 | 2.32 | 0.00 | 1.32 | -21.66 | 258.78 | -5.35 | 169.82 | 0.4919 | 800.0 | 668.8 | |
| 7.87 | -10.00 | 4.40 | -10.00 | -19.98 | 258.68 | -5.45 | 168.93 | 0.4669 | 928.0 | 999999 | |
| 3.22 | 6.26 | 1.84 | 3.57 | -22.01 | 258.54 | -5.59 | 169.50 | 0.4978 | 826.8 | 785.9 | |
| 0.00 | 1.70 | 0.00 | 0.98 | -23.06 | 258.16 | -5.96 | 169.25 | 0.5144 | 630.0 | 468.8 | |
| 6.44 | -10.00 | 3.59 | -10.00 | -19.65 | 258.27 | -5.86 | 167.97 | 0.4631 | 865.0 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -15.41 | 258.41 | -5.72 | 165.95 | 0.3975 | -813.0 | -633.3 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -22.33 | 258.07 | -6.06 | 168.77 | 0.5039 | 710.0 | 501.9 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.34 | 258.06 | -6.07 | 166.88 | 0.4438 | 666.0 | 531.9 | |
| 0.45 | 2.32 | 0.25 | 1.28 | -18.04 | 257.82 | -6.31 | 166.20 | 0.4402 | -903.2 | -625.4 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.87 | 257.69 | -6.44 | 165.85 | 0.4381 | -856.0 | -676.6 | |
| 0.00 | 6.08 | 0.00 | 3.36 | -18.25 | 257.42 | -6.71 | 165.50 | 0.4448 | -621.0 | -572.5 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.78 | 257.35 | -6.78 | 165.06 | 0.4380 | -817.0 | -723.8 | |
| 7.06 | -10.00 | 3.94 | -10.00 | -19.39 | 257.18 | -6.95 | 165.68 | 0.4630 | -748.5 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.65 | 257.19 | -6.94 | 164.65 | 0.4367 | -868.0 | -713.6 | |
| 0.00 | 2.86 | 0.00 | 1.59 | -18.62 | 256.93 | -7.20 | 164.71 | 0.4525 | -981.0 | -848.8 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -20.18 | 256.79 | -7.34 | 165.36 | 0.4763 | -699.0 | -689.3 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.45 | 256.85 | -7.28 | 163.80 | 0.4352 | -766.0 | -622.9 | |
| 5.19 | -10.00 | 2.89 | -10.00 | -19.17 | 256.68 | -7.45 | 164.54 | 0.4616 | -1052.6 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.56 | 256.72 | -7.41 | 163.59 | 0.4373 | -782.0 | -600.2 | |
| 3.67 | -10.00 | 2.04 | -10.00 | -18.66 | 256.44 | -7.69 | 163.76 | 0.4551 | -977.1 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.11 | -20.36 | 256.33 | -7.80 | 164.59 | 0.4808 | -853.0 | -611.9 | |
| 0.00 | 5.45 | 0.00 | 3.05 | -19.44 | 256.31 | -7.82 | 163.99 | 0.4673 | -869.0 | -675.6 | |
| 10.73 | -10.00 | 5.98 | -10.00 | -18.97 | 256.23 | -7.90 | 163.55 | 0.4606 | -1002.3 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -19.82 | 256.06 | -8.07 | 163.76 | 0.4739 | -602.0 | -420.9 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -19.21 | 256.00 | -8.13 | 163.24 | 0.4652 | -522.0 | -541.1 | |
| 0.00 | 1.79 | 0.00 | 1.00 | -19.42 | 255.76 | -8.37 | 162.92 | 0.4694 | -736.0 | -563.2 | |
| 0.00 | 1.97 | 0.00 | 1.10 | -19.59 | 255.62 | -8.51 | 162.77 | 0.4725 | -582.0 | -479.8 | |
| 0.00 | 2.24 | 0.00 | 1.26 | -19.77 | 255.16 | -8.97 | 162.01 | 0.4773 | -632.0 | -510.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
