SDO HMI 2011-09-02 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.54 | 62.84 | 10.20 | 38.81 | 18.86 | 299.26 | 35.69 | 292.12 | 0.5982 | -745.6 | -388.0 | |
|
previous
or next observation for the same group /

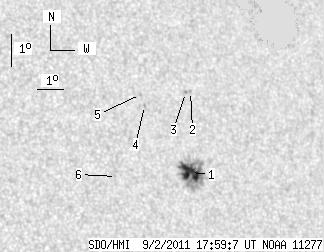

back to the solar disc SDO HMI 2011-09-02 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.54 | 57.93 | 10.20 | 35.77 | 18.69 | 299.31 | 35.74 | 291.82 | 0.5982 | -1044.9 | -419.8 | |
| 0.00 | 0.98 | 0.00 | 0.62 | 21.18 | 299.97 | 36.40 | 295.53 | 0.6154 | -700.0 | -578.2 | |
| 0.00 | 1.25 | 0.00 | 0.78 | 21.16 | 299.77 | 36.19 | 295.59 | 0.6128 | -753.0 | -690.3 | |
| 0.00 | 1.34 | 0.00 | 0.82 | 20.87 | 298.06 | 34.48 | 295.90 | 0.5902 | 593.0 | 478.5 | |
| 0.00 | 0.89 | 0.00 | 0.55 | 21.22 | 297.99 | 34.42 | 296.50 | 0.5909 | 720.0 | 513.7 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 18.76 | 296.46 | 32.89 | 293.10 | 0.5611 | -536.0 | -529.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
